Description

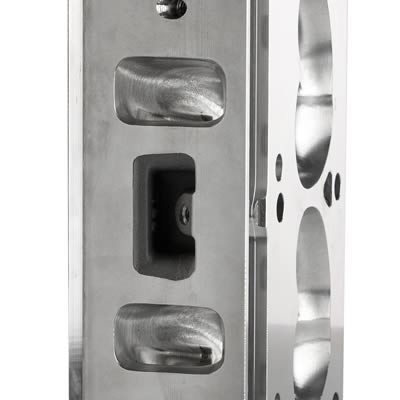

AFR 220cc SBF Renegade 20 Degree Competition Heads are the largest, best-flowing choice to top your small block Ford. These power-producing cylinder heads are born of A356 aluminum castings and feature intake ports, exhaust ports, and combustion chambers that are all 100 percent CNC-ported. Renegades are outfitted with lightweight 8mm, 2.100 in. intake valves and 1.570 in. exhaust valves to move massive amounts of air. They come with either combustion chamber volumes of 58 or 72cc accompanied by 70cc exhaust ports, which are raised .375 in. higher than stock. Plus, AFR's trademark 3/4 in. thick cylinder head deck makes them ideal for heavy nitrous or blower applications. Choose the flow characteristics that can give your Ford the power to win—AFR 220cc SBF Renegade 20 degree competition heads.Brand: Airflow Research (AFR)
Manufacturer's Part Number: 1457
Part Type: Cylinder Heads
Product Line: AFR 220cc SBF Renegade 20 Degree Competition Heads
HP Direct Part Number: AFR-1457
Combustion Chamber Volume (cc): 72
Intake Runner Volume (cc): 220cc
Exhaust Runner Volume (cc): 70cc
Cylinder Head Style: Bare
Cylinder Head Material: Cast aluminum
Intake Port Shape: Rectangular
Intake Valve Diameter (in.): 2.100 in.
CNC-Machined Combustion Chamber: Yes
CNC-Machined Intake Runner: Yes
CNC-Machined Exhaust Runner: Yes
Combustion Chamber Style: Heart
Intake Port Location: Standard
Exhaust Port Shape: Square
Exhaust Port Location: Raised
Intake Valves Included: No
Exhaust Valves Included: No
Exhaust Valve Diameter (in.): 1.570 in.
Valve Springs Included: No
Damper Spring Included: No
Retainers Included: No
Locks Included: No
Valve Stem Seals Included: No
Rocker Arm Studs Included: No
Rocker Arms Included: No
Rocker Arm Nuts Included: No
Guideplates Included: No
Accessory Bolt Holes Drilled: Yes
Intake Valve Angle: 20
Exhaust Valve Angle: 20
Valve Guides Included: Yes
Valve Guide Material: Manganese bronze
Valve Seats Machined: Yes
Valve Seat Machine Style: 5-angle intake/3-angle exhaust
Valve Seat Material: Ductile iron
Cylinder Head Color: Natural
Steam Holes Drilled: No
Oiling Style: Through head
Machined for O-Ring: No
Heat Crossover: No
Remanufactured: No
Quantity: Sold as a pair.
Manufacturer's Part Number: 1457
Part Type: Cylinder Heads
Product Line: AFR 220cc SBF Renegade 20 Degree Competition Heads
HP Direct Part Number: AFR-1457
Combustion Chamber Volume (cc): 72
Intake Runner Volume (cc): 220cc
Exhaust Runner Volume (cc): 70cc
Cylinder Head Style: Bare
Cylinder Head Material: Cast aluminum
Intake Port Shape: Rectangular
Intake Valve Diameter (in.): 2.100 in.
CNC-Machined Combustion Chamber: Yes
CNC-Machined Intake Runner: Yes
CNC-Machined Exhaust Runner: Yes
Combustion Chamber Style: Heart
Intake Port Location: Standard
Exhaust Port Shape: Square
Exhaust Port Location: Raised
Intake Valves Included: No
Exhaust Valves Included: No
Exhaust Valve Diameter (in.): 1.570 in.
Valve Springs Included: No
Damper Spring Included: No
Retainers Included: No
Locks Included: No
Valve Stem Seals Included: No
Rocker Arm Studs Included: No
Rocker Arms Included: No
Rocker Arm Nuts Included: No
Guideplates Included: No
Accessory Bolt Holes Drilled: Yes
Intake Valve Angle: 20
Exhaust Valve Angle: 20
Valve Guides Included: Yes
Valve Guide Material: Manganese bronze
Valve Seats Machined: Yes
Valve Seat Machine Style: 5-angle intake/3-angle exhaust
Valve Seat Material: Ductile iron
Cylinder Head Color: Natural
Steam Holes Drilled: No
Oiling Style: Through head
Machined for O-Ring: No
Heat Crossover: No
Remanufactured: No
Quantity: Sold as a pair.
