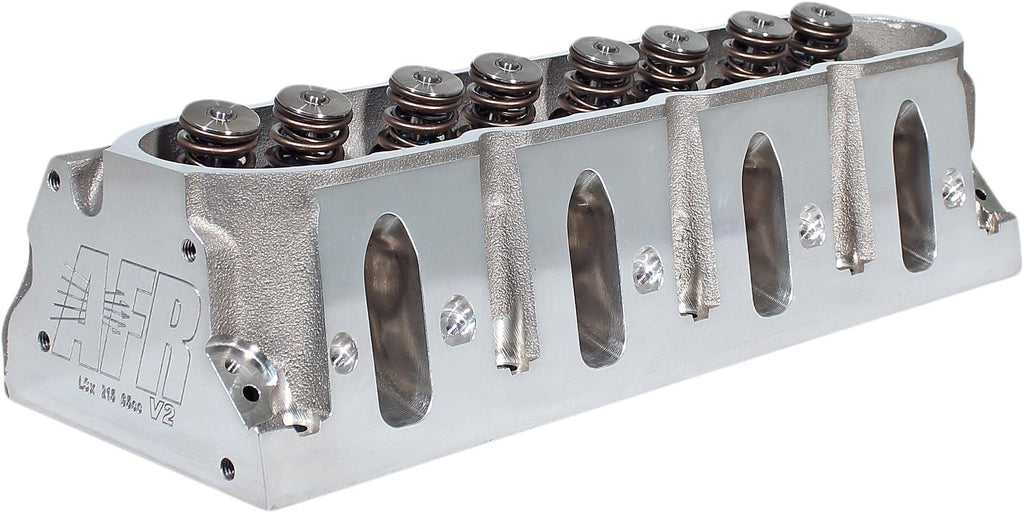

AFR 215cc LSX Mongoose Strip Cylinder Heads 1530

AFR 215cc LSX Mongoose Strip cylinder heads are strong, versatile, and a great match for aggressive applications and large stroker engines where your aim is enhancing street/strip performance. These aluminum heads have 100 percent CNC-ported chambers, intake and exhaust ports, and use A356 aluminum castings. They are equipped with AFR's 3/4 in. thick deck and thicker port and combustion surfaces. These medium sized, high-velocity torque monsters flow 312 cfm at 0.600 in. of lift and can handle up to 408 cu. in. motors operating at or below 6,500 rpm. With a minimum bore diameter of 3.900 in., AFR 215cc LSX Mongoose Strip cylinder heads offer serious velocity and still provide significant airflow to generate over 500 hp at the crank!Brand: Airflow Research (AFR)
Manufacturer's Part Number: 1530
Part Type: Cylinder Heads
Product Line: AFR 215cc LSX Mongoose Strip Cylinder Heads
HP Direct Part Number: AFR-1530
Combustion Chamber Volume (cc): 64
Intake Runner Volume (cc): 215cc
Exhaust Runner Volume (cc): 84cc
Cylinder Head Style: Assembled
Cylinder Head Material: Cast aluminum
Camshaft Style: Hydraulic roller
Intake Port Shape: Cathedral
Intake Valve Diameter (in.): 2.020 in.
CNC-Machined Combustion Chamber: Yes
CNC-Machined Intake Runner: Yes
CNC-Machined Exhaust Runner: Yes
Combustion Chamber Style: Heart
Intake Port Location: Standard
Exhaust Port Shape: Square
Exhaust Port Location: Standard
Spark Plug Style: Angle
Intake Valves Included: Yes
Exhaust Valves Included: Yes
Exhaust Valve Diameter (in.): 1.600 in.
Valve Springs Included: Yes
Maximum Valve Lift (in.): 0.600 in.
Outside Diameter of Outer Spring (in.): 1.290 in.
Damper Spring Included: Yes
Number of Springs Per Valve: Dual
Retainers Included: Yes
Retainer Material: Titanium
Locks Included: Yes
Lock Style: 7 degree
Valve Stem Seals Included: Yes
Rocker Arm Studs Included: No
Rocker Arms Included: No
Rocker Arm Nuts Included: No
Guideplates Included: No
Guideplate Pushrod Size: 3/8 in.
Valve Cover Mounting Style: Centerbolt
Accessory Bolt Holes Drilled: Yes
Valve Guides Included: Yes
Valve Guide Material: Bronze
Valve Seats Machined: Yes
Valve Seat Machine Style: 3-angle
Valve Seat Material: Ductile iron
Cylinder Head Color: Natural
Steam Holes Drilled: No
Oiling Style: Through pushrod
Machined for O-Ring: No
Heat Crossover: Yes
Remanufactured: No
Quantity: Sold as a pair.
Notes: Requires minimum 3.900 in. diameter bore size for intake valve clearance. These cylinder heads do not have provisions for perimeter bolt valve covers.
