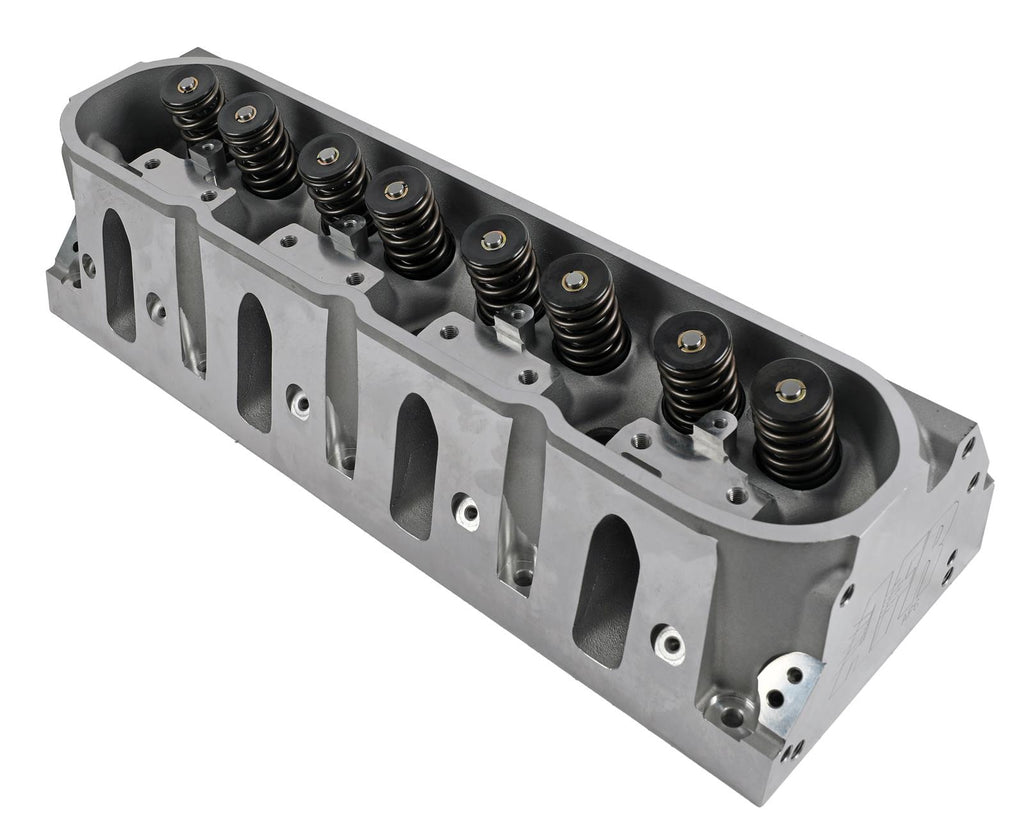

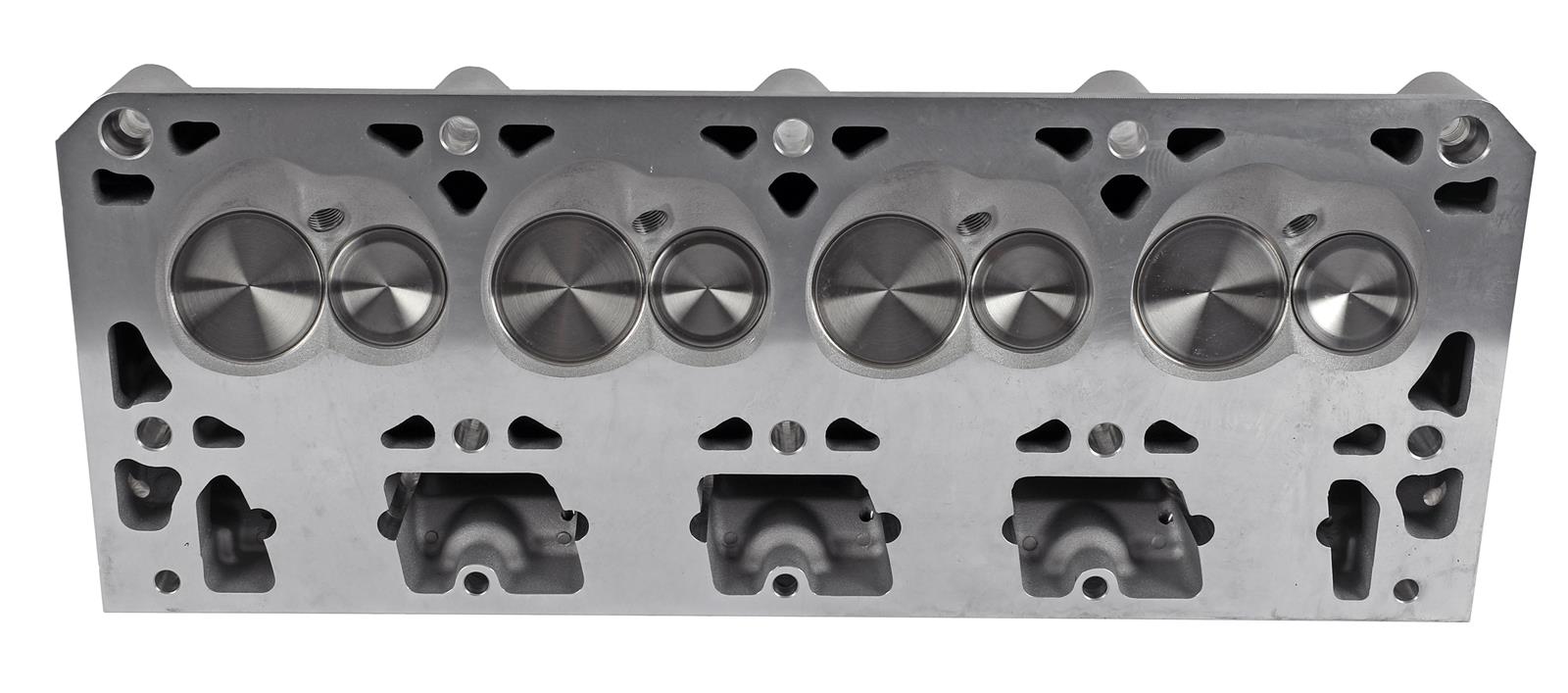

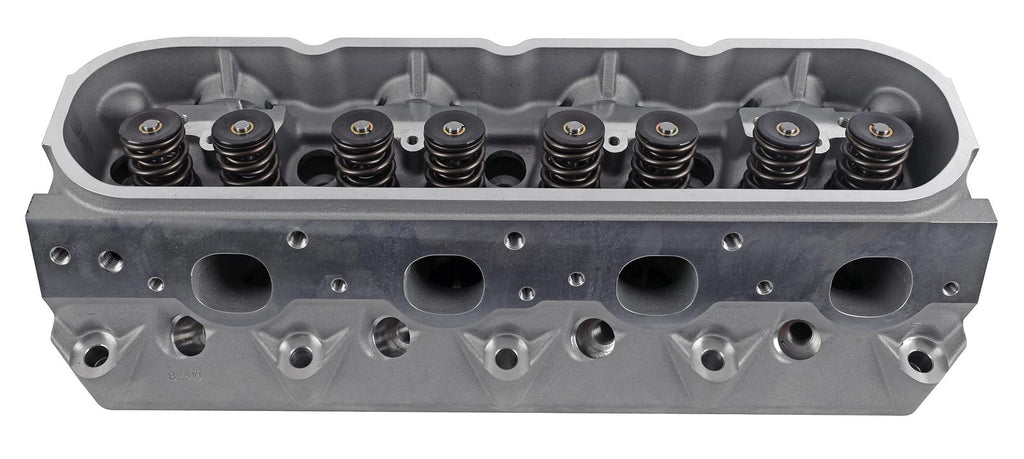

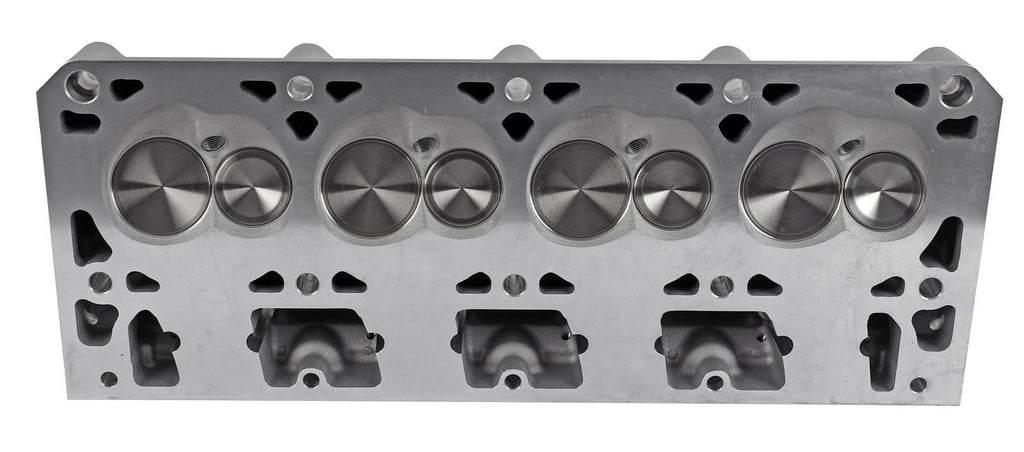

AFR 210cc LS1 Enforcer Cylinder Heads 1501

AFR 210cc LS1/LS2/LS6 Enforcer cylinder heads are available in standard and small bore applications. They feature Permanent Mold "As-Cast" Technology surfaces on the intake runners, exhaust runners, and combustion chambers that allow for extremely accurate and repeatable port location/performance. The budget-friendly heads are perfect for your OEM engine operating below 6,300 rpm. Fully assembled Enforcer models include the identical components found in AFR's higher end CNC-ported cylinder heads—such as PAC Racing springs, Viton ® valve seals, machined bead valve locks (not stamped), hardened spring seats, and one-piece 8mm 21 4N stainless steel valves. The heads are available without any parts for the DIY. Sold as a single piece, two heads are required per engine.Brand: Airflow Research (AFR)
Manufacturer's Part Number: 1501
Part Type: Cylinder Heads
Product Line: AFR 210cc LS1 Enforcer Cylinder Heads
HP Direct Part Number: AFR-1501
Combustion Chamber Volume (cc): 64
Intake Runner Volume (cc): 210cc
Exhaust Runner Volume (cc): 82cc
Cylinder Head Style: Assembled
Cylinder Head Material: Cast aluminum
Camshaft Style: Hydraulic roller
Intake Port Shape: Cathedral
Intake Valve Diameter (in.): 2.020 in.
CNC-Machined Combustion Chamber: No
CNC-Machined Intake Runner: No
CNC-Machined Exhaust Runner: No
Combustion Chamber Style: Heart
Intake Port Location: Standard
Exhaust Port Shape: Oval
Exhaust Port Location: Standard
Spark Plug Style: Angle
Intake Valves Included: Yes
Exhaust Valves Included: Yes
Exhaust Valve Diameter (in.): 1.600 in.
Valve Springs Included: Yes
Maximum Valve Lift (in.): 0.600 in.
Outside Diameter of Outer Spring (in.): 1.290 in.
Damper Spring Included: Yes
Number of Springs Per Valve: Dual
Retainers Included: Yes
Retainer Material: Chromoly steel
Locks Included: Yes
Lock Style: 7 degree
Valve Stem Seals Included: Yes
Valve Stem Seal Style: Positive stop
Rocker Arm Studs Included: No
Rocker Arms Included: No
Rocker Arm Nuts Included: No
Guideplates Included: No
Valve Cover Mounting Style: Centerbolt
Accessory Bolt Holes Drilled: Yes
Intake Valve Angle: 15
Exhaust Valve Angle: 15
Valve Guides Included: Yes
Valve Guide Material: Bronze
Valve Seats Machined: Yes
Valve Seat Machine Style: 3-angle
Valve Seat Material: Ductile iron
Cylinder Head Color: Natural
Finish: Natural
Steam Holes Drilled: No
Oiling Style: Through pushrod
Machined for O-Ring: No
Heat Crossover: No
Remanufactured: No
Quantity: Sold individually.
