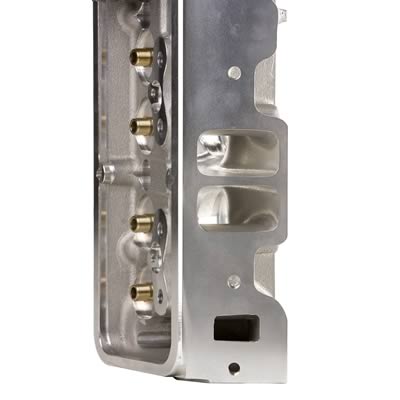

AFR 195cc SBC Eliminator Competition Heads 1095NP

AFR 195cc SBC Eliminator competition heads are fully CNC-machined (combustion chamber, intake, and exhaust ports) and available in your choice of straight or angled plug versions. These heads feature a 75cc or 65cc combustion chamber with a 64cc exhaust port with competition porting and a 3/4 in. thick head deck (ideal for nitrous or blower applications). Standard valves are lightweight 8mm, 2.050 in. intakes (competition versions are 2.080 in.) and 1.600 in. exhausts with AFR's hardened ductile iron interlocking valve seats. The valve springs included are intended for use on roller camshafts. The exceptional flow characteristics of the AFR 195cc Eliminators, a 23 degree valve angle, and standard valve spacing make them the perfect competition heads for 350 to 400 c.i.d. engines in the 2,000 to 6,500 rpm operating range. They carry CARB #D-250-2 when used on 1969-94 applications with the heat riser. Order the bare or assembled model recommended for your year/make and engine family.Brand: Airflow Research (AFR)
Manufacturer's Part Number: 1095NP
Part Type: Cylinder Heads
Product Line: AFR 195cc SBC Eliminator Competition Heads
HP Direct Part Number: AFR-1095NP
Combustion Chamber Volume (cc): 65
Intake Runner Volume (cc): 195cc
Exhaust Runner Volume (cc): 64cc
Cylinder Head Style: Bare
Cylinder Head Material: Cast aluminum
Intake Port Shape: Rectangular
Intake Valve Diameter (in.): 2.080 in.
CNC-Machined Combustion Chamber: Yes
CNC-Machined Intake Runner: Yes
CNC-Machined Exhaust Runner: Yes
Combustion Chamber Style: Heart
Intake Port Location: Standard
Exhaust Port Shape: Square
Exhaust Port Location: Raised
Spark Plug Style: Angle
Intake Valves Included: No
Exhaust Valves Included: No
Exhaust Valve Diameter (in.): 1.600 in.
Valve Springs Included: No
Damper Spring Included: No
Retainers Included: No
Locks Included: No
Valve Stem Seals Included: No
Rocker Arm Studs Included: No
Rocker Arms Included: No
Rocker Arm Nuts Included: No
Guideplates Included: No
Valve Cover Mounting Style: Perimeter bolt
Accessory Bolt Holes Drilled: Yes
Intake Valve Angle: 23
Exhaust Valve Angle: 23
Valve Guides Included: Yes
Valve Guide Material: Bronze
Valve Seats Machined: Yes
Valve Seat Machine Style: 3-angle
Valve Seat Material: Ductile iron
Cylinder Head Color: Natural
Steam Holes Drilled: No
Oiling Style: Through pushrod
Machined for O-Ring: No
Heat Crossover: Yes
Remanufactured: No
Quantity: Sold as a pair.
Notes: These cylinder heads are a L98 based geometry. Not compatible with self-aligning rocker arms. Exhaust port is raised 0.100 in. over stock.
