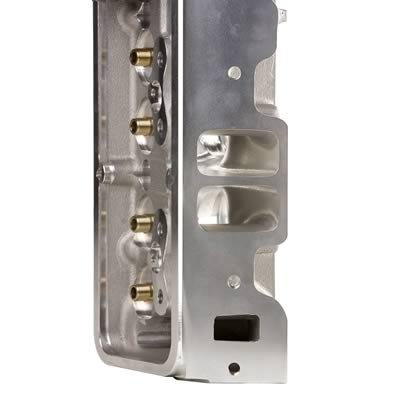

AFR 180cc SBC Eliminator Street Heads 0912NP

AFR 180cc SBC Eliminator street heads are available in your choice of straight or L98 angle plug versions. These cylinder heads feature a 75cc or 65cc combustion chamber with a 64cc exhaust port and a 3/4 in. thick head deck (ideal for nitrous or blower applications). Standard valves are lightweight, 8mm, and have a 2.020 in. intake and 1.600 in. exhaust with AFR's hardened ductile iron interlocking valve seats. The valve springs included are intended for use on roller camshafts. These heads' exceptional flow characteristics, 23 degree valve angle, and standard valve spacing make them the perfect street heads for 327 to 350 c.i.d. engines in the idle to 5,500 rpm operating range (higher rpm ranges are possible, depending on the combination of parts). Eliminator cylinder heads carry CARB E.O. #D-250-2 when used on 1969-94 applications with the heat riser. They're also available for your 1987 and later engines with centerbolt valve covers and two center intake bolts at 72 degree angles; Vortec-style cylinder heads are available, too. Their dual valve cover bolt pattern is standard and their exhaust port is raised .100 over GM L98 cylinder heads.Brand: Airflow Research (AFR)
Manufacturer's Part Number: 0912NP
Part Type: Cylinder Heads
Product Line: AFR 180cc SBC Eliminator Street Heads
HP Direct Part Number: AFR-0912NP
Combustion Chamber Volume (cc): 65
Intake Runner Volume (cc): 190cc
Exhaust Runner Volume (cc): 64cc
Cylinder Head Style: Bare
Cylinder Head Material: Cast aluminum
Intake Port Shape: Rectangular
Intake Valve Diameter (in.): 2.020 in.
CNC-Machined Combustion Chamber: Yes
CNC-Machined Intake Runner: Yes
CNC-Machined Exhaust Runner: Yes
Combustion Chamber Style: Heart
Intake Port Location: Standard
Exhaust Port Shape: Square
Exhaust Port Location: Raised
Spark Plug Style: Straight
Intake Valves Included: No
Exhaust Valves Included: No
Exhaust Valve Diameter (in.): 1.600 in.
Valve Springs Included: No
Damper Spring Included: No
Retainers Included: No
Locks Included: No
Valve Stem Seals Included: No
Rocker Arm Studs Included: No
Rocker Arms Included: No
Rocker Arm Nuts Included: No
Guideplates Included: No
Valve Cover Mounting Style: Center and perimeter bolt
Accessory Bolt Holes Drilled: Yes
Intake Valve Angle: 23
Exhaust Valve Angle: 23
Valve Guides Included: Yes
Valve Guide Material: Bronze
Valve Seats Machined: Yes
Valve Seat Machine Style: 3-angle
Valve Seat Material: Ductile iron
Cylinder Head Color: Natural
Steam Holes Drilled: No
Oiling Style: Through pushrod
Machined for O-Ring: No
Heat Crossover: No
Remanufactured: No
Quantity: Sold as a pair.
Notes: These cylinder heads are an L98-based geometry. Two center manifold bolts at 72 degree angle for 1987 and later engines. Not compatible with self-aligning rocker arms. Exhaust port is raised 0.100 in. over stock. They are not ported.
