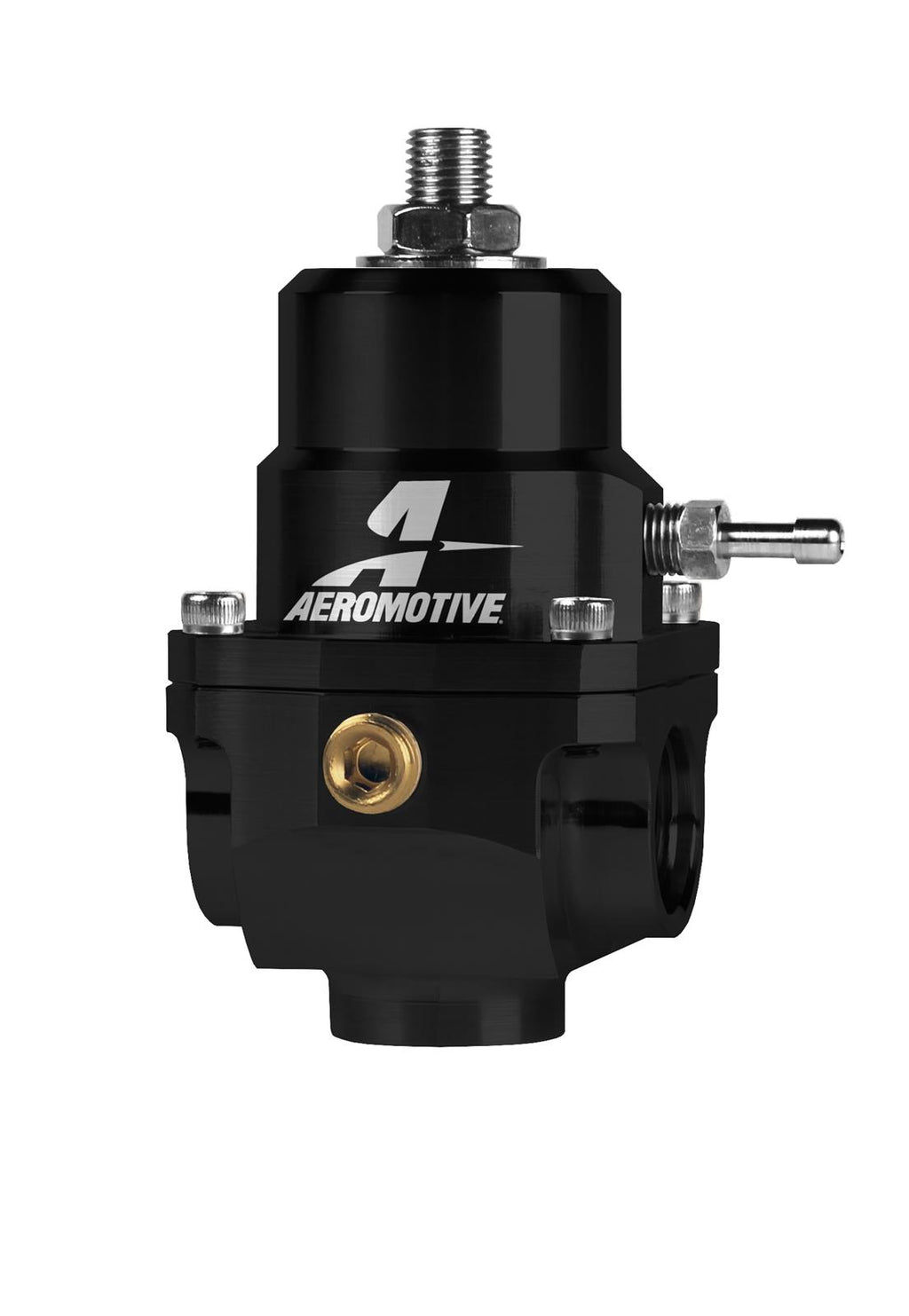

Aeromotive X1 Series Fuel Pressure Regulators 13304

From carbureted to EFI pressures, whether naturally aspirated or employing forced induction, the Aeromotive X1 Series fuel pressure regulators span the entire range, providing dependable fuel pressure regulation. While versatility is one of the X1 regulators' greatest assets, it is far from the only design feature. They also utilize larger inlet/outlet and return ports to accommodate increased flow. Aeromotive X1 Series fuel pressure regulators provide flexible performance that grows along with your fuel system!Brand: Aeromotive
Manufacturer's Part Number: 13304
Part Type: Fuel Pressure Regulators
Product Line: Aeromotive X1 Series Fuel Pressure Regulators
HP Direct Part Number: AEI-13304
UPC: 00684980006544
Regulator Pressure (psi): 3-20
Regulator Style: Return
Regulator Location: Inline
Boost/Vacuum Reference Port: Yes
Boost/Vacuum Rise Ratio: 1:1
Gauge Port: Yes
Inlet Quantity: 1
Regulator Inlet Size: -8 AN
Inlet Attachment: Female straight cut O-ring
Outlet Quantity: 1
Regulator Outlet Size: -8 AN
Outlet Attachment: Female straight cut O-ring
Return Fitting Size: -8 AN
Return Attachment: Female straight cut O-ring
Fittings Included: No
Regulator Material: Aluminum
Regulator Color: Black
Rebuildable: Yes
Mounting Bracket Included: No
Remanufactured: No
Quantity: Sold individually.
Notes: 0.313 in. seat.
