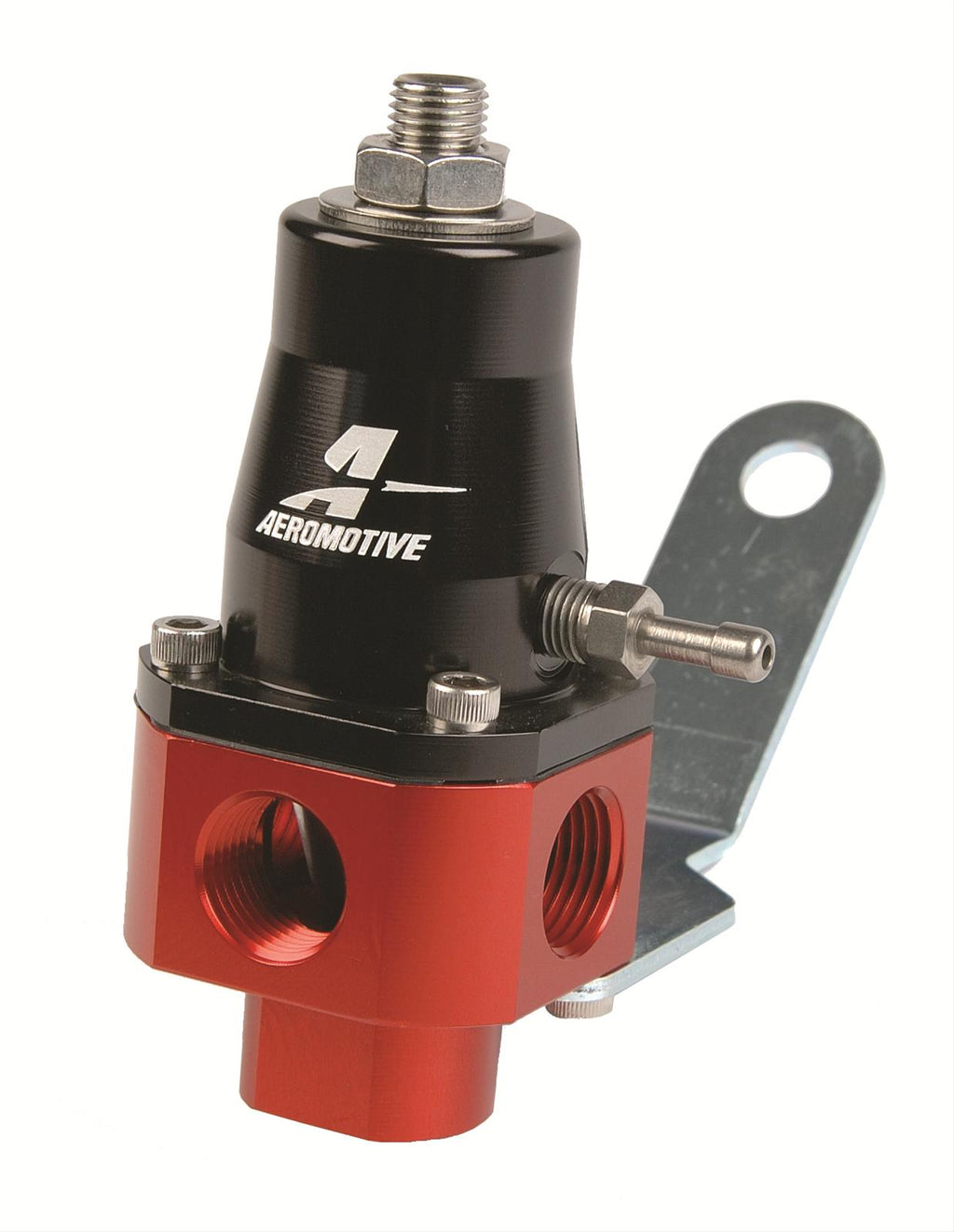

Aeromotive Universal Bypass Regulators 13301

Aeromotive universal bypass fuel pressure regulators are dual purpose—for use with fuel systems in street or track applications. They feature adjustable base pressure and are ideal for vehicles/systems where superior flow and pressure control are desired. The regulators are available in different styles and pressure ranges, and for fuels such as gasoline, diesel, and flex.Brand: Aeromotive
Manufacturer's Part Number: 13301
Part Type: Fuel Pressure Regulators
Product Line: Aeromotive Universal Bypass Regulators
HP Direct Part Number: AEI-13301
UPC: 00684980000214
Regulator Pressure (psi): 3-65
Regulator Style: Return
Regulator Location: Inline
Boost/Vacuum Reference Port: Yes
Boost/Vacuum Rise Ratio: 1:1
Gauge Port: No
Inlet Quantity: 1
Regulator Inlet Size: 3/8 in. NPT
Inlet Attachment: Female threads
Outlet Quantity: 3
Regulator Outlet Size: 3/8 in. NPT
Outlet Attachment: Female threads
Return Fitting Size: 3/8 in. NPT
Return Attachment: Female threads
Fittings Included: No
Regulator Material: Aluminum
Regulator Color: Red
Rebuildable: Yes
Mounting Bracket Included: Yes
Remanufactured: No
Quantity: Sold individually.
Notes: The installed low pressure spring will adjust fuel pressure from 3-20 psi. The included high pressure spring must be installed to adjust fuel pressure from 20-65 psi.
