Aeromotive True Variable Speed Brushless Spur Pump Fuel Cells 18649

Experience ground shaking performance with the advanced technology of the Aeromotive true variable-speed brushless spur pump fuel cells. The Aeromotive true variable-speed controller offers the advantages of built-in pump speed control via a dedicated 0-5 V analog DC input signal. The variable-speed controller capitalizes on Aeromotive's existing brushless technology by reducing fuel flow during low engine demand and decreasing an already low current draw, therefore minimizing both motor heat the introduction of environmental via reduced fuel recycling.

Features and benefits:

* E85 compatible, reduce max FWHP by 30 percent
* Lighter than the traditional external mount pumps
* Reduced current draw at higher, EFI pressures
* Extended service life in methanol and ethanol

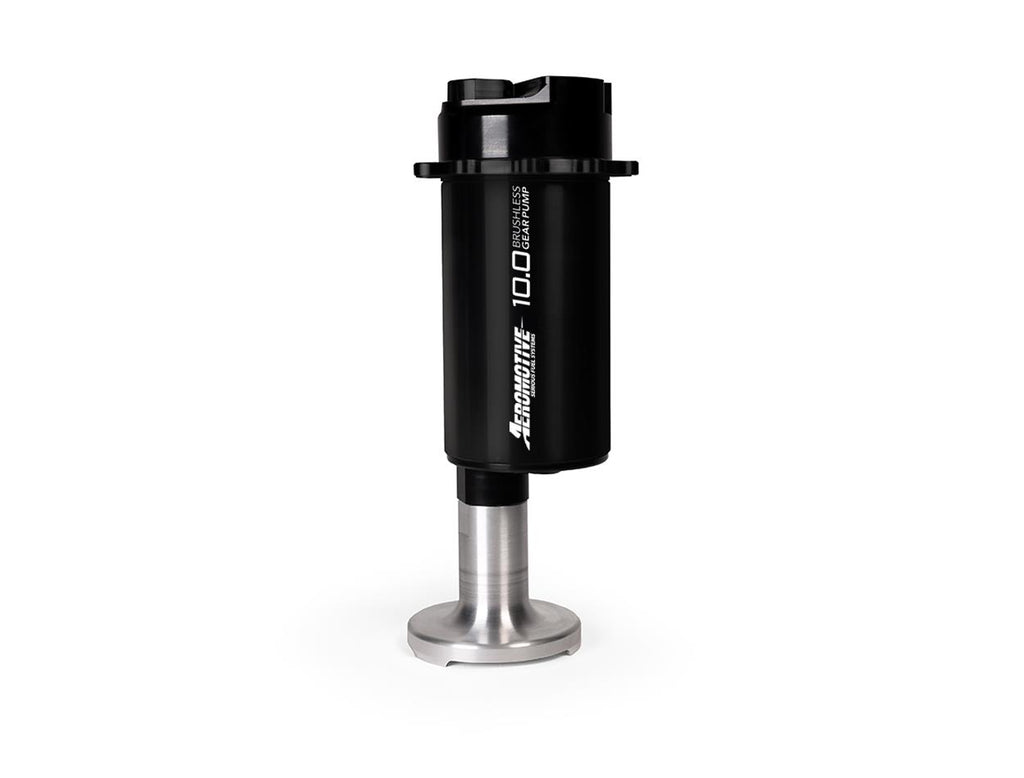

* New integral spur-gear pumping mechanism
* 60 psi continuous operating pressure and up to 100 psi peak pressure, base plus boost
* Integral, external brushless controller for clean installation, cooler fuel, and enhanced reliability
* ORB -12 inlet and ORB -10 outlet ports
* Requires straight 12-VDC to 16-VDC power supply
* Not compatible with pulse modulated systems or fuel pump speed controllers

Supports fuel injected engines:

– up to 6,900 FWHP on Gas—naturally aspirated
– up to 4,900 FWHP on Gas—forced air induction
– up to 4,830 FWHP on E85—naturally aspirated
– up to 3,430 FWHP on E85—forced air induction
– up to 2,415 FWHP on Methanol—naturally aspirated
– up to 1,715 FWHP on Methanol—forced air induction

Supports carbureted engines:

– up to 7,600 FWHP on Gas—naturally aspirated
– up to 5,500 FWHP on Gas—forced air induction
– up to 5,300 FWHP on E85—naturally aspirated
– up to 3,850 FWHP on E85—forced air induction
– up to 2,650 FWHP on Methanol—naturally aspirated
– up to 1,925 FWHP on Methanol—forced air induction

Note: This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.Brand: Aeromotive
Manufacturer's Part Number: 18649
Part Type: Fuel Cells
Product Line: Aeromotive True Variable Speed Brushless Spur Pump Fuel Cells
HP Direct Part Number: AEI-18649
UPC: 684980011852

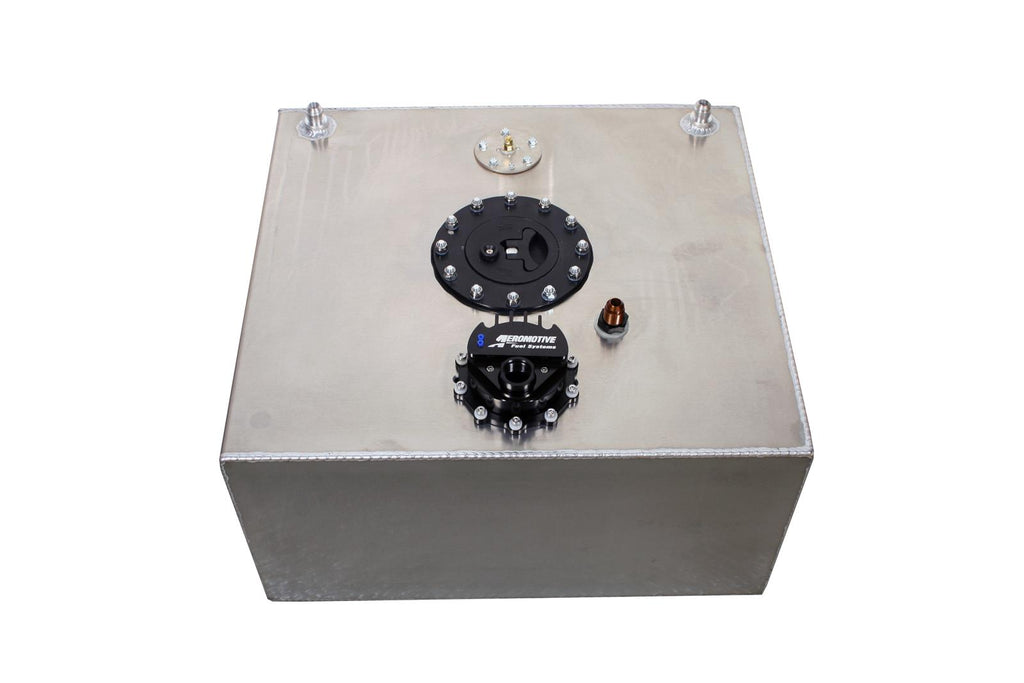

Capacity: 15 gallons
Foam: No
Baffled: No
Fuel Cell Material: Aluminum
Fuel Pump Included: Yes
Flow Rate: 10.0 gpm
Sending Unit Included: No
Length (in.): 18.000 in.
Width (in.): 20.000 in.
Height (in.): 10.000 in.
Fuel Cell Color: Natural
Outlet Fitting Quantity: Two
Outlet Fitting Size: -10 AN O-ring
Vent Fitting Size: -8 AN
Return Fitting Size: -8 AN
Sump: No
Quantity: Sold as a kit.
