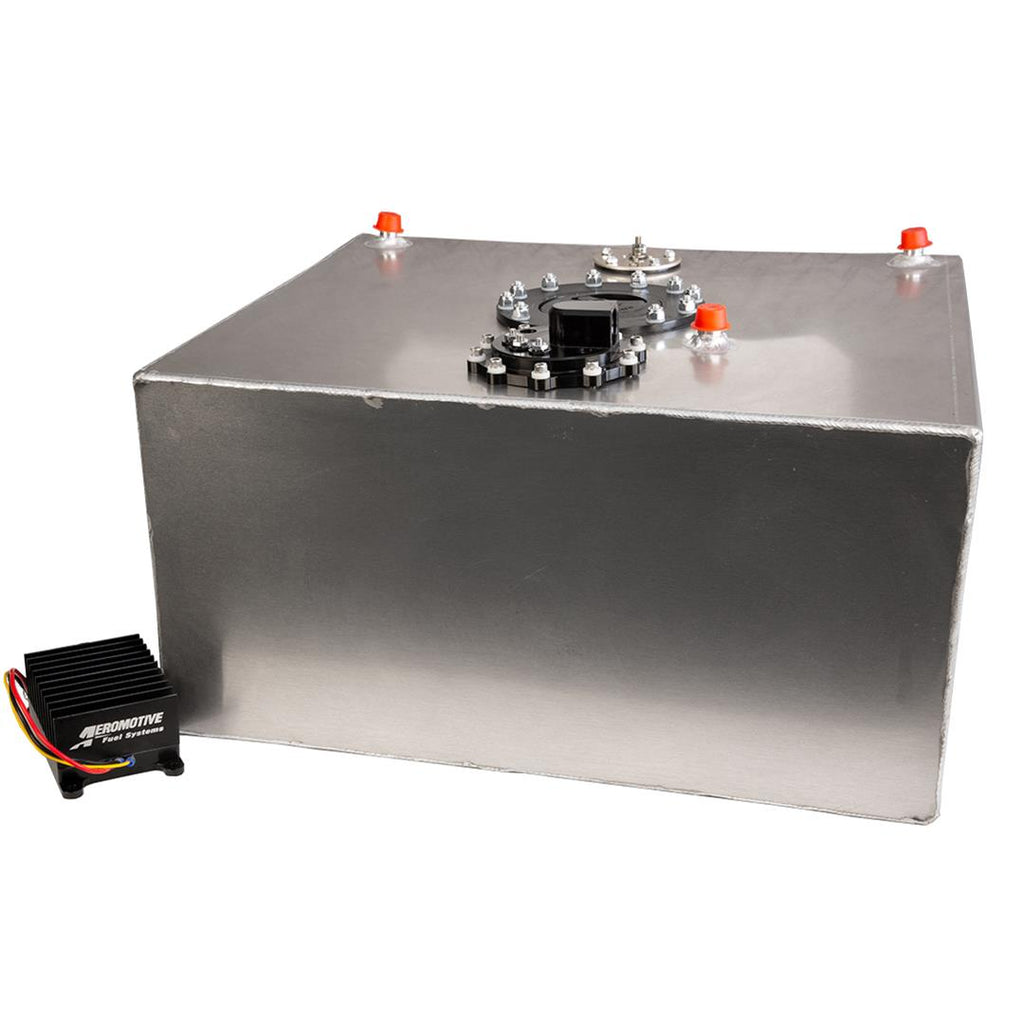

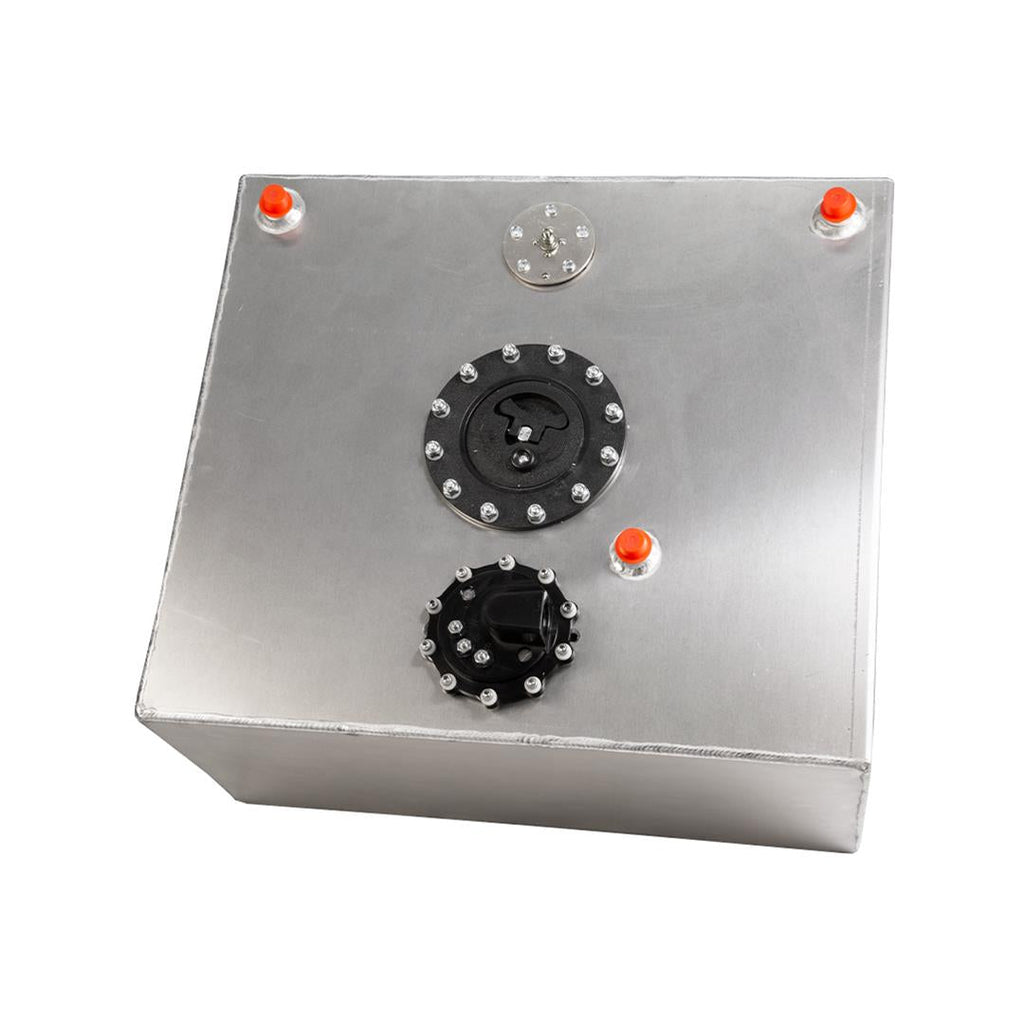

Aeromotive True Variable Speed Brushless Eliminator Stealth Fuel Cells 19308

Available in 6, 15, or 20 gallon capacities, Aeromotive brushless 90-degree Eliminator Stealth fuel cells with True Variable Speed controller are baffled to control slosh and includes ORB-10 outlet, -08 AN return and -08 AN rollover protected vent. The 90-degree pump outlet and remote TVS offer a low profile. Aeromotive True Variable Speed Brushless Eliminator Stealth fuel cells are intended for closed course competition only.

True Variable Speed controller offers the advantages of built-in pump speed control via a dedicated 0 to 5 V analog DC input signal. The controller capitalizes on Aeromotive's existing brushless technology by reducing fuel flow during low engine demand and decreasing an already low current draw, therefore minimizing both motor heat the introduction of environmental via reduced fuel recycling.

Features of brushless Eliminator pump:

* Lighter and quieter than traditional Eliminator
* Reduced current draw at higher, EFI pressures
* Extended service life in methanol and ethanol
* Integral, external brushless controller for a clean installation, cooler fuel, and enhanced reliability

Brand: Aeromotive
Manufacturer's Part Number: 19308
Part Type: Fuel Cells
Product Line: Aeromotive True Variable Speed Brushless Eliminator Stealth Fuel Cells
HP Direct Part Number: AEI-19308
UPC: 684980012637
Capacity: 15 gallons
Foam: No
Baffled: Yes
Fuel Cell Material: Aluminum
Fuel Pump Included: Yes
Flow Rate: 221 gph/836 lph
Sending Unit Included: Yes
Sender Ohm Range: 0 ohms empty, 90 ohms full
Length (in.): 18.000 in.
Width (in.): 20.000 in.
Height (in.): 10.000 in.
Fuel Cell Color: Natural
Outlet Fitting Quantity: One
Outlet Fitting Size: -10 AN O-ring
Vent Fitting Size: -8 AN
Return Fitting Size: -8 AN
Tip Over Valve Size: -8 AN
Sump: No
Quantity: Sold as a kit.
Notes: Fuel pump flow rates are based on carbureted applications. Fuel injection flow rates are 170 gph/643 lph at 45 psi.
