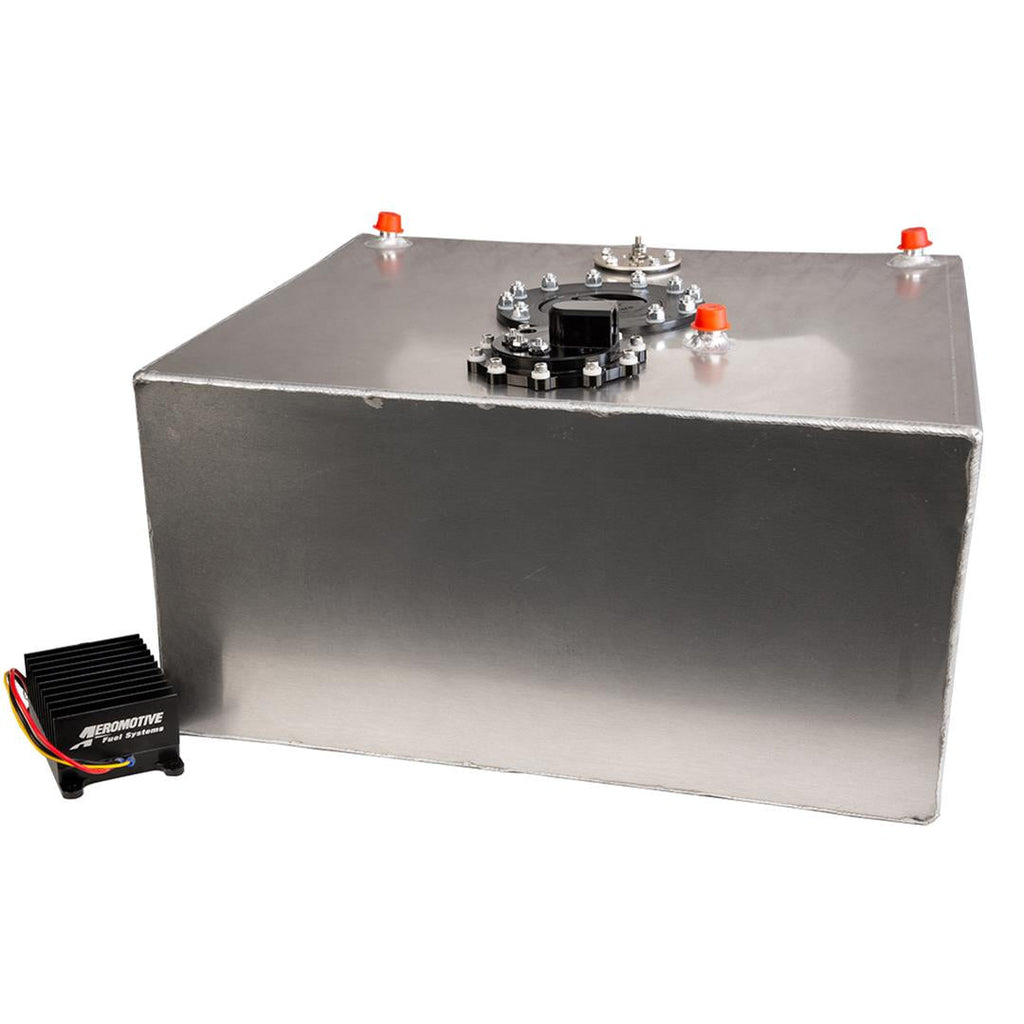

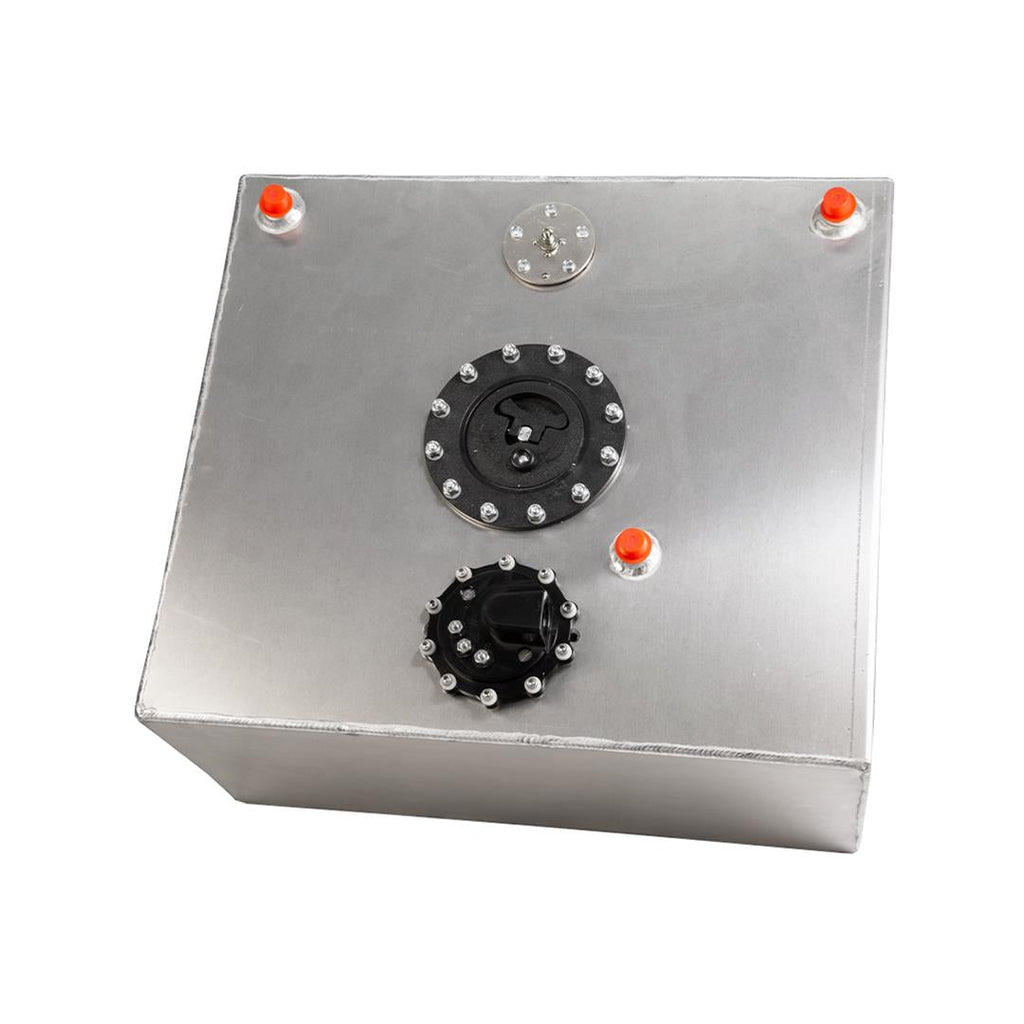

Aeromotive True Variable Speed Brushless A1000 Stealth Fuel Cells 19307

Available in 6, 15, or 20 gallon capacities, Aeromotive brushless 90-degree A1000 Stealth fuel cells with True Variable Speed controller are baffled to control slosh and includes ORB-10 outlet, -08 AN return and -08 AN rollover protected vent. The 90-degree pump outlet and remote TVS offer a low profile. Aeromotive True Variable Speed Brushless A1000 Stealth fuel cells are intended for closed course competition only.

True Variable Speed controller offers the advantages of built-in pump speed control via a dedicated 0 to 5 V analog DC input signal. The controller capitalizes on Aeromotive's existing brushless technology by reducing fuel flow during low engine demand and decreasing an already low current draw, therefore minimizing both motor heat the introduction of environmental via reduced fuel recycling.

Features of brushless A1000 pump:

* Lighter and quieter than traditional A1000
* Reduced current draw at higher, EFI pressures
* Extended service life in methanol and ethanol
* Integral, external brushless controller for a clean installation, cooler fuel, and enhanced reliability
Brand: Aeromotive
Manufacturer's Part Number: 19307
Part Type: Fuel Cells
Product Line: Aeromotive True Variable Speed Brushless A1000 Stealth Fuel Cells
HP Direct Part Number: AEI-19307
UPC: 684980012620
Capacity: 15 gallons
Foam: No
Baffled: Yes
Fuel Cell Material: Aluminum
Fuel Pump Included: Yes
Flow Rate: 153 gph/579 lph
Sending Unit Included: Yes
Sender Ohm Range: 0 ohms empty, 90 ohms full
Length (in.): 18.000 in.
Width (in.): 20.000 in.
Height (in.): 10.000 in.
Fuel Cell Color: Natural
Outlet Fitting Quantity: One
Outlet Fitting Size: -10 AN O-ring
Vent Fitting Size: -8 AN
Return Fitting Size: -8 AN
Tip Over Valve Size: -8 AN
Sump: No
Quantity: Sold as a kit.
Notes: Fuel pump flow rates are based on carbureted applications. Fuel injection flow rates are 119 gph/450 lph at 45 psi.
