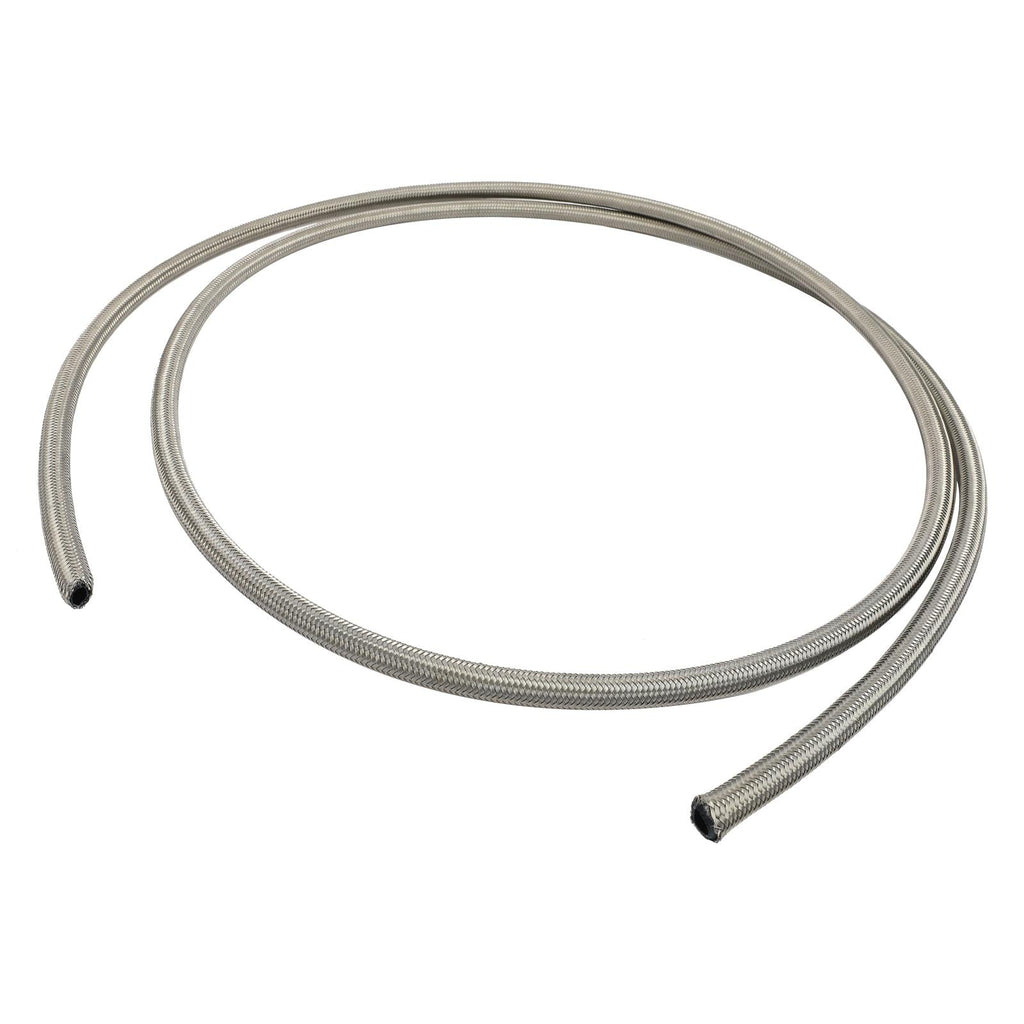

Aeromotive PTFE Stainless Braided Fuel Lines 15311

Aeromotive PTFE stainless braided fuel lines are ideal for street and racing applications where E85, gasoline, or methanol compatible fuel hose is needed. The stainless outer braid provides impact and abrasion resistance to protect the PTFE inner liner. These liners are specially carbonized for conductivity, which is critical for fuel handling.

The fuel lines provide outstanding flow capacity; they're smaller on the O.D. for the same I.D. of a comparable rubber braided line for easier routing in tight spaces. The lines deliver extended service life in any fuel, as they will not harden, micro-fracture, or permeate fuel vapor (vapor-walk) like normal rubber braided line—minimizing fuel smell in the vehicle storage area. Choose the length and AN diameter needed for your application.

Brand: Aeromotive
Manufacturer's Part Number: 15311
Part Type: AN Hose
Product Line: Aeromotive PTFE Stainless Braided Fuel Lines
HP Direct Part Number: AEI-15311
UPC: 684980010558
Hose Size: -8 AN
PTFE Lined: Yes
Hose Length (ft.): 16.00
Outer Material: Braided stainless steel
Hose Color: Natural
Hose Material: PTFE
Hose Inside Diameter (in.): 0.405 in.
Maximum Operating Pressure (psi): 2,000 psi
Quantity: Sold individually.
Notes: Hose has a burst pressure of 10,000 psi.
Recommended Hose Ends: Aeromotive PTFE
