Aeromotive Phantom Direct-Fit Fuel Pumps 18312

Aeromotive Phantom direct-fit fuel pumps are drop-in systems engineered for your late model truck. They're available in five pump sizes, from single 340 lph to triple 450 lph. Designed to work with plastic fuel tanks, Phantom Series pumps cover a range of GM truck models spanning decades. The 1999-2004 models used a smaller factory fuel sending unit than the later 2005-17 models. The smaller size unit limits the pump configurations that this tank will accommodate. Aeromotive Phantom direct-fit fuel pump systems are also compatible with different tank depths.Brand: Aeromotive
Manufacturer's Part Number: 18312
Part Type: Fuel Pumps
Product Line: Aeromotive Phantom Direct-Fit Fuel Pumps
HP Direct Part Number: AEI-18312
UPC: 684980011425
Fuel Pump Type: Electric In-tank
Flow Rate: 90 gph/340 lph
Fuel Pressure (psi): 90 psi
Fuel Pump Voltage: 12 V
Fuel Pressure Regulator Included: No
Sending Unit Included: No
Fuel Pump Outlet Size: -6 AN
Outlet Attachment: Female straight cut O-ring
Gasket Included: No
Wiring Harness Included: No
Mounting Bracket Included: No
Mounting Hardware Included: No
Pulley Included: No
Remanufactured: No
Quantity: Sold individually.

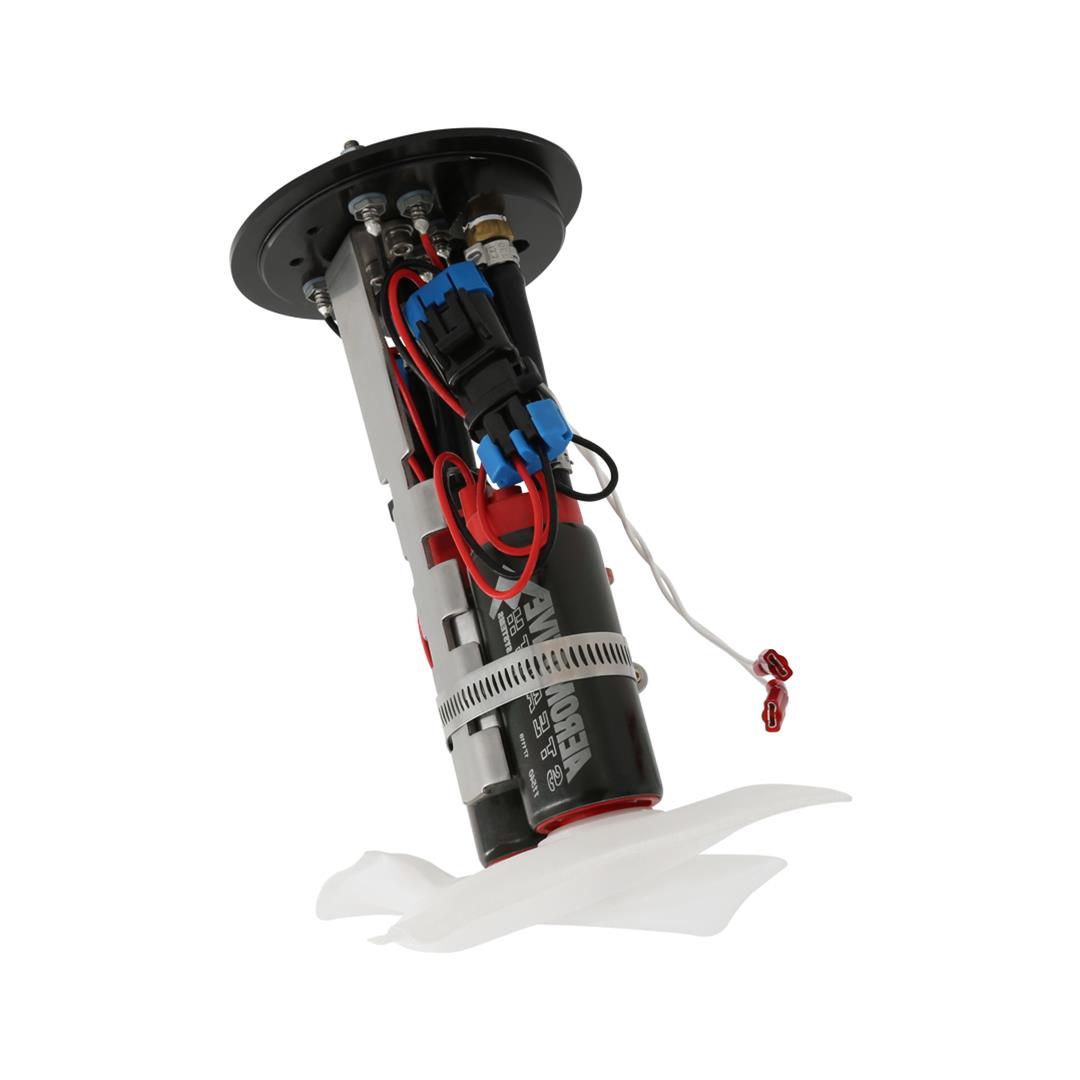

Notes: Fuel pump assembly features single 340 pump. Installs in factory fuel pump module location. Reuses factory gasket and lock ring.
