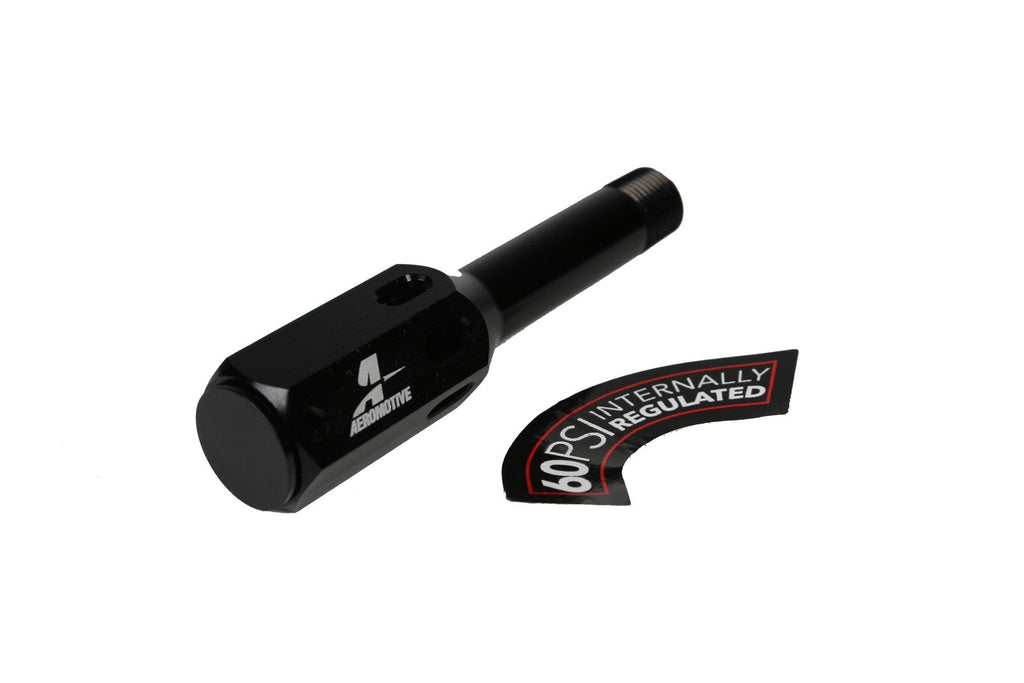

Aeromotive Phantom Bypass Valves 18703

Aeromotive Phantom bypass valves are internally regulated, offered in 15 and 60 psi models, and designed for use with their Phantom systems. The design intent is pump pressure regulation internal to the fuel tank, which eliminates the need for downstream pressure regulation. They feature aluminum construction with an anodized finish and include a sticker label designating the psi rating. A remote-mount rollover valve should be used in conjunction with these valves and mounted vertically as high or higher than the filler tube. Retain optimal fuel supply for your ride with an assist from Aeromotive Phantom bypass valves.

More product features, items, and specifications include:

* Gasket (1/2 in. thick)
* Nitrile O-ring for AN-06 port
* Nylon-locking stainless steel No.10-24 nuts (10)
* Locking No.10 nylon washers (10)
* Plug (ORB-06)
* Compatible with pump gas, race gas, E85, and alcohol/ethanol
* Recommended tools include a 5/8 in. straight or adjustable wrench, a 3/4 in. straight or adjustable wrench, 3/8 in. socket and ratchet, PTFE tape or thread sealant, and O-ring lubricant
* Detailed instructions with imagesBrand: Aeromotive
Manufacturer's Part Number: 18703
Part Type: Fuel Pump Components
Product Line: Aeromotive Phantom Bypass Valves
HP Direct Part Number: AEI-18703
UPC: 00684980008821
Fuel Pump Component Type: Bypass valve
Quantity: Sold individually.
Notes: 60 psi bypass valve.
