Aeromotive Phantom Apex Fuel Pumps 18705

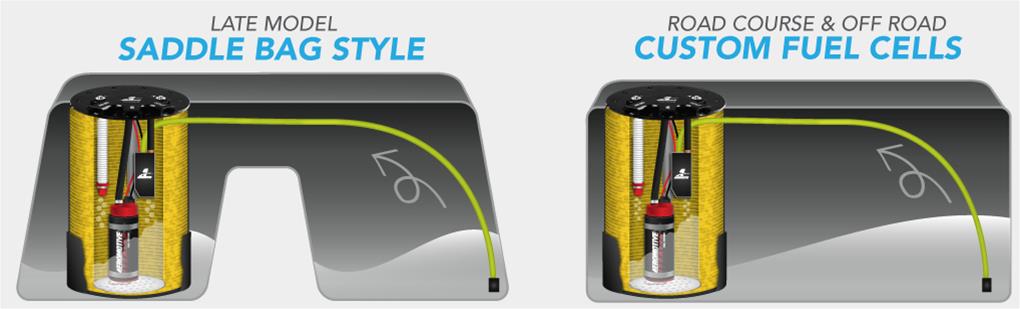

Aeromotive Phantom Apex in-tank fuel pumps open the door to OEM convenience—but with high-horsepower pump flow rates that only Aeromotive pumps can provide. These gasoline, E85 type fuel pumps utilize an advanced, patent-pending jet-siphon technology that provides a constant supply of cool fuel to the Phantom bladder, allowing the system to dominate in extreme applications. From extreme cornering loads to extreme off-angle vehicle environments, these pumps maintain fuel supply to the Phantom pump and bladder assembly—even when fuel tank levels are low and fuel is moving away from the pump location. The pumps are available in different flow rates.

Additional details:

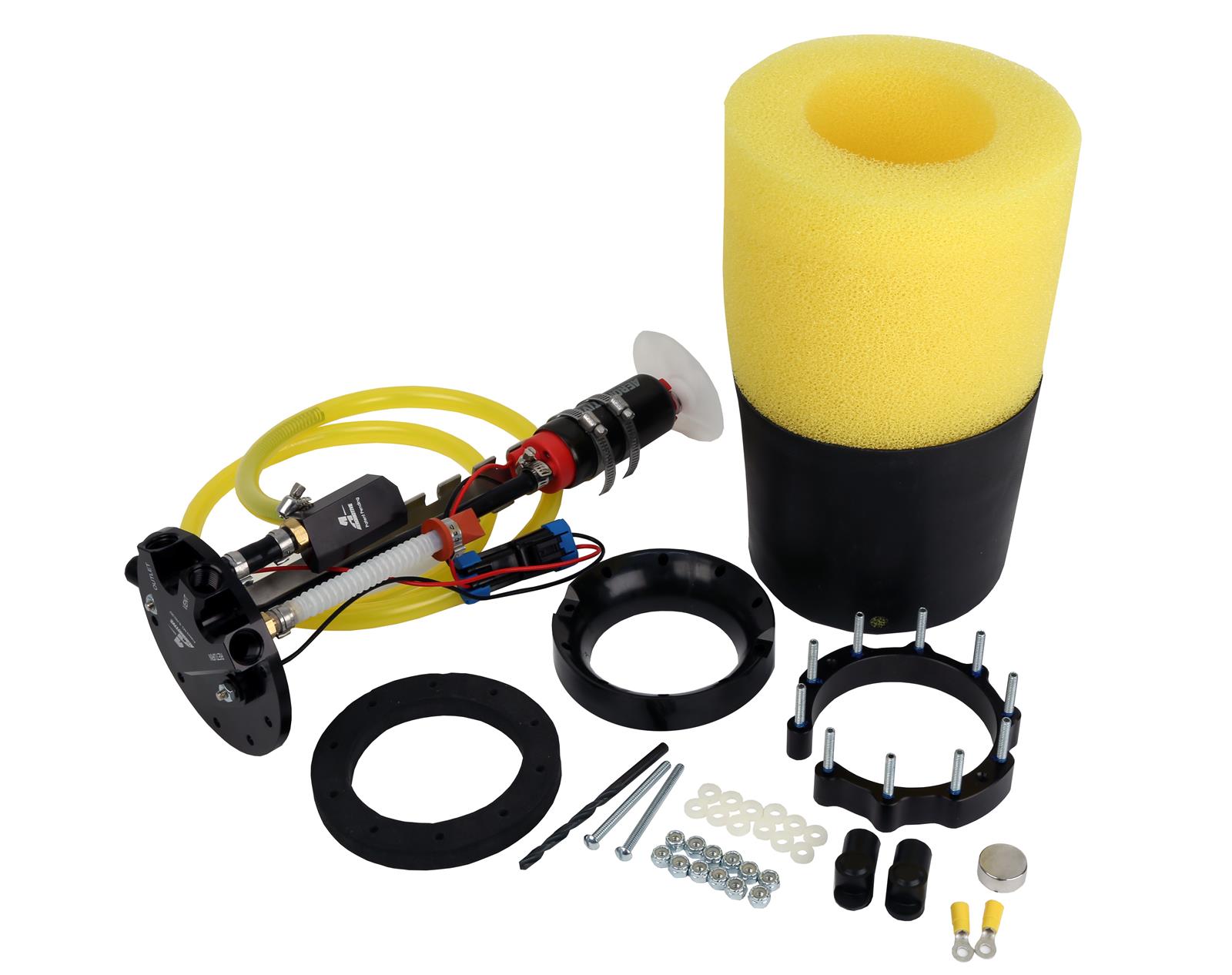

* Kits include 4 ft. of gasoline and ethanol-rated suction line, with a controlled pickup that maintains 1/8 in. clearance to the tank bottom
* Pickup line can be secured to the intended pickup point within the tank via a 2-magnet system (compatible with any tank material: poly-plastic, aluminum, stainless steel, and mild steel)
* Jet-siphon P/N 187056 is also sold separately (for use with your existing Phantom fuel pump)
Brand: Aeromotive
Manufacturer's Part Number: 18705
Part Type: Fuel Pumps
Product Line: Aeromotive Phantom Apex Fuel Pumps
HP Direct Part Number: AEI-18705
UPC: 00684980009903
Fuel Pump Type: Electric In-tank
Flow Rate: 119 gph/450 lph
Fuel Pressure (psi): 90 psi
Fuel Pump Voltage: 12 V
Fuel Pressure Regulator Included: No
Sending Unit Included: No
Fuel Pump Inlet Size: -6 AN
Inlet Quantity: 1
Inlet Attachment: Female straight cut O-ring
Fuel Pump Outlet Size: -6 AN
Outlet Quantity: 1
Outlet Attachment: Female straight cut O-ring
Gasket Included: No
Wiring Harness Included: No
Mounting Bracket Included: No
Mounting Hardware Included: No
Pulley Included: No
Remanufactured: No
Quantity: Sold individually.
Notes: Includes 4 ft. jet siphon tube.
