Description
Aeromotive Phantom 200 Stealth EFI returnless rail fuel systems include all the main components (including the highly sought, baffled Phantom 200 fuel pump) required to create a proper return-style EFI fuel system for engines with OEM-style returnless fuel rails. They add a whisper-quiet internal pump to your stock tank that can deliver enough liquid energy to feed your fuel-injected street rod or muscle car, even in tanks as shallow as six inches! These systems provide a universal high-flow pre-pump filter and modular design that allows fitment to almost any fuel tank. Make the stealthy switch to Aeromotive returnless rail Phantom 200 Stealth fuel systems and take advantage of modern technology in your classic ride!
More product features, items, and specifications include:
* Ideal for naturally aspirated and blown EFI engines producing 300-700+ flywheel horsepower (street or track)
* Requires AN-06 fuel hose and hose ends for proper installation of fuel return/supply lines (all sold separately)
* Black anodized hanger assembly and fuel-resistant baffle/basket
* Phantom 200 fuel pump (18689)
* Inline filter – 10-micron (12321)
* Filter bracket (12305)
* Fuel pressure regulator (13131)
* Fuel pump wiring kit (16307)
* Quick-connect fitting – 3/8 in. to AN-08 (15118)
* Fitting – AN-08 ORB to AN-06 flare (15605)
* Six fittings - AN-06 ORB to AN-06 flare (15606)
* Two fittings - AN-10 ORB to AN-06 flare (15609)
* Liquid-filled gauge – 0-100 psi (15633)
* Must be used with a return style fuel system
* Designed for in-tank use onlyBrand: Aeromotive
Manufacturer's Part Number: 17167
Part Type: Fuel System Pump Kits
Product Line: Aeromotive Phantom 200 Stealth EFI Returnless Rail Fuel Systems
HP Direct Part Number: AEI-17167
UPC: 00684980005974
Maximum Fuel Pressure (psi): 90
Fuel Pump Included: Yes
Flow Rate: 53 gph/200 lph
Fuel Pressure Regulator Included: Yes
Boost/Vacuum Reference Port: No
Fuel Line Included: No
Fuel Filter Included: Yes
Fittings Included: Yes
Clamps Included: Yes
Quantity: Sold as a kit.

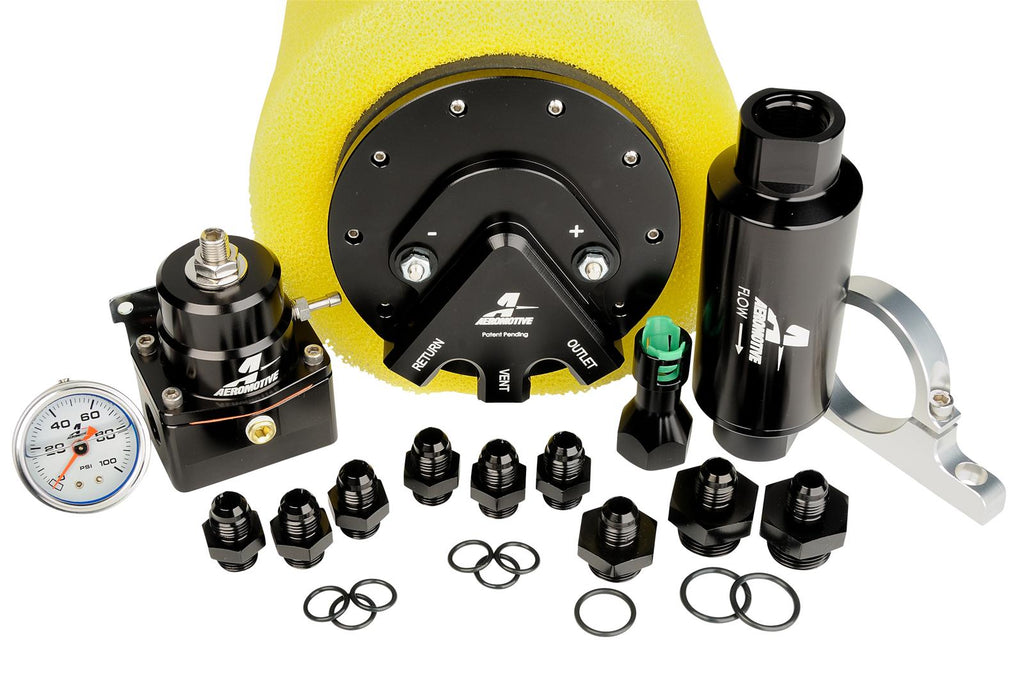

Notes: Phantom EFI returnless fuel system. Kit includes 200 LPH fuel pump, EFI regulator, fuel pressure gauge, high-flow billet filter, mounting bracket, y-block, fittings, and wiring harness. Includes. 3/8 in. OEM Female Quick Connect to -08 AN Fitting.
More product features, items, and specifications include:
* Ideal for naturally aspirated and blown EFI engines producing 300-700+ flywheel horsepower (street or track)
* Requires AN-06 fuel hose and hose ends for proper installation of fuel return/supply lines (all sold separately)
* Black anodized hanger assembly and fuel-resistant baffle/basket
* Phantom 200 fuel pump (18689)
* Inline filter – 10-micron (12321)
* Filter bracket (12305)
* Fuel pressure regulator (13131)
* Fuel pump wiring kit (16307)
* Quick-connect fitting – 3/8 in. to AN-08 (15118)
* Fitting – AN-08 ORB to AN-06 flare (15605)
* Six fittings - AN-06 ORB to AN-06 flare (15606)
* Two fittings - AN-10 ORB to AN-06 flare (15609)
* Liquid-filled gauge – 0-100 psi (15633)
* Must be used with a return style fuel system
* Designed for in-tank use onlyBrand: Aeromotive
Manufacturer's Part Number: 17167
Part Type: Fuel System Pump Kits
Product Line: Aeromotive Phantom 200 Stealth EFI Returnless Rail Fuel Systems
HP Direct Part Number: AEI-17167
UPC: 00684980005974
Maximum Fuel Pressure (psi): 90
Fuel Pump Included: Yes
Flow Rate: 53 gph/200 lph
Fuel Pressure Regulator Included: Yes
Boost/Vacuum Reference Port: No
Fuel Line Included: No
Fuel Filter Included: Yes
Fittings Included: Yes
Clamps Included: Yes
Quantity: Sold as a kit.
Notes: Phantom EFI returnless fuel system. Kit includes 200 LPH fuel pump, EFI regulator, fuel pressure gauge, high-flow billet filter, mounting bracket, y-block, fittings, and wiring harness. Includes. 3/8 in. OEM Female Quick Connect to -08 AN Fitting.
