Aeromotive Phantom 200 Stealth EFI Returnless Fuel Systems 17171

Aeromotive Phantom 200 Stealth EFI returnless fuel systems include all the main components (including the highly sought, baffled Phantom 200 fuel pump) required to create a proper return-style EFI fuel system. They are designed for engines with modern EFI throttle body conversion systems equipped with fuel pressure transducer and an ECU capable of controlling fuel pressure with pulse modulation technology. These systems add a whisper-quiet internal pump to your stock tank that can deliver enough liquid energy to feed your fuel-injected street rod or muscle car, even in tanks as shallow as six inches! They also provide a universal high-flow pre-pump filter and modular design that allows fitment to almost any fuel tank. Make the stealthy switch to Aeromotive EFI returnless Phantom 200 Stealth fuel systems and take advantage of modern technology in your classic ride!

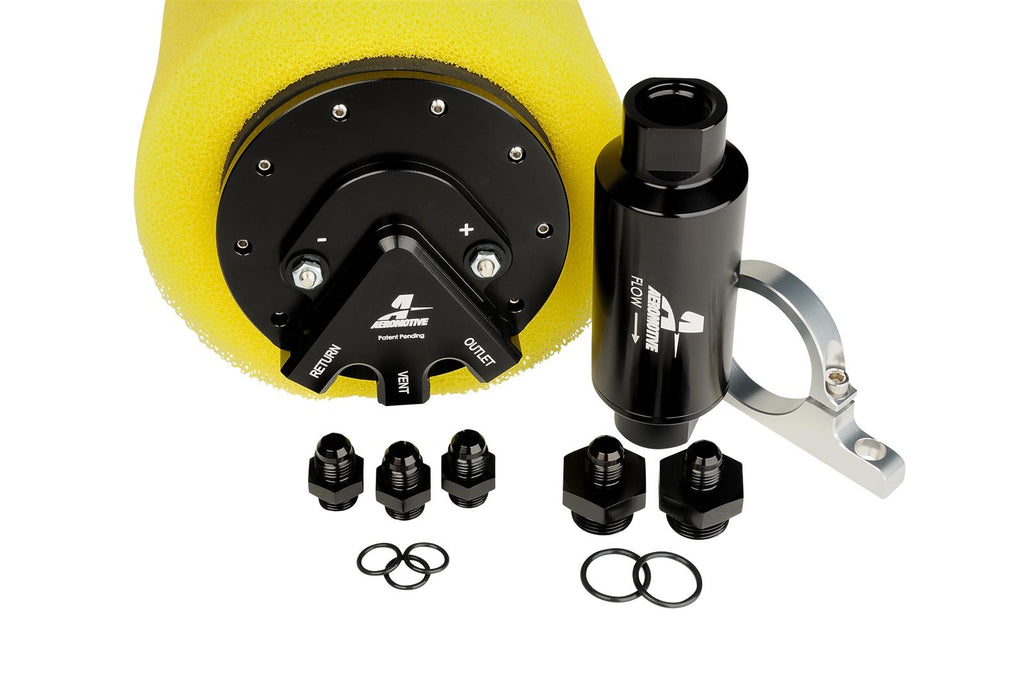

More product features, items, and specifications include:

* Ideal for naturally aspirated EFI engines producing 300-500 flywheel horsepower (street or track)
* Requires AN-06 fuel hose and hose ends for proper installation of fuel supply lines (all sold separately)
* Black anodized hanger assembly and fuel-resistant baffle/basket
* Phantom 200 fuel pump (18689)
* Inline filter – 10-micron (12321)
* Filter bracket (12305)
* Port plug –AN-06 (15626)
* Two fittings - AN-06 ORB to AN-06 flare (15606)
* Two fittings - AN-10 ORB to AN-06 flare (15609)
* Designed for in-tank use onlyBrand: Aeromotive
Manufacturer's Part Number: 17171
Part Type: Fuel System Pump Kits
Product Line: Aeromotive Phantom 200 Stealth EFI Returnless Fuel Systems
HP Direct Part Number: AEI-17171
UPC: 00684980005936
Maximum Fuel Pressure (psi): 90
Fuel Pump Included: Yes
Flow Rate: 53 gph/200 lph
Fuel Pressure Regulator Included: Yes
Boost/Vacuum Reference Port: No
Fuel Line Included: No
Fuel Filter Included: Yes
Fittings Included: Yes
Clamps Included: Yes
Quantity: Sold as a kit.
Notes: Phantom EFI returnless-style fuel system. Kits include 200 LPH fuel pump, EFI bypass fuel regulator, high-flow billet filter, mounting bracket, and fittings.
