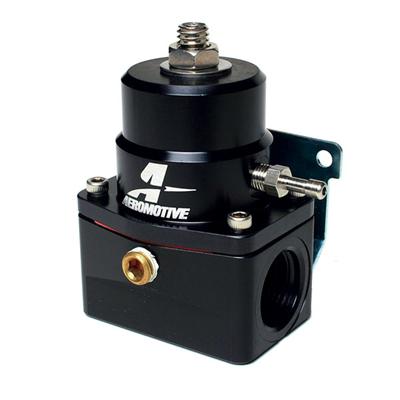

Aeromotive HP Marine EFI Fuel Pressure Regulators 13114

Designed to be used with Aeromotive HP marine fuel pumps, these HP marine EFI fuel pressure regulators provide full pressure adjustments from 40-70 psi, plus a 1:1 boost/vacuum reference. The units are CNC-machined from 6061-T651 billet aluminum alloy with stainless steel hardware and handsomely finished with a type III hard-coat anodized exterior.Brand: Aeromotive
Manufacturer's Part Number: 13114
Part Type: Fuel Pressure Regulators
Product Line: Aeromotive HP Marine EFI Fuel Pressure Regulators
HP Direct Part Number: AEI-13114
UPC: 00684980001938
Regulator Pressure (psi): 40-70
Regulator Style: Return
Regulator Location: Inline
Boost/Vacuum Reference Port: Yes
Boost/Vacuum Rise Ratio: 1:1
Gauge Port: Yes
Inlet Quantity: 1
Regulator Inlet Size: -10 AN
Inlet Attachment: Female straight cut O-ring
Outlet Quantity: 1
Regulator Outlet Size: -10 AN
Outlet Attachment: Female straight cut O-ring
Return Fitting Size: -6 AN
Return Attachment: Female straight cut O-ring
Fittings Included: No
Regulator Material: Aluminum
Regulator Color: Black
Rebuildable: Yes
Mounting Bracket Included: Yes
Remanufactured: No
Quantity: Sold individually.
