Aeromotive Fuel Pump Bladder Baffle Sets 18022

Aeromotive fuel pump bladder baffle sets are a complement to the APEX Phantom systems. They open and close the door with the Phantom flow control technology while providing a continuous, high fuel flow into the baffle. It's critical to allow a large volume of fuel to flow into the baffle naturally from the surrounding tank—and also important to keep it there. The Phantom bladder baffle can ensure this. Installed in the inlet passages at the base of the Phantom bladder, the new Phantom bladder baffle increases the flow area into the bladder to promote rapid fuel recovery from the surrounding tank—while deploying a PTFE check ball that acts to keep that critical fuel in the bladder, preventing it from escaping during hard acceleration, cornering, and off-angle vehicle maneuvers. The units are constructed with CNC-machined billet aluminum valve bodies, which are then anodized and loaded with a PTFE check ball and locked into the Phantom bladder with a PTFE retaining washer. Phantom bladder baffles are designed for durability and are fully compatible with gasoline and ethanol fuels. They require no special tools and may be used in any existing or new Phantom bladder, with the Apex Phantom, or as a stand-alone solution to slosh control.Brand: Aeromotive
Manufacturer's Part Number: 18022
Part Type: Fuel Tank Sending Unit Replacement Components
Product Line: Aeromotive Fuel Pump Bladder Baffle Sets
HP Direct Part Number: AEI-18022
UPC: 00684980010336
Fuel Tank Sending Unit Replacement Component Type: Bladder baffles

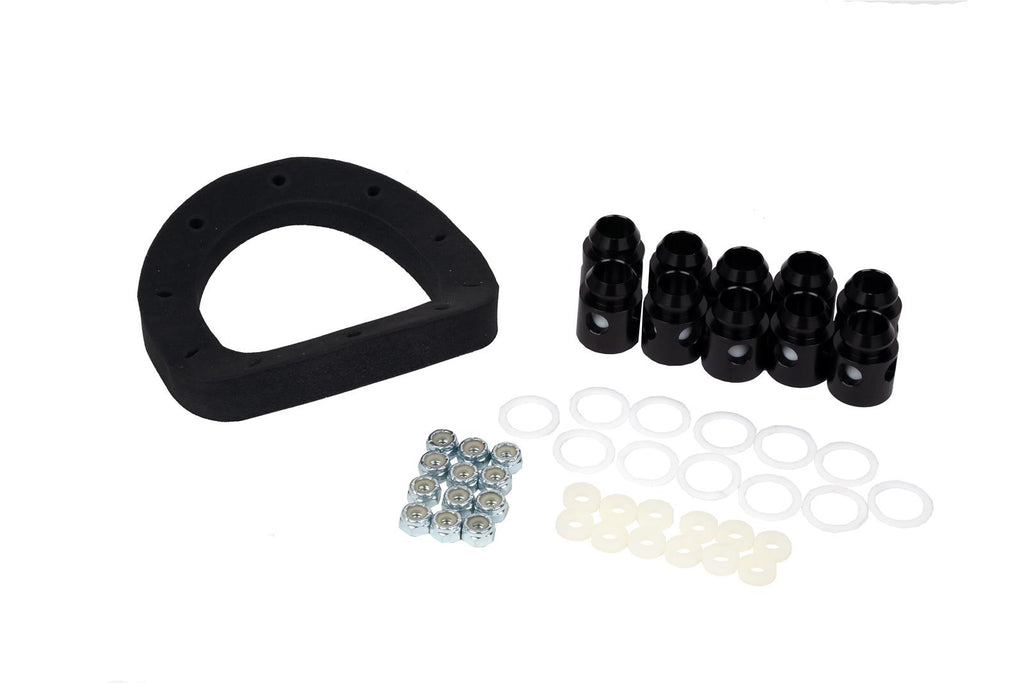

Quantity: Sold as a set of 10.
Notes: For use with the Phantom Trifecta fuel pump kits. Includes sending unit gasket, nuts and washers.
