Aeromotive Extreme Flow EFI Fuel Pressure Regulators 13137

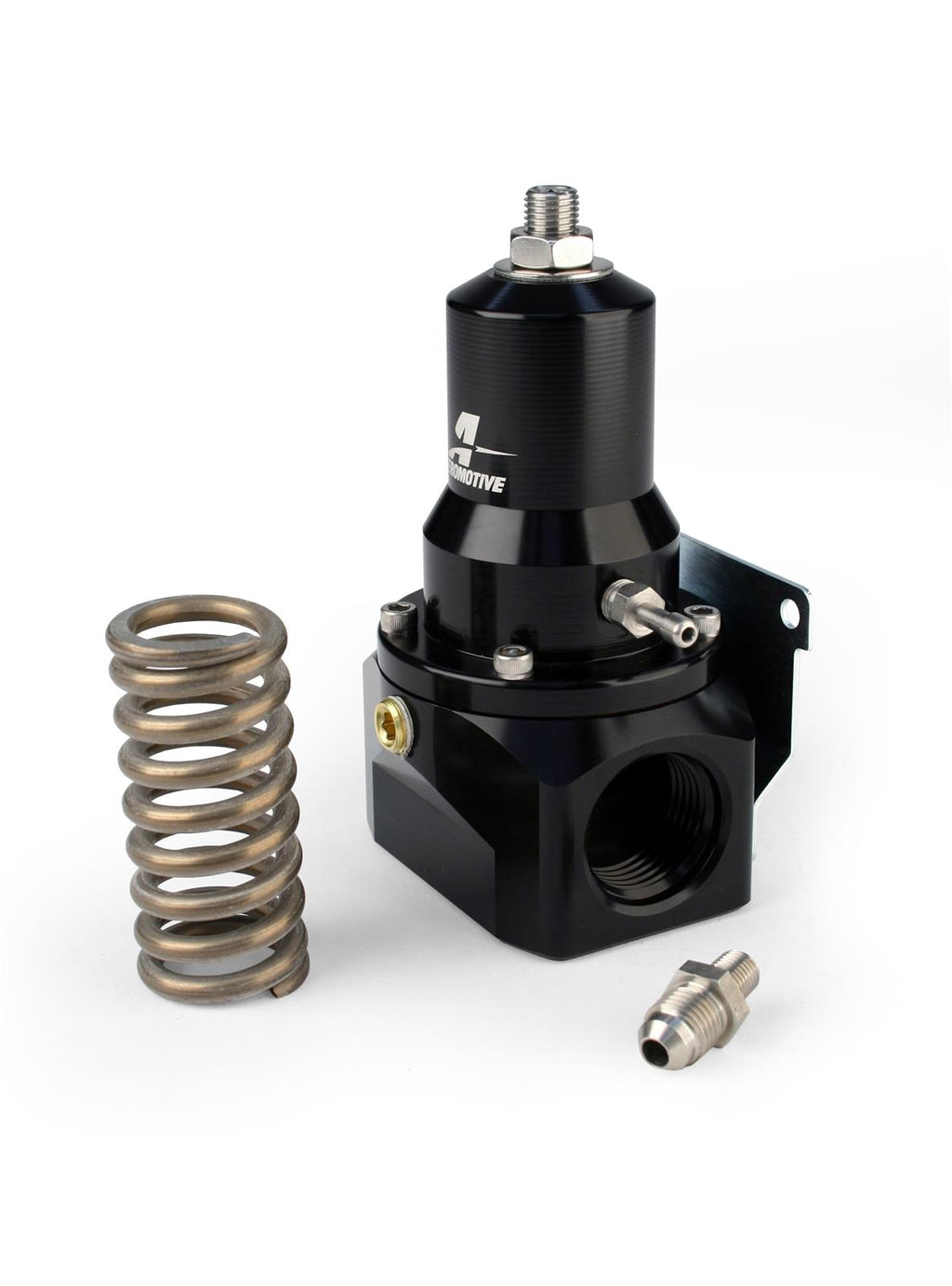

Control your fuel pressure with one of these Aeromotive Extreme Flow EFI fuel pressure regulators. They're manufactured from durable aluminum, then anodized for maximum protection. The regulators include a standard spring (installed) that supports 30-75 psi base fuel pressure and a high pressure spring (included) to support 75-120 psi base fuel pressure. Aeromotive Extreme Flow EFI fuel pressure units also support vacuum and boost reference on a 1:1 ratio.Brand: Aeromotive
Manufacturer's Part Number: 13137
Part Type: Fuel Pressure Regulators
Product Line: Aeromotive Extreme Flow EFI Fuel Pressure Regulators
HP Direct Part Number: AEI-13137
UPC: 00684980008609
Regulator Pressure (psi): 30-120
Regulator Style: Return
Regulator Location: Inline
Boost/Vacuum Reference Port: Yes
Boost/Vacuum Rise Ratio: 1:1
Gauge Port: Yes
Inlet Quantity: 1
Regulator Inlet Size: -12 AN
Inlet Attachment: Female straight cut O-ring
Outlet Quantity: 2
Regulator Outlet Size: -12 AN O-ring
Outlet Attachment: Female straight cut O-ring
Fittings Included: No
Regulator Material: Aluminum
Regulator Color: Black
Rebuildable: Yes
Mounting Bracket Included: Yes
Remanufactured: No
Quantity: Sold individually.
Notes: For Belt/Hex Drive Fuel Pumps and EFI Engines. Features 0.500 in. high flow valve seat to support 7-26 GPM fuel pumps.
