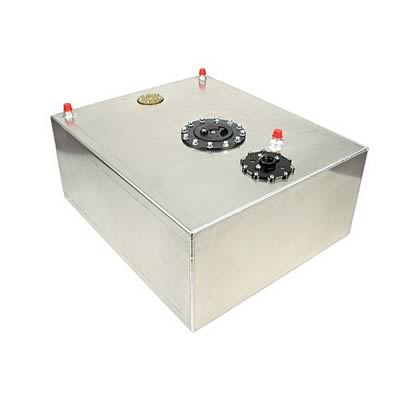

Aeromotive Eliminator Stealth Fuel Cells 18663

Aeromotive Eliminator Stealth fuel cells feature their built-in Eliminator electric fuel pump and a 100 micron stainless steel prefilter. They can be mounted anywhere in any car. Simply strap one of the fuel cells in, hook up your fuel line to the pump outlet and your two wires, and you're done. You won't have to search any longer for a place to mount your fuel pump and pre-pump filter. Through an innovative baffling system inside of the cells, the fuel pump inlet always has a constant column of fuel. In addition, the Aeromotive Eliminator Stealth fuel cells' baffling keeps fuel at that same point, even during extreme driving conditions, making them perfect for off-road vehicles, drag racing, and even autocross and drifting. Plus, the pump is inside of the cells, so noise is drastically reduced, and the fuel pump runs cooler longer, ensuring longevity and drivability.

Additional features include:

* Available in 15 or 20 gallon capacity
* All-aluminum construction
* TIG-welded
* Flush mount lid assembly
* Two -8 AN rollover valves
* Universal 0-90 ohm built-in fuel level sending unit
* -8 AN return fitting for bypass line from the fuel pressure regulatorBrand: Aeromotive
Manufacturer's Part Number: 18663
Part Type: Fuel Cells
Product Line: Aeromotive Eliminator Stealth Fuel Cells
HP Direct Part Number: AEI-18663
UPC: 00684980003475
Capacity: 20 gallons
Foam: No
Baffled: Yes
Fuel Cell Material: Aluminum
Fuel Pump Included: Yes
Flow Rate: 133 gph/503 lph
Sending Unit Included: Yes
Sender Ohm Range: 0 ohms empty, 90 ohms full
Length (in.): 24.000 in.
Width (in.): 20.000 in.
Height (in.): 10.000 in.
Fuel Cell Color: Natural
Outlet Fitting Quantity: One
Outlet Fitting Size: -10 AN
Vent Fitting Size: -8 AN
Return Fitting Size: -8 AN
Tip Over Valve Size: -8 AN
Sump: No
Quantity: Sold individually.
Notes: Includes a 100 micron stainless steel prefilter and Aeromotive Eliminator electric fuel pump built into the fuel cell.
