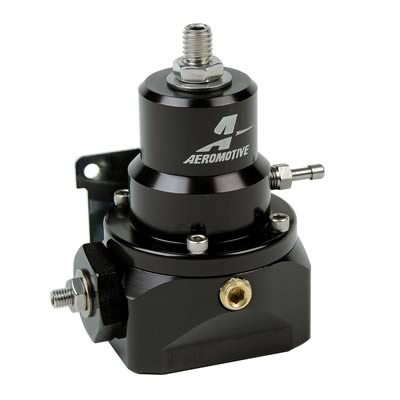

Aeromotive Double Adjustable Carbureted Regulators 13214

Aeromotive double adjustable carbureted regulators are designed for use with Aeromotive's series of mechanical drive fuel pumps. These regulators allow a dual pressure strategy often required for alcohol carbureted racing engines where fuel pressure must be lower at idle, but higher as rpm and loads increase. Aeromotive double adjustable carbureted regulators prevent flooding during low fuel demands, while eliminating starvation at high fuel demands. They are capable of supporting 2,000+ hp, alcohol-burning engines. These regulators do not require jets, pills, logs, or barrel valves.Brand: Aeromotive
Manufacturer's Part Number: 13214
Part Type: Fuel Pressure Regulators
Product Line: Aeromotive Double Adjustable Carbureted Regulators
HP Direct Part Number: AEI-13214
UPC: 00684980001143
Regulator Pressure (psi): 2-18
Regulator Style: Return
Regulator Location: Inline
Boost/Vacuum Reference Port: Yes
Boost/Vacuum Rise Ratio: 1:1
Gauge Port: Yes
Inlet Quantity: 1
Regulator Inlet Size: -10 AN
Inlet Attachment: Female straight cut O-ring
Return Fitting Size: -10 AN O-ring
Return Attachment: Female straight cut O-ring
Fittings Included: No
Regulator Material: Aluminum
Regulator Color: Black
Rebuildable: Yes
Mounting Bracket Included: No
Remanufactured: No
Quantity: Sold individually.
Notes: Designed for belt or cam driven fuel pumps.
