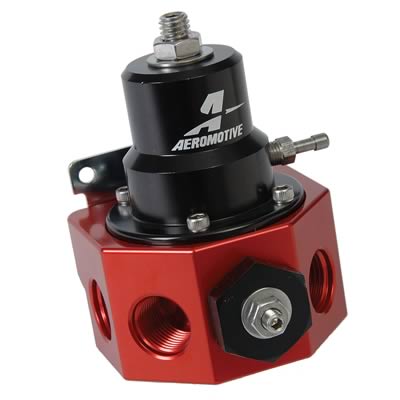

Aeromotive Double Adjustable Carbureted Regulators 13209

Aeromotive double adjustable carbureted regulators are designed for use with Aeromotive's series of mechanical drive fuel pumps. These regulators allow a dual pressure strategy often required for alcohol carbureted racing engines where fuel pressure must be lower at idle, but higher as rpm and loads increase. Aeromotive double adjustable carbureted regulators prevent flooding during low fuel demands, while eliminating starvation at high fuel demands. They are capable of supporting 2,000+ hp, alcohol-burning engines. These regulators do not require jets, pills, logs, or barrel valves.Brand: Aeromotive
Manufacturer's Part Number: 13209
Part Type: Fuel Pressure Regulators
Product Line: Aeromotive Double Adjustable Carbureted Regulators
HP Direct Part Number: AEI-13209
UPC: 00684980002386
Regulator Pressure (psi): 4-8
Regulator Style: Return
Regulator Location: Inline
Boost/Vacuum Reference Port: Yes
Gauge Port: No
Inlet Quantity: 1
Regulator Inlet Size: -8 AN
Inlet Attachment: Female straight cut O-ring
Outlet Quantity: 3
Regulator Outlet Size: -8 AN
Outlet Attachment: Female straight cut O-ring
Return Fitting Size: -10 AN
Return Attachment: Female straight cut O-ring
Fittings Included: No
Regulator Material: Aluminum
Regulator Color: Red
Rebuildable: No
Mounting Bracket Included: Yes
Remanufactured: No
Quantity: Sold individually.
