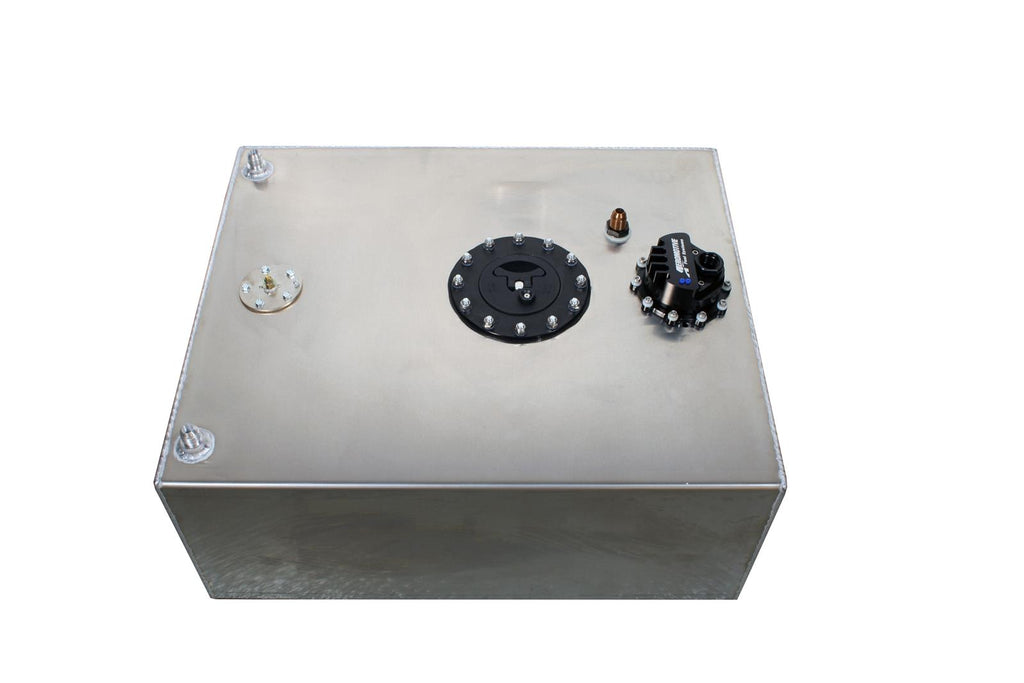

Aeromotive Brushless A1000 Fuel Cells 18381

Aeromotive offers various brushless A1000 fuel cells, featuring the pump and a 100-micron prefilter which can be mounted anywhere in any vehicle. Simply strap one of the fuel cells in, hook up your fuel line to the pump outlet and your two wires, and get ready to drive! Through an innovative interior baffling system, the inlet carries a constant column of fuel, keeping it at that same point, even during extreme driving conditions. This quality makes them perfect for off-road vehicles, drag racing, autocross, drifting, and more!

Additional features include:

* Available in 6, 15, or 20-gallon capacities
* In-cell pump reduces noise and prolongs cooler running for longevity and drivability
* All-aluminum construction
* TIG-welded
* Flush-mount lid assembly
* (2) -8 AN rollover valves
* Universal 0 to 90-ohm built-in fuel level sending unit
* Return fitting (-8 AN) for bypass line from the fuel pressure regulator
* Brushless pump allows for higher pressure with minimal drop in flowBrand: Aeromotive
Manufacturer's Part Number: 18381
Part Type: Fuel Cells
Product Line: Aeromotive Brushless A1000 Fuel Cells
HP Direct Part Number: AEI-18381
UPC: 684980011067
Capacity: 20 gallons
Foam: No
Baffled: Yes
Fuel Cell Material: Aluminum
Fuel Pump Included: Yes
Flow Rate: 105 gph/397 lph
Sending Unit Included: Yes
Sender Ohm Range: 0 ohms empty, 90 ohms full
Length (in.): 24.000 in.
Width (in.): 20.000 in.
Height (in.): 10.000 in.
Fuel Cell Color: Natural
Outlet Fitting Quantity: One
Outlet Fitting Size: -10 AN
Vent Fitting Size: -8 AN
Return Fitting Size: -8 AN
Tip Over Valve Size: -8 AN
Sump: No
Quantity: Sold individually.
Notes: Includes Aeromotive Brushless A1000 variable speed electric fuel pump built into the fuel cell.
