Description

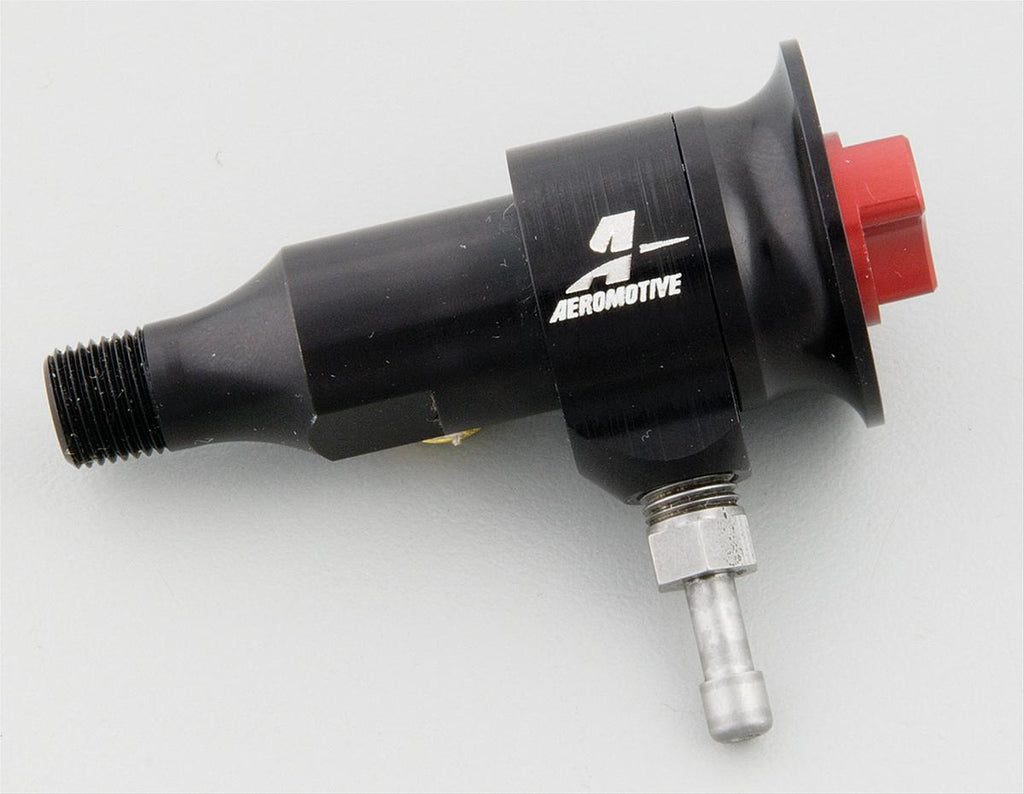

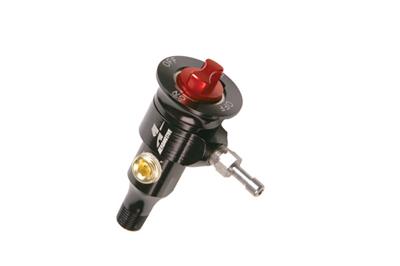

Make fuel checks simple with Aeromotive's billet fuel sample valves. Depending on the model you select, the aluminum units can install into your 1/8 in. NPT inlet port with threads or quick-connect attachment. Some contain a stainless steel barb fitting for extension hoses and rotate 360 degrees for easy sampling. A spring-loaded safety feature keeps the sample valve sealed when unlocked, and rotates into a locked position when it's time for racing. When a fuel sample is required, simply rotate the valve to the unlocked position, press down for a fuel sample, re-lock, and go race!
Brand: Aeromotive
Manufacturer's Part Number: 15631
Part Type: Fuel Sample Valves
Product Line: Aeromotive Billet Fuel Sample Valves
HP Direct Part Number: AEI-15631
UPC: 00684980002263
Fuel Line Inlet Size: 1/8 in. NPT
Inlet Attachment: Male threads
Inlet Quantity: 1
Fuel Line Outlet Size: 3/16 in.
Outlet Attachment: Hose barb
Outlet Quantity: 1
Gauge Port: Yes
Gauge Port Size: 1/8 in. NPT
Sample Valve Material: Aluminum
Sample Valve Finish: Black anodized
Quantity: Sold individually.
Brand: Aeromotive
Manufacturer's Part Number: 15631
Part Type: Fuel Sample Valves
Product Line: Aeromotive Billet Fuel Sample Valves
HP Direct Part Number: AEI-15631
UPC: 00684980002263
Fuel Line Inlet Size: 1/8 in. NPT
Inlet Attachment: Male threads
Inlet Quantity: 1
Fuel Line Outlet Size: 3/16 in.
Outlet Attachment: Hose barb
Outlet Quantity: 1
Gauge Port: Yes
Gauge Port Size: 1/8 in. NPT
Sample Valve Material: Aluminum
Sample Valve Finish: Black anodized
Quantity: Sold individually.
