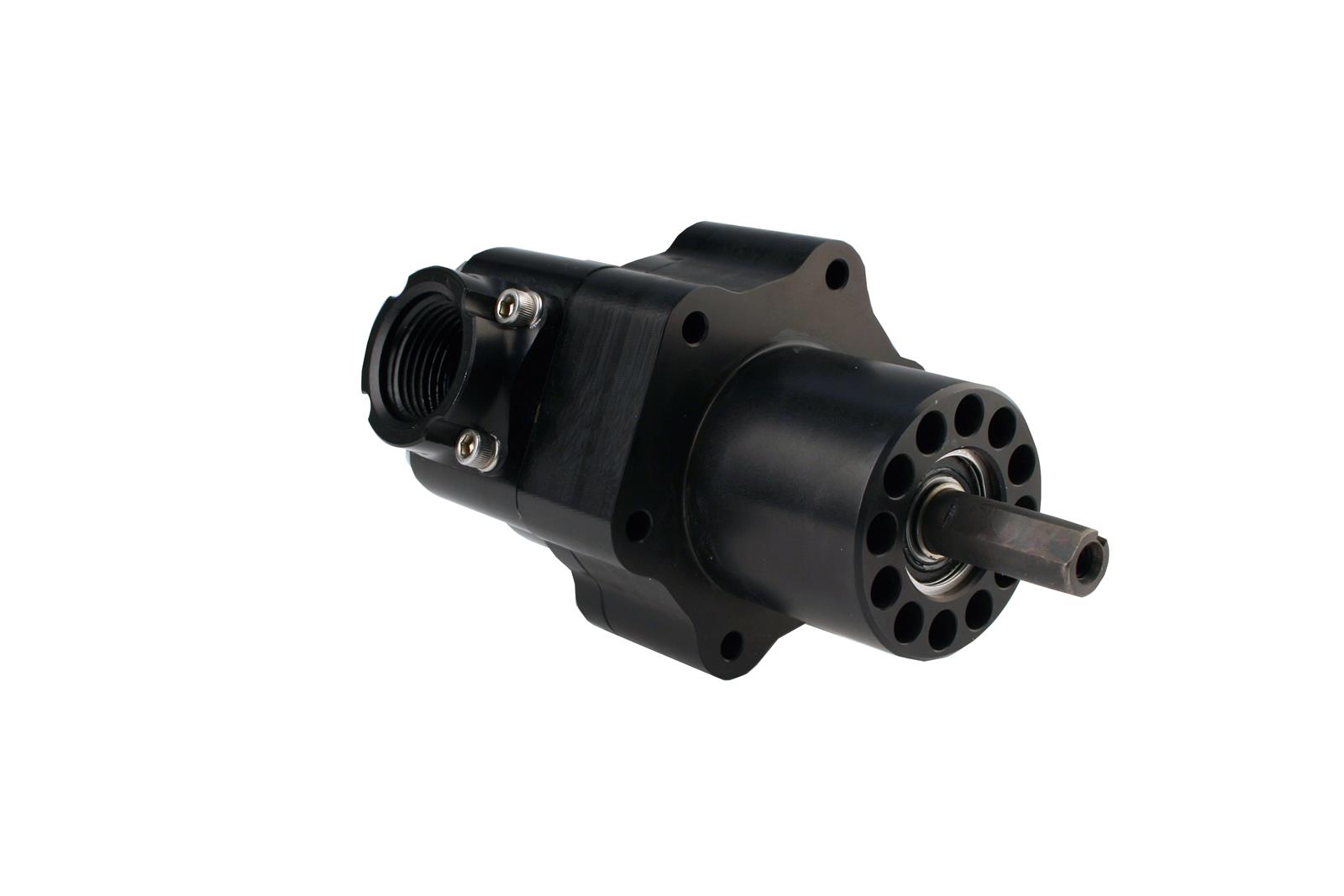

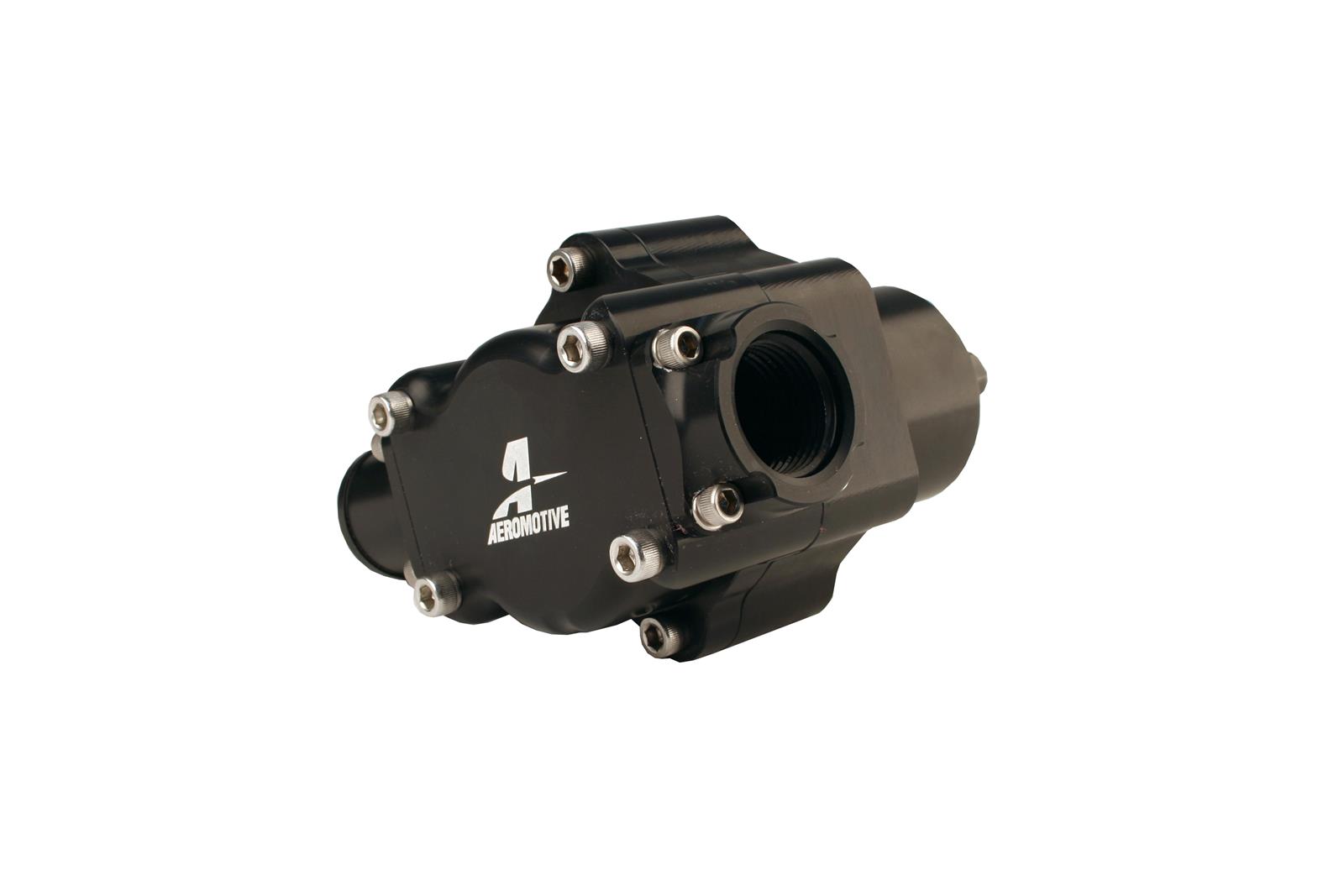

Aeromotive Atomic Belt Drive Fuel Pumps 11115

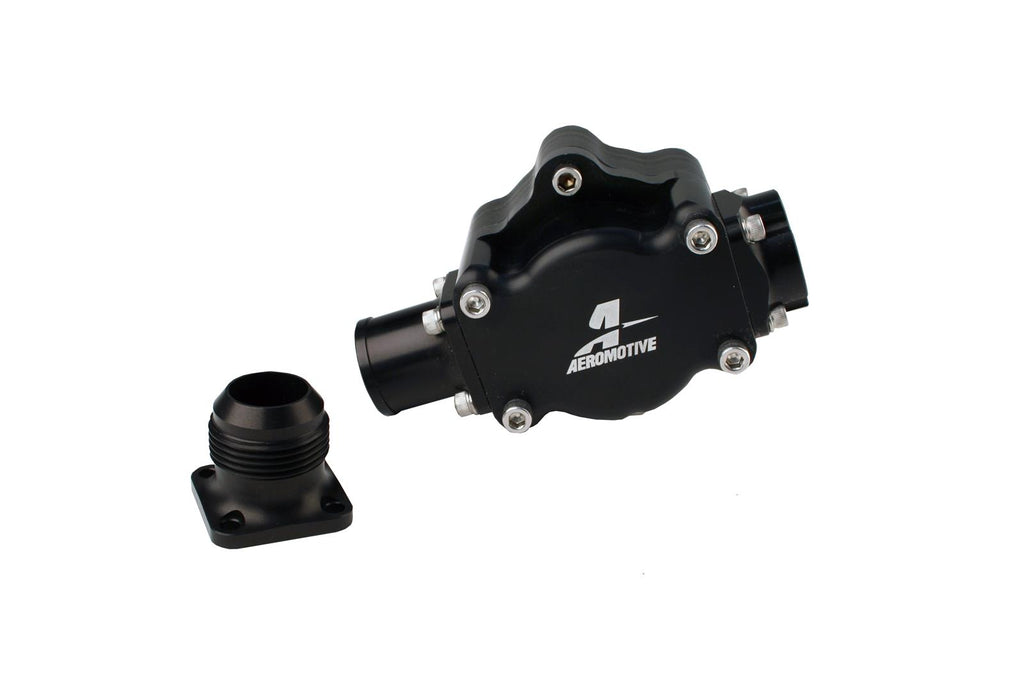

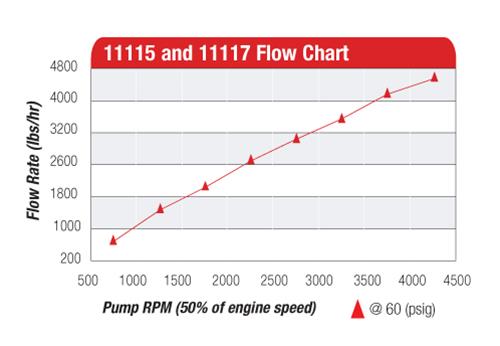

Aeromotive Atomic belt drive fuel pumps are designed to be operated by a pulley and a cog belt, allowing the pumps to be driven from your crankshaft. They can be used in low or high-pressure applications and flow in excess of 4,500 lbs. per hour and over 12 gpm at 100 psi. The Aeromotive Atomic belt drive fuel pumps will support from 1,500 to over 5,000 hp on gas and over 2,500 hp on ethanol and methanol fuels. Their special Type III hardcoat anodized finish protects the 6061-T6 aircraft billet aluminum alloy housing from harsh fuels while looking great. The body features removable ports with a -16 AN/1.125 in. hose barb inlet and a female -12 AN O-ring boss outlet port. This new modular inlet/outlet port design opens the door for you to interchange attachment styles to fit your engine's needs. If you're building a high-horsepower engine, use one of these Aeromotive Atomic belt drive fuel pumps as the foundation of your fuel system.Brand: Aeromotive
Manufacturer's Part Number: 11115
Part Type: Fuel Pumps
Product Line: Aeromotive Atomic Belt Drive Fuel Pumps
HP Direct Part Number: AEI-11115
UPC: 00684980002355
Fuel Pump Type: Mechanical
Flow Rate: 12.0 gpm
Fuel Pressure (psi): 2-200 psi
Fuel Pressure Regulator Included: No
Sending Unit Included: No
Fuel Pump Inlet Size: 1 1/4 in.
Inlet Quantity: 1
Inlet Attachment: Hose barb
Fuel Pump Outlet Size: -12 AN
Outlet Quantity: 1
Outlet Attachment: Female straight cut O-ring
Gasket Included: No
Wiring Harness Included: No
Mounting Bracket Included: No
Mounting Hardware Included: No
Pulley Included: No
Remanufactured: No
Quantity: Sold individually.
Notes: Includes both 1.25 in. hose barb and -16 AN male inlet.
