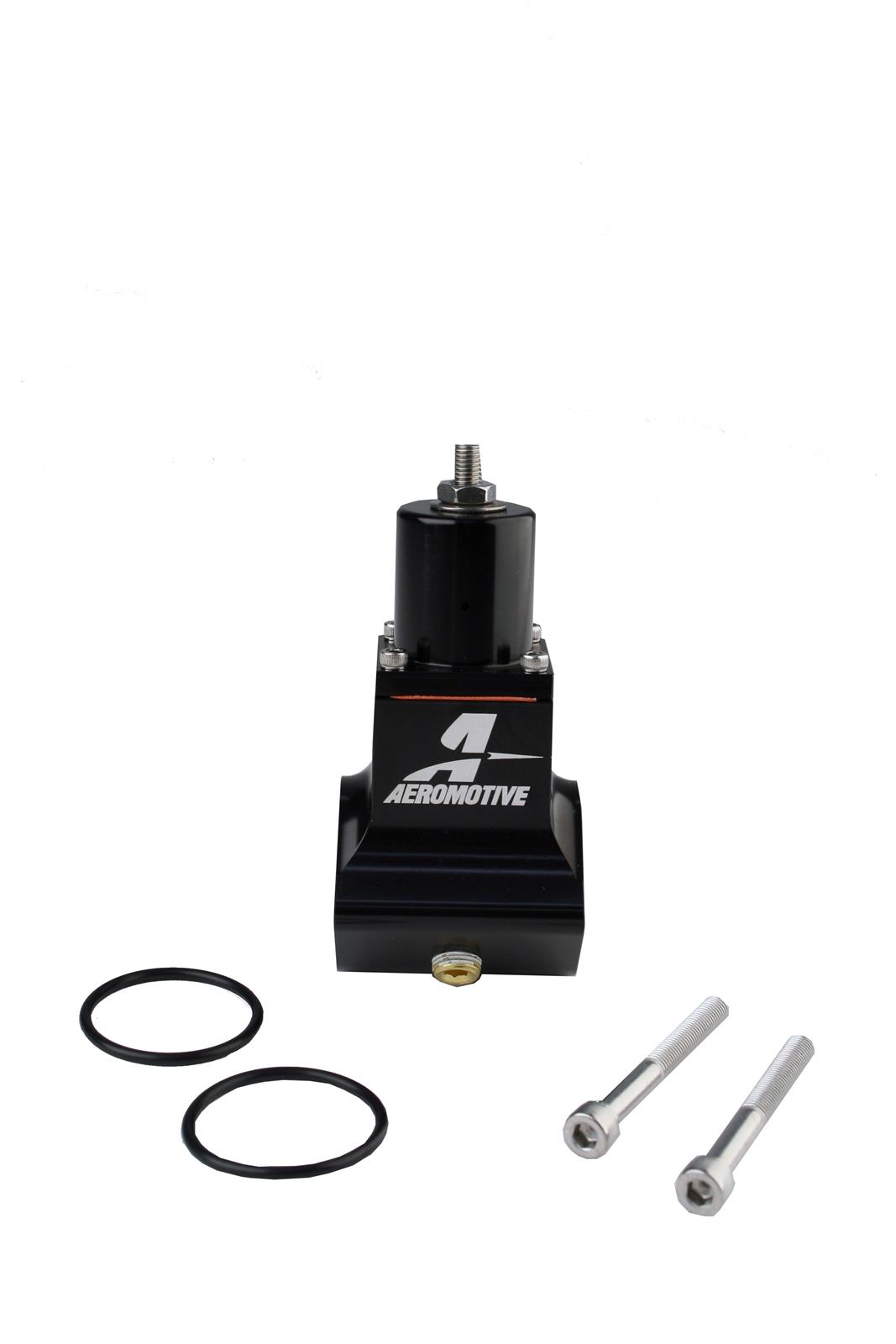

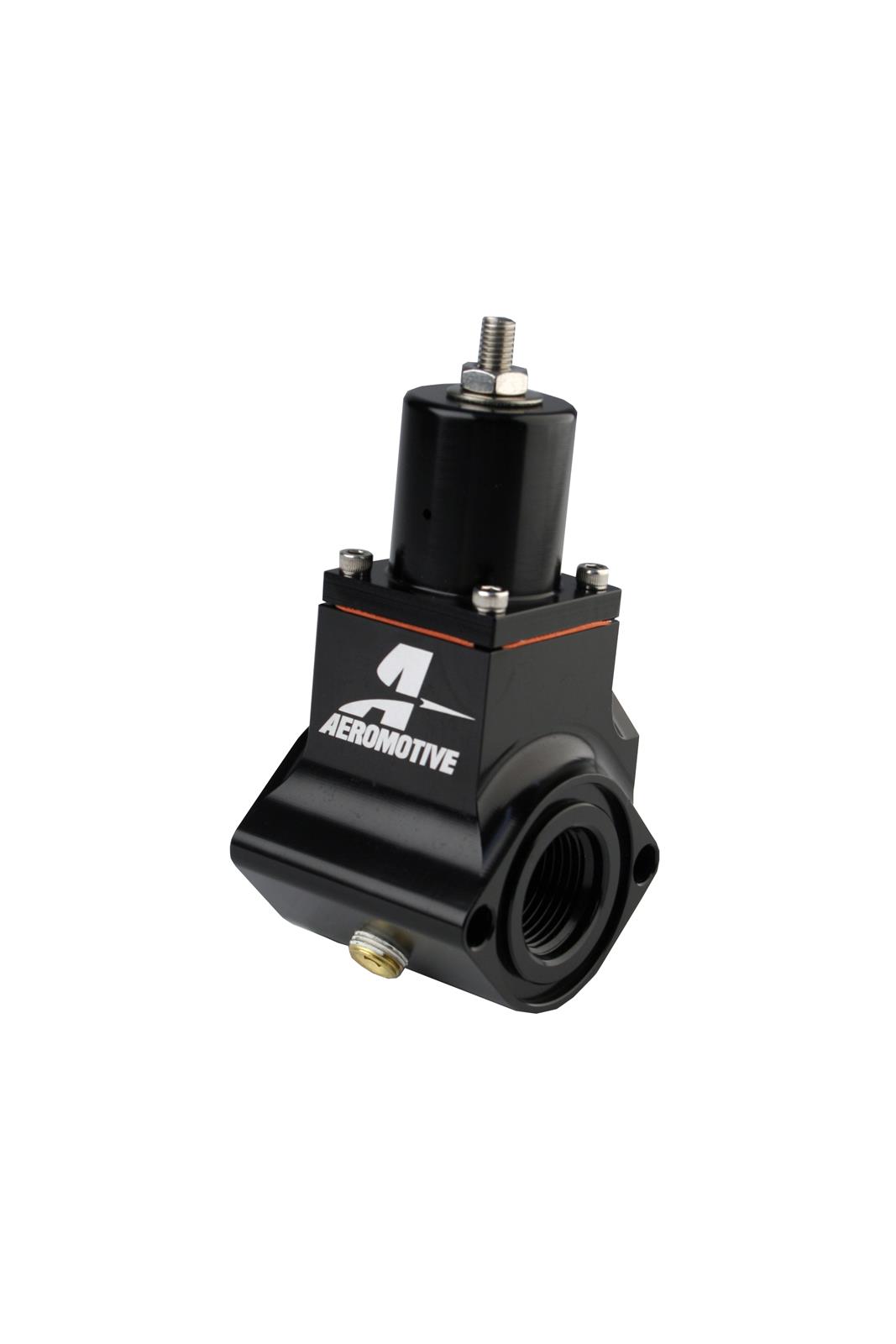

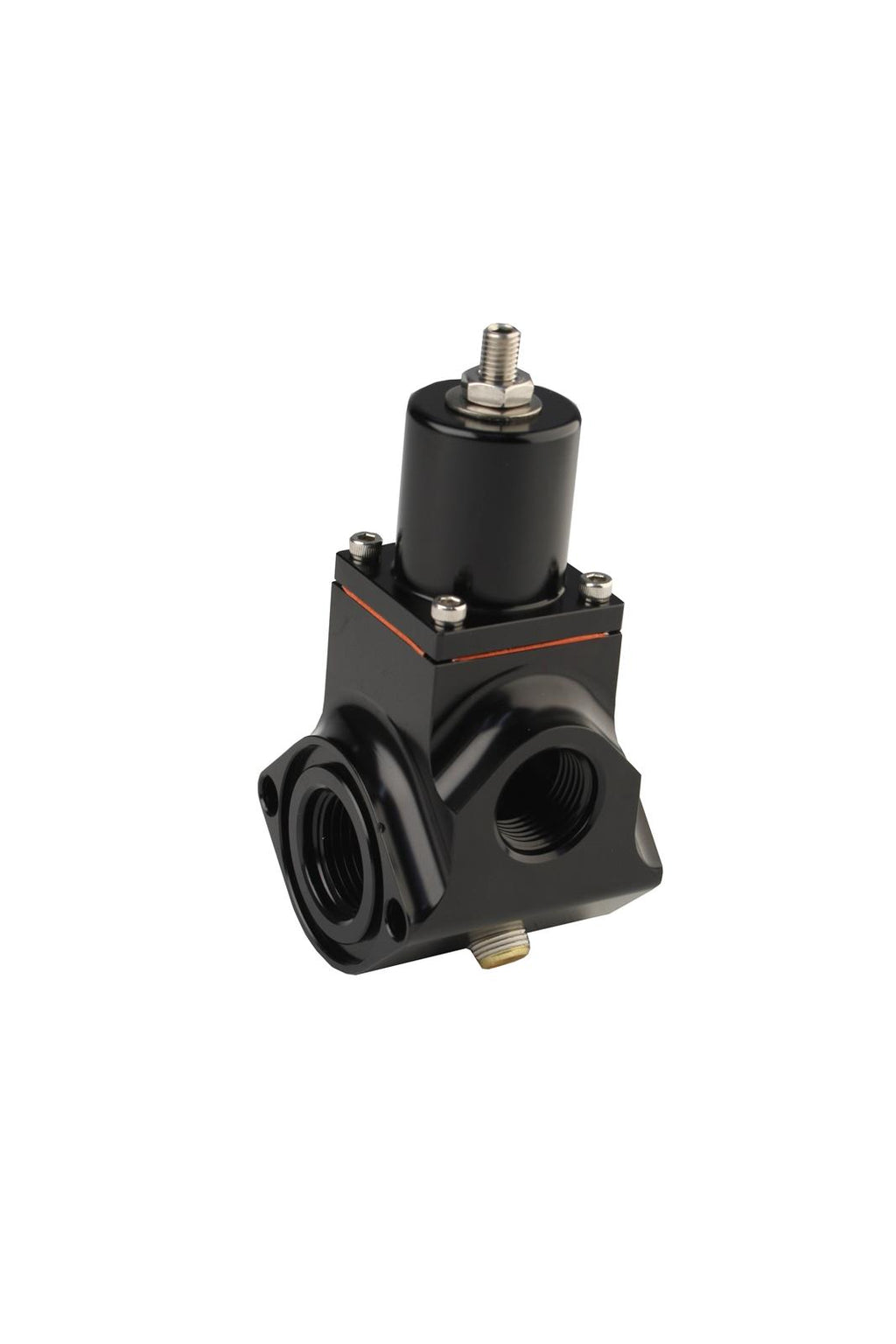

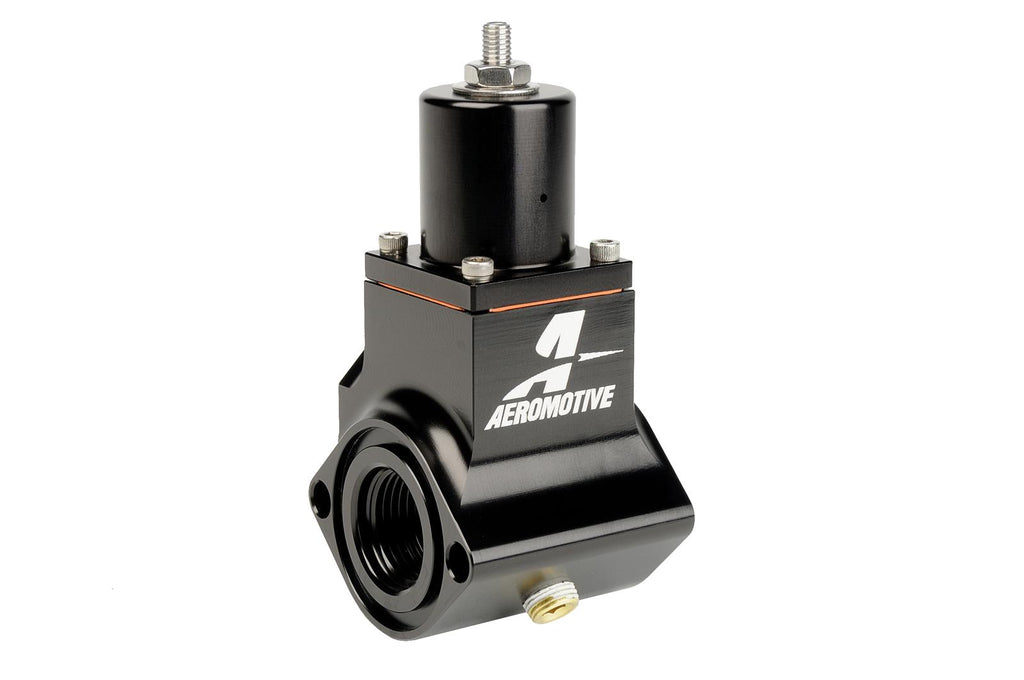

Aeromotive A3000 Drag Race Regulators 11217

Aeromotive A3000 drag race regulators have already visited the winner's circle a number of times! Fueling consistency, volume, and performance are paramount on quarter-mile tracks, so top drivers choose this light, user-friendly unit. The modular design allows for the pump and regulator to detach from one another and the filter to be removed, as well—and both peripheral pieces can be clocked every 45 degrees in either direction. By using an O-ring seal on both the filter assembly and the bypass regulator where it seals to the pump base, along with multiple mounting holes in both sides of the pump base, Aeromotive has created a system that excels in applications where space is at a premium.Brand: Aeromotive
Manufacturer's Part Number: 11217
Part Type: Fuel Pressure Regulators
Product Line: Aeromotive A3000 Drag Race Regulators
HP Direct Part Number: AEI-11217
UPC: 00684980005684
Regulator Pressure (psi): 14-24
Regulator Style: Return
Regulator Location: Inline
Boost/Vacuum Reference Port: No
Gauge Port: Yes
Inlet Quantity: 1
Regulator Inlet Size: -10 AN
Inlet Attachment: Female straight cut O-ring
Outlet Quantity: 1
Regulator Outlet Size: -10 AN
Outlet Attachment: Female straight cut O-ring
Return Fitting Size: -8 AN
Return Attachment: Female straight cut O-ring
Fittings Included: No
Regulator Material: Aluminum
Regulator Color: Black
Rebuildable: No
Mounting Bracket Included: Yes
Remanufactured: No
Quantity: Sold individually.
Notes: Designed for use with the A3000 pump, can also be used in stand alone or stackable regulator applications.
