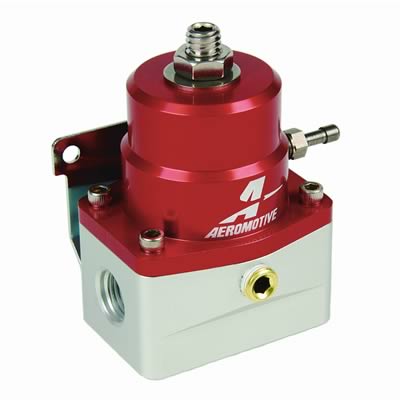

Aeromotive A1000-6 Injected Bypass Regulators 13109

Aeromotive A1000-6 injected bypass regulators were developed for high-horsepower EFI applications where -6 AN fuel lines are used for supply and return. These regulators are alcohol compatible and feature two -6 AN inlet ports and one -6 AN return port. They're beautifully finished with Type II bright red and clear anodized coatings and deliver long life, performance, and reliable operation.Brand: Aeromotive
Manufacturer's Part Number: 13109
Part Type: Fuel Pressure Regulators
Product Line: Aeromotive A1000-6 Injected Bypass Regulators
HP Direct Part Number: AEI-13109
UPC: 00684980000306
Regulator Pressure (psi): 40-75
Regulator Style: Return
Regulator Location: Inline
Boost/Vacuum Reference Port: Yes
Boost/Vacuum Rise Ratio: 1:1
Gauge Port: Yes
Inlet Quantity: 1
Regulator Inlet Size: -6 AN
Inlet Attachment: Female straight cut O-ring
Outlet Quantity: 1
Regulator Outlet Size: -6 AN
Outlet Attachment: Female straight cut O-ring
Return Fitting Size: -6 AN
Return Attachment: Female straight cut O-ring
Fittings Included: No
Regulator Material: Aluminum
Regulator Color: Clearcoat
Rebuildable: Yes
Mounting Bracket Included: Yes
Remanufactured: No
Quantity: Sold individually.
Notes: The included boost reference fitting accepts 1/8 in. hose. 1/8 in. NPT plug is also included for the gauge port. Inlet and outlet fittings are not included.
