Description

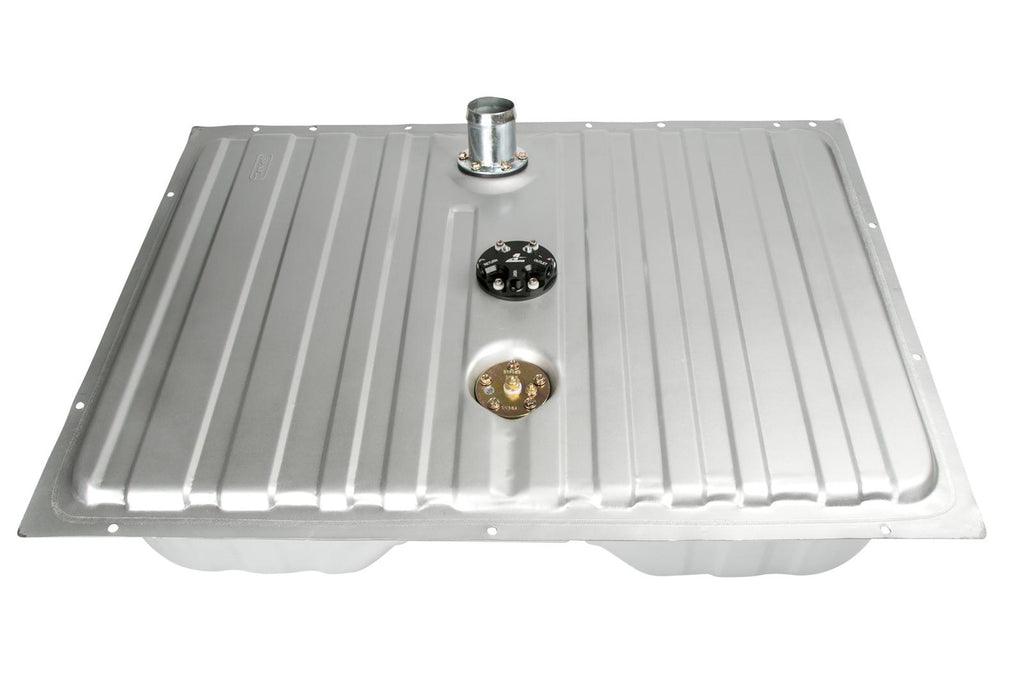

Aeromotive 200 Stealth fuel tanks conceal impressive power components. Hiding inside the tank is the high-output electric fuel pump—mounted to an anodized billet aluminum hanger assembly and boasting a 200 lph flow. The tanks also feature an innovative baffling/tray system to control fuel slosh and keep the fuel pump submerged. Stealth tanks are designed foremost to provide superior EFI street performance with OEM fitment, finish and drivability, as well as supporting normal driving down to very low levels of fuel in the tank.
Tank specifications include:
* Fuel injected engines (gasoline): up to 600 hp naturally aspirated; up to 450 hp forced induction
* Carbureted engines (gasoline): up to 750 hp naturally aspirated; up to 600 hp forced induction
* Silver powdercoated exteriors; except select applications which are painted silver, allowing them to be prepped and painted to match the car if desired
Note: Stealth fuel tanks are not intended for competition applications where extreme acceleration and cornering will occur with fuel levels lower than 1/2 tank. Racing fuel cells or bladder-style road racing tanks with the appropriate baffling and gated collectors are recommended for these types of applications.
Brand: Aeromotive
Manufacturer's Part Number: 18698
Part Type: Fuel Tanks
Product Line: Aeromotive 200 Stealth Fuel Tanks
HP Direct Part Number: AEI-18698
UPC: 00684980008111
Fuel Tank Capacity: 16 gallons
Fuel Pump Included: Yes
Sending Unit Included: Yes
Fuel Sump Welded on Tank: No
Flow Rate: 53 gph/200 lph
Baffled Sump: Yes
Outlet Quantity: 3
Fitting Attachment 1: Female threads
Fitting Size 1: -6 AN O-ring
Fitting Attachment 2: Female threads
Fitting Size 2: -6 AN O-ring
Fitting Attachment 3: Female threads
Fitting Size 3: -6 AN O-ring
Lock Ring Kit Included: No
Mounting Hardware Included: No
Mounting Strap Included: No
Fuel Tank Material: Steel
Fuel Tank Color: Silver painted
Quantity: Sold individually.
Notes: Tank is 1 in. deeper than stock. This tank includes a universal 73-10 Ohm sending unit, installed Aeromotive 200 Stealth electric fuel pump, and billet aluminum fuel pump hanger. Stealth Fuel Tanks are not engineered for competition drag racing or road racing applications where extreme acceleration and cornering will occur with fuel levels lower than 1/2 tank.
Tank specifications include:
* Fuel injected engines (gasoline): up to 600 hp naturally aspirated; up to 450 hp forced induction
* Carbureted engines (gasoline): up to 750 hp naturally aspirated; up to 600 hp forced induction
* Silver powdercoated exteriors; except select applications which are painted silver, allowing them to be prepped and painted to match the car if desired
Note: Stealth fuel tanks are not intended for competition applications where extreme acceleration and cornering will occur with fuel levels lower than 1/2 tank. Racing fuel cells or bladder-style road racing tanks with the appropriate baffling and gated collectors are recommended for these types of applications.
Brand: Aeromotive
Manufacturer's Part Number: 18698
Part Type: Fuel Tanks
Product Line: Aeromotive 200 Stealth Fuel Tanks
HP Direct Part Number: AEI-18698
UPC: 00684980008111
Fuel Tank Capacity: 16 gallons
Fuel Pump Included: Yes
Sending Unit Included: Yes
Fuel Sump Welded on Tank: No
Flow Rate: 53 gph/200 lph
Baffled Sump: Yes
Outlet Quantity: 3
Fitting Attachment 1: Female threads
Fitting Size 1: -6 AN O-ring
Fitting Attachment 2: Female threads
Fitting Size 2: -6 AN O-ring
Fitting Attachment 3: Female threads
Fitting Size 3: -6 AN O-ring
Lock Ring Kit Included: No
Mounting Hardware Included: No
Mounting Strap Included: No
Fuel Tank Material: Steel
Fuel Tank Color: Silver painted
Quantity: Sold individually.
Notes: Tank is 1 in. deeper than stock. This tank includes a universal 73-10 Ohm sending unit, installed Aeromotive 200 Stealth electric fuel pump, and billet aluminum fuel pump hanger. Stealth Fuel Tanks are not engineered for competition drag racing or road racing applications where extreme acceleration and cornering will occur with fuel levels lower than 1/2 tank.
