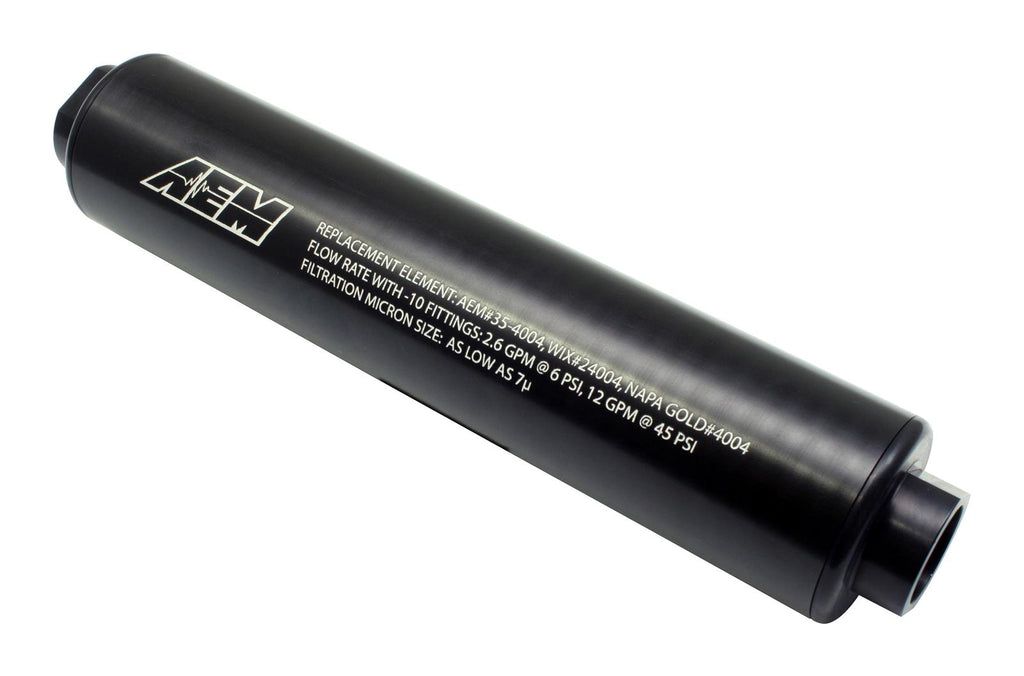

AEM Electronics Universal High-Flow Inline Fuel Filters 25-201BK

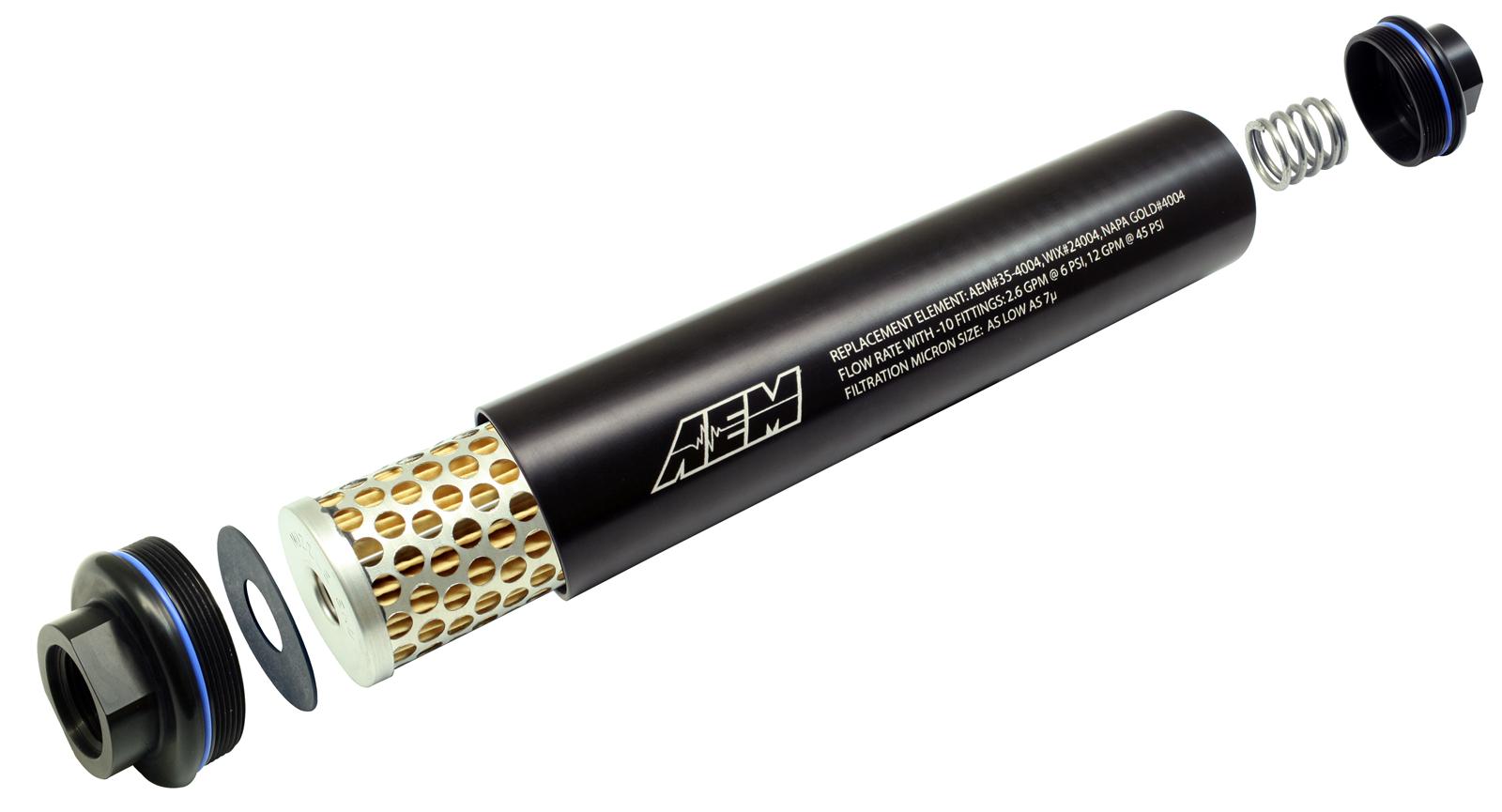

Designed with racers in mind, AEM Electronics universal high-flow inline fuel filters can process an astounding 12.32 gpm at 45 psi and 2.63 gpm at 6 psi. This maximum flow and filtration ensure top performance when using gasoline, alcohol, or blended fuels. The housing is machined from 6061-T6 billet aluminum and then hard anodized black, while all sealing gaskets and O-rings are made of Viton ®, proven to resist chemicals and extreme temperatures.

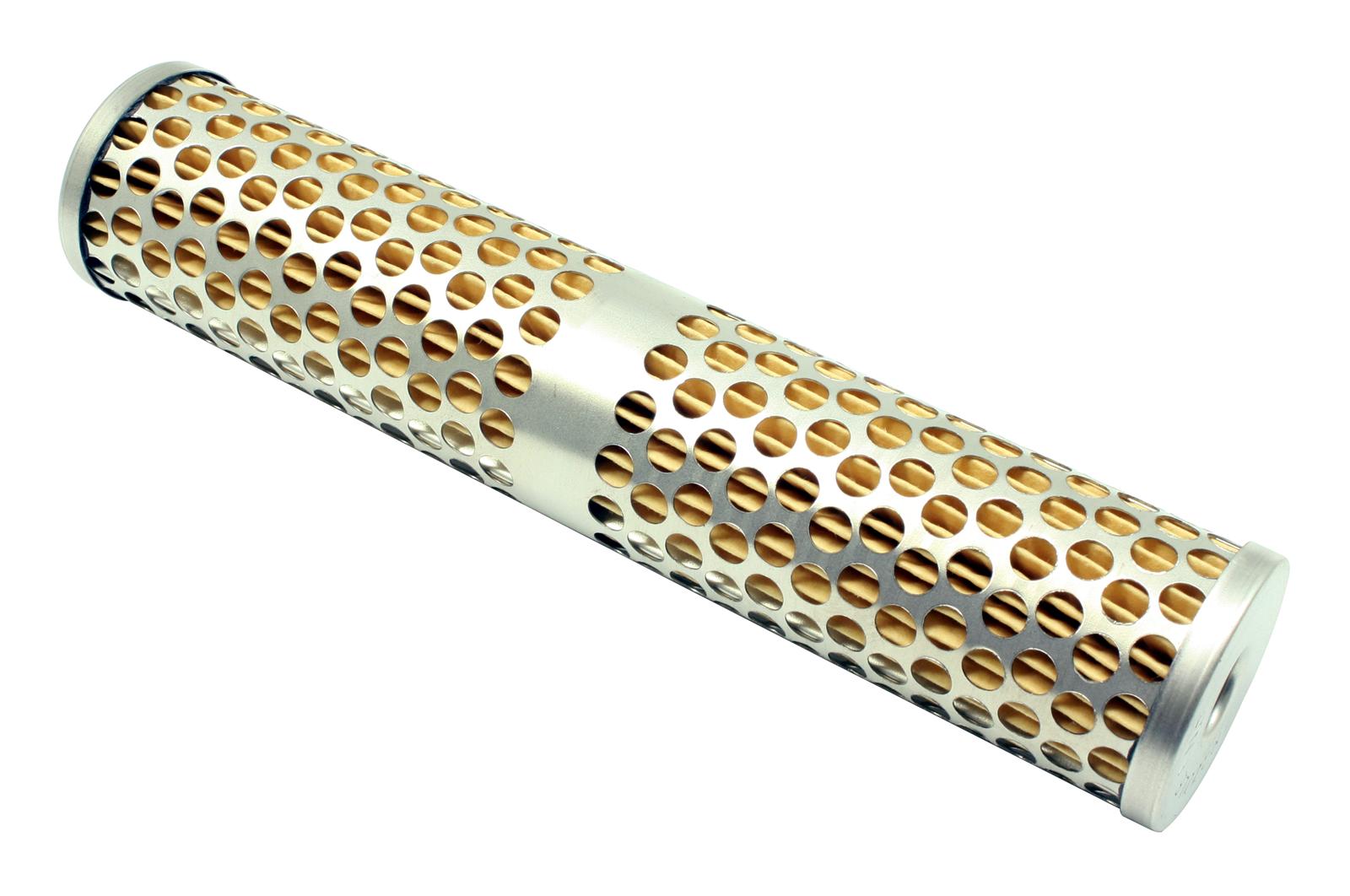

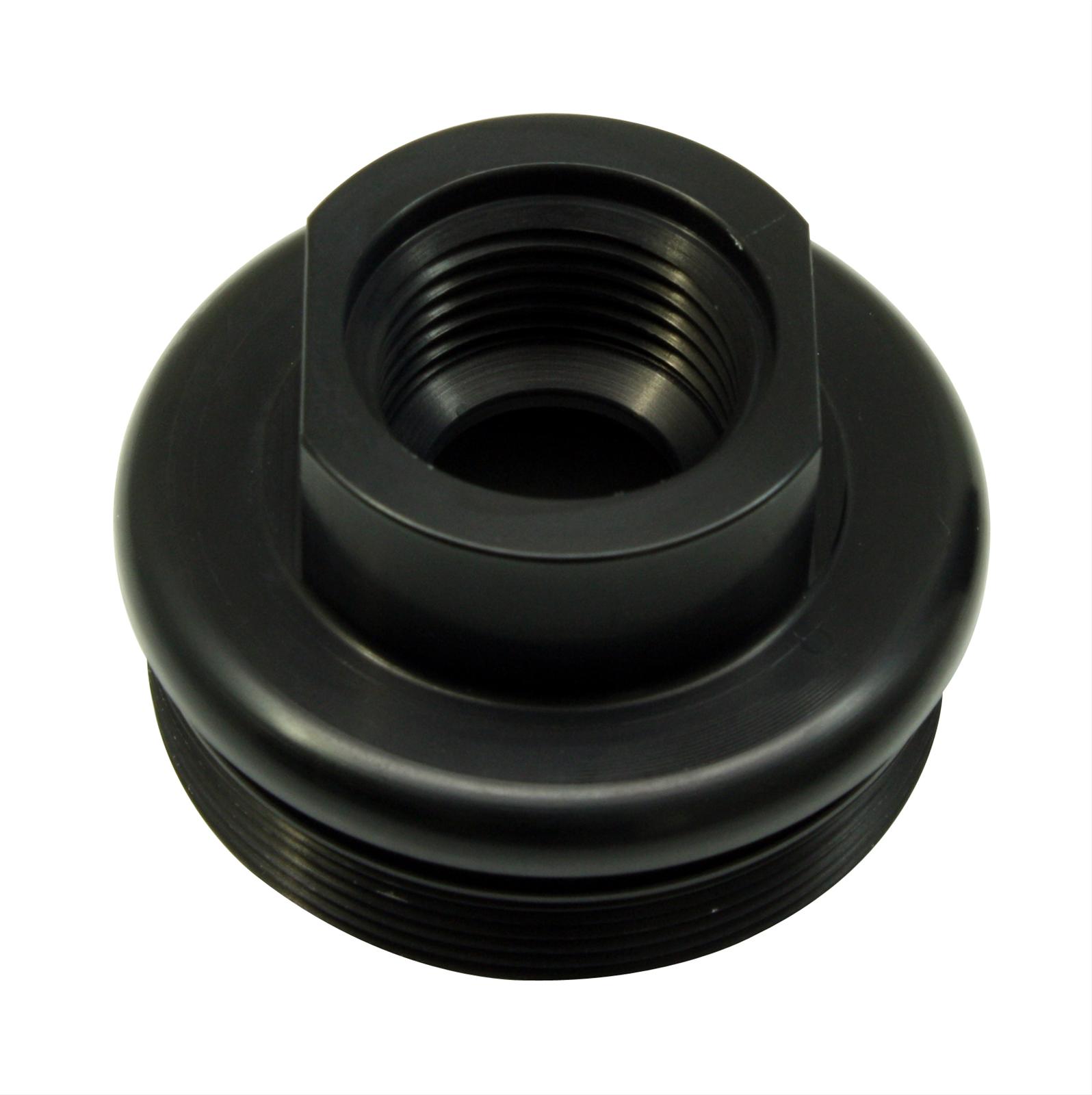

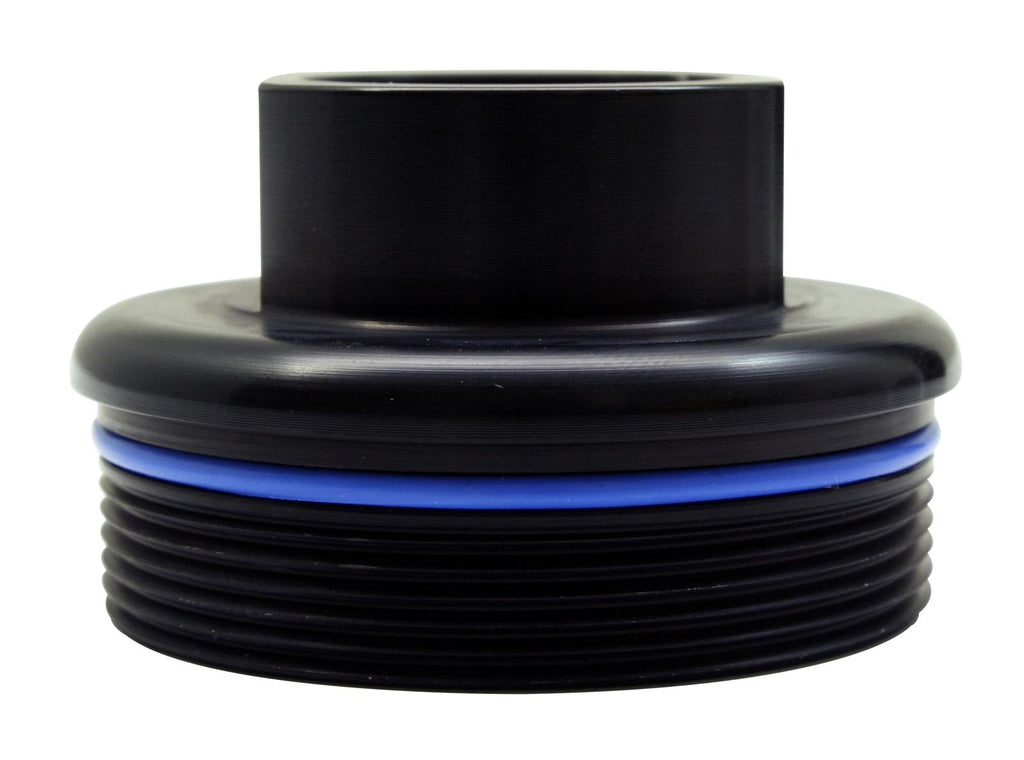

The end caps have been machined with -10 AN female fittings and an O-ring receiver groove. Inside, the fabric element can filter as low as 7 microns. AEM Electronics universal high-flow inline fuel filters measure 2 in. O.D. by 10 in. long for an easy and versatile installation. Replacement filter cartridges are commonly available, sold separately. Clean fuel means better performance—trust the AEM racing solutions that are engineered to outperform!
Brand: AEM Electronics
Manufacturer's Part Number: 25-201BK
Part Type: Fuel Filters
Product Line: AEM Electronics Universal High-Flow Inline Fuel Filters
HP Direct Part Number: AVM-25-201BK
UPC: 840879021528
Fuel Filter Style: Inline
Inlet Quantity: 1
Fuel Filter Inlet Size: -10 AN
Inlet Attachment: Female straight cut O-ring
Outlet Quantity: 1
Fuel Filter Outlet Size: -10 AN
Outlet Attachment: Female straight cut O-ring
Filter Element Included: Yes
Smallest Particle Filtered: 7 microns
Filter Element Material: Fabric
Filter Housing Material: Aluminum
Filter Housing Color: Black
Overall Length (in.): 10.00 in.
Outside Diameter (in.): 2.000
Mounting Bracket Included: No
Fittings Included: No
Clamps Included: No
Quantity: Sold individually.
