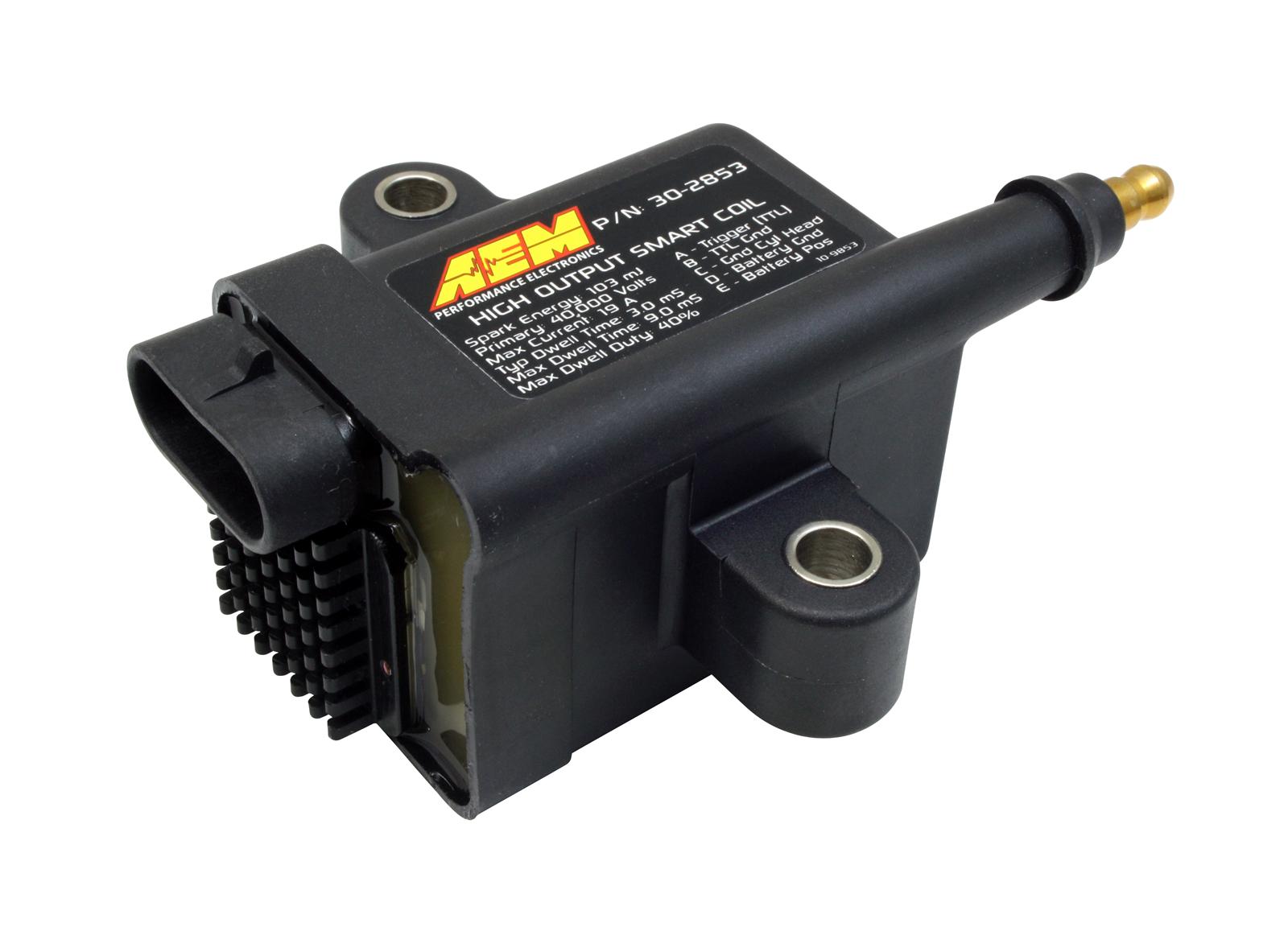

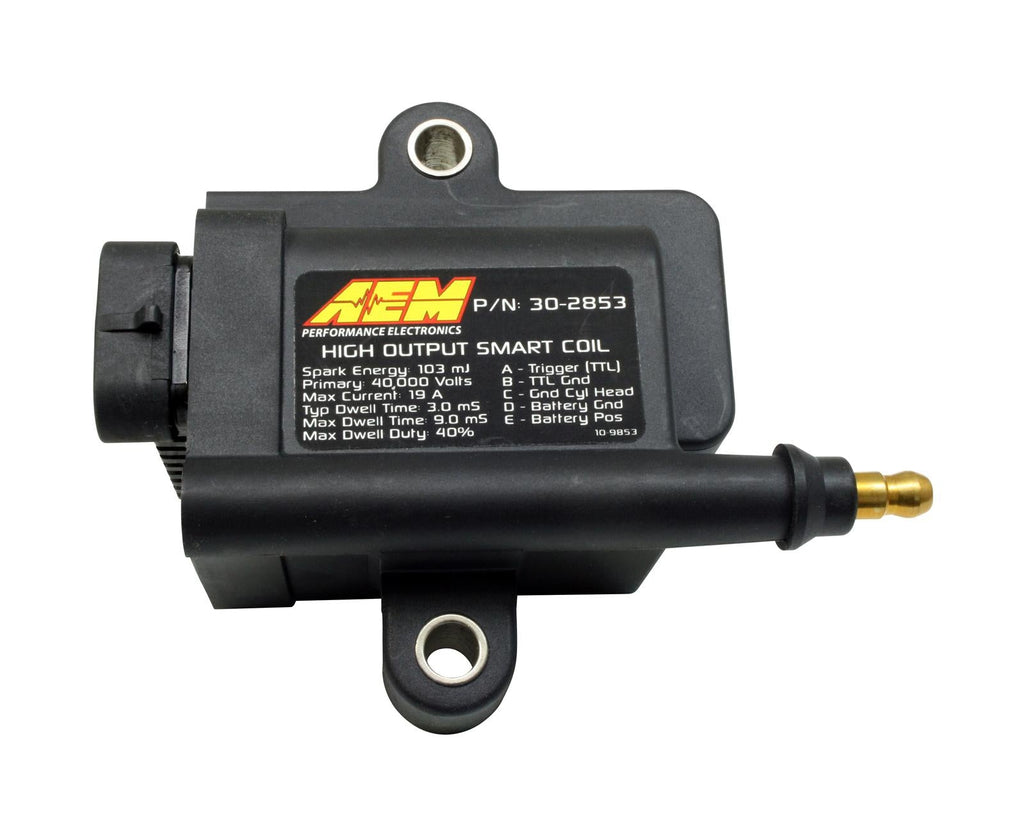

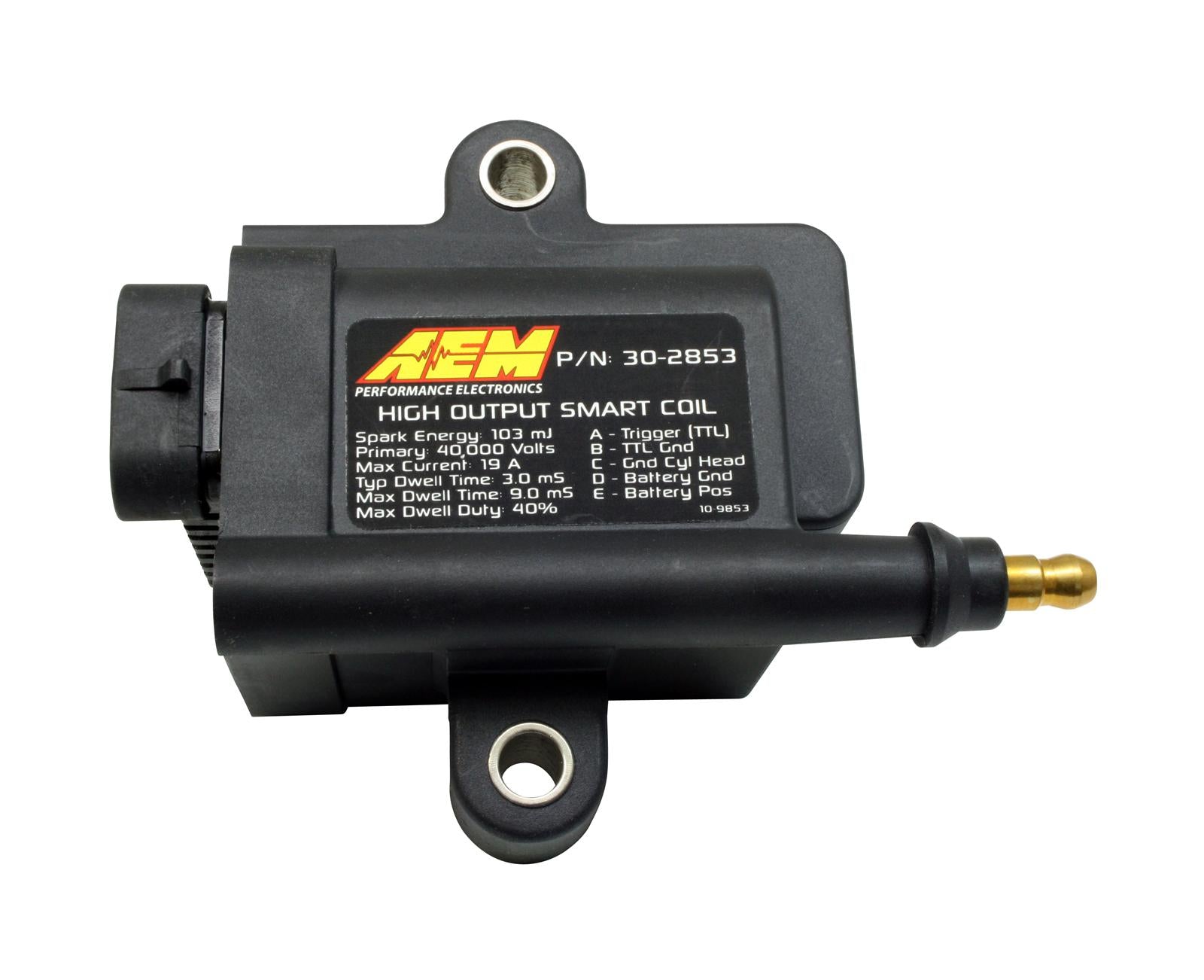

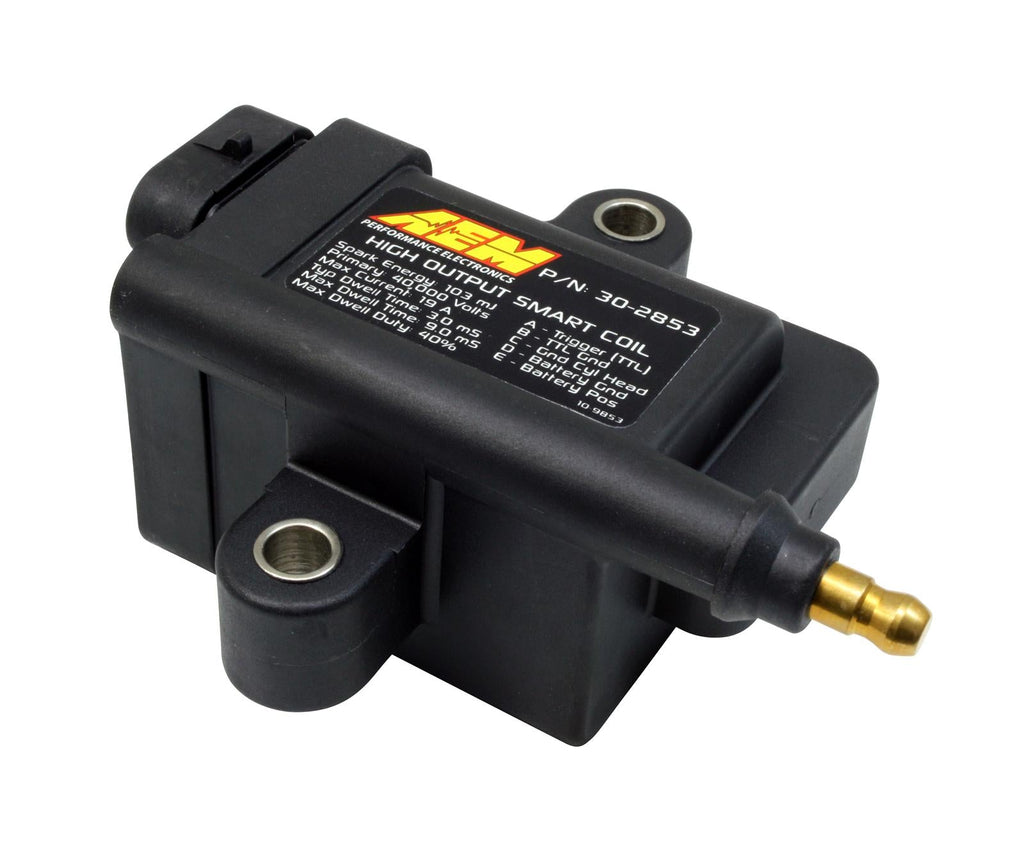

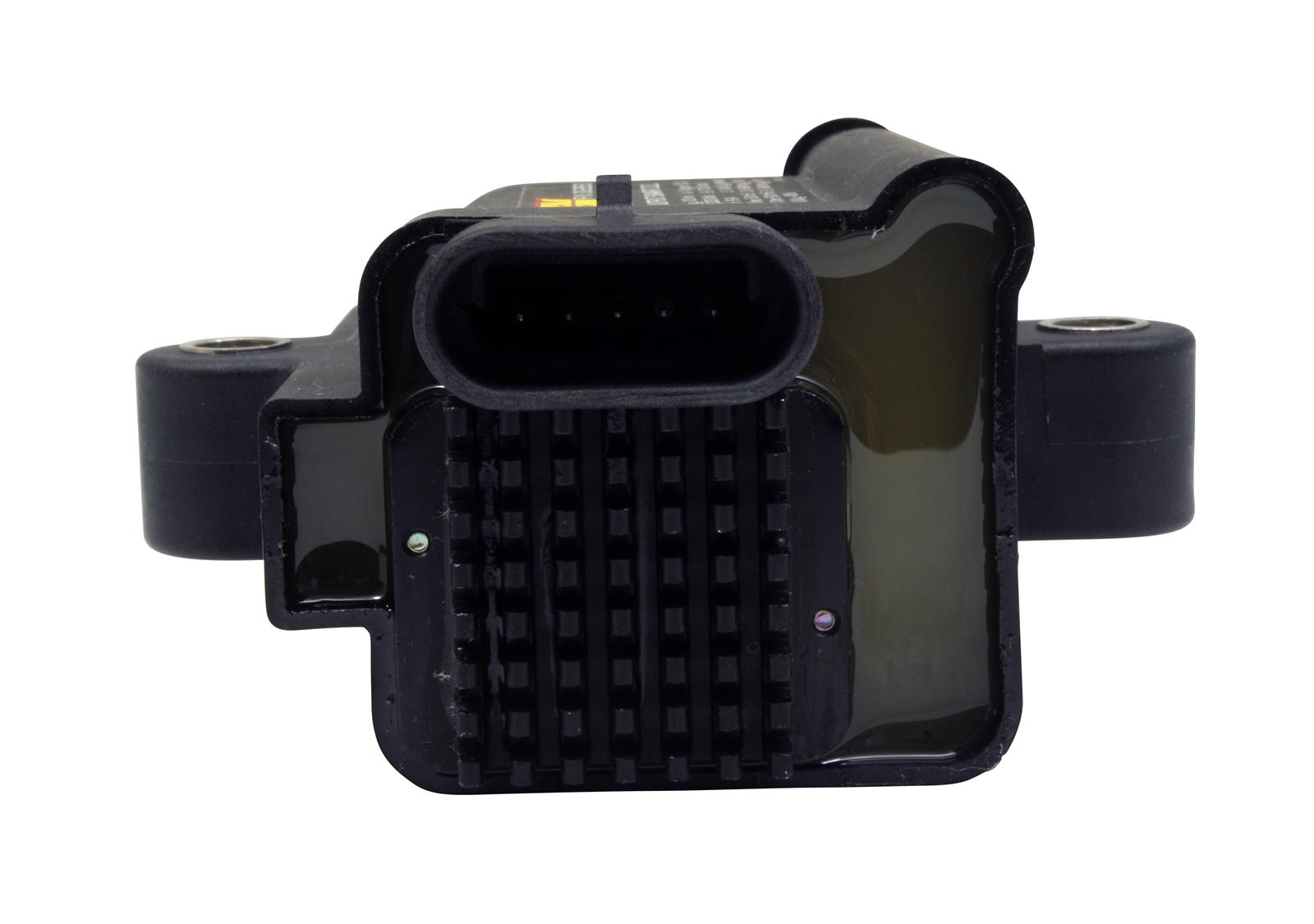

AEM Electronics IGBT Inductive Smart Coils 30-2853

AEM Electronics high-output, insulated gate bipolar transistor (IGBT) inductive Smart Coils are designed for use on applications that do not have an external ignitor. The tradeoff between adequate spark energy and adequate spark duration ends with AEM's inductive Smart Coils, the first inductive coils that deliver CDI-like spark energy and voltage, and the long spark duration necessary for vehicles running high compression, high RPM, forced induction and/or nitrous engines. AEM's inductive Smart Coils each deliver over 100mJ of spark energy and a minimum of 40,000 Volts! That's as much as most CDI systems, without the need for a CDI module! They also provide very long spark duration at full energy, unlike CDI systems and multiple spark systems which fire off small spark events prior to and after their CDI burst to mimic longer spark duration. Smart Coil's feature a weather and shockproof design that can be mounted directly to the engine, and they cost less than other aftermarket LS coils. Upgrade your ignition on your forced induction, nitrous, or high RPM engine today with AEM Electronics IGBT inductive Smart Coils.Brand: AEM Electronics
Manufacturer's Part Number: 30-2853
Part Type: Ignition Coils
Product Line: AEM Electronics IGBT Inductive Smart Coils
HP Direct Part Number: AVM-30-2853
UPC: 840879021818
Coil Style: Coil pack
Coil Wire Attachment: Male/HEI
Coil Color: Black
Maximum Voltage: 40,000 V
Turns Ratio: 71:1
Peak Current: 102 mA
Mounting Bracket Included: No
Coil Wire Included: No
Ballast Resistor Included: No
Coil Shape: Rectangular

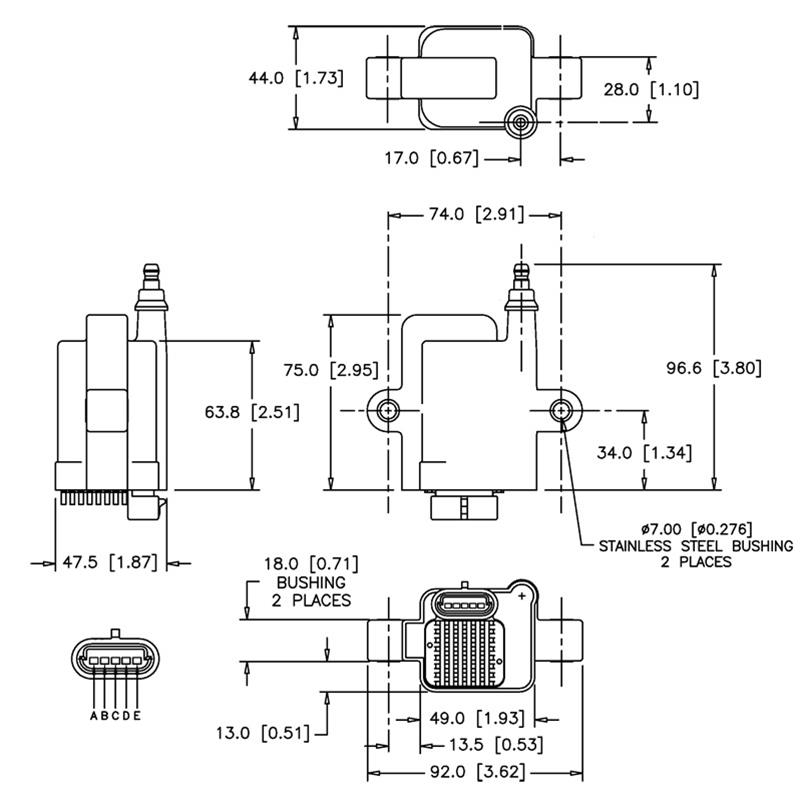

Height (in.): 2.510 in.
Length (in.): 3.800 in.
Width (in.): 1.732 in.
Quantity: Sold individually.

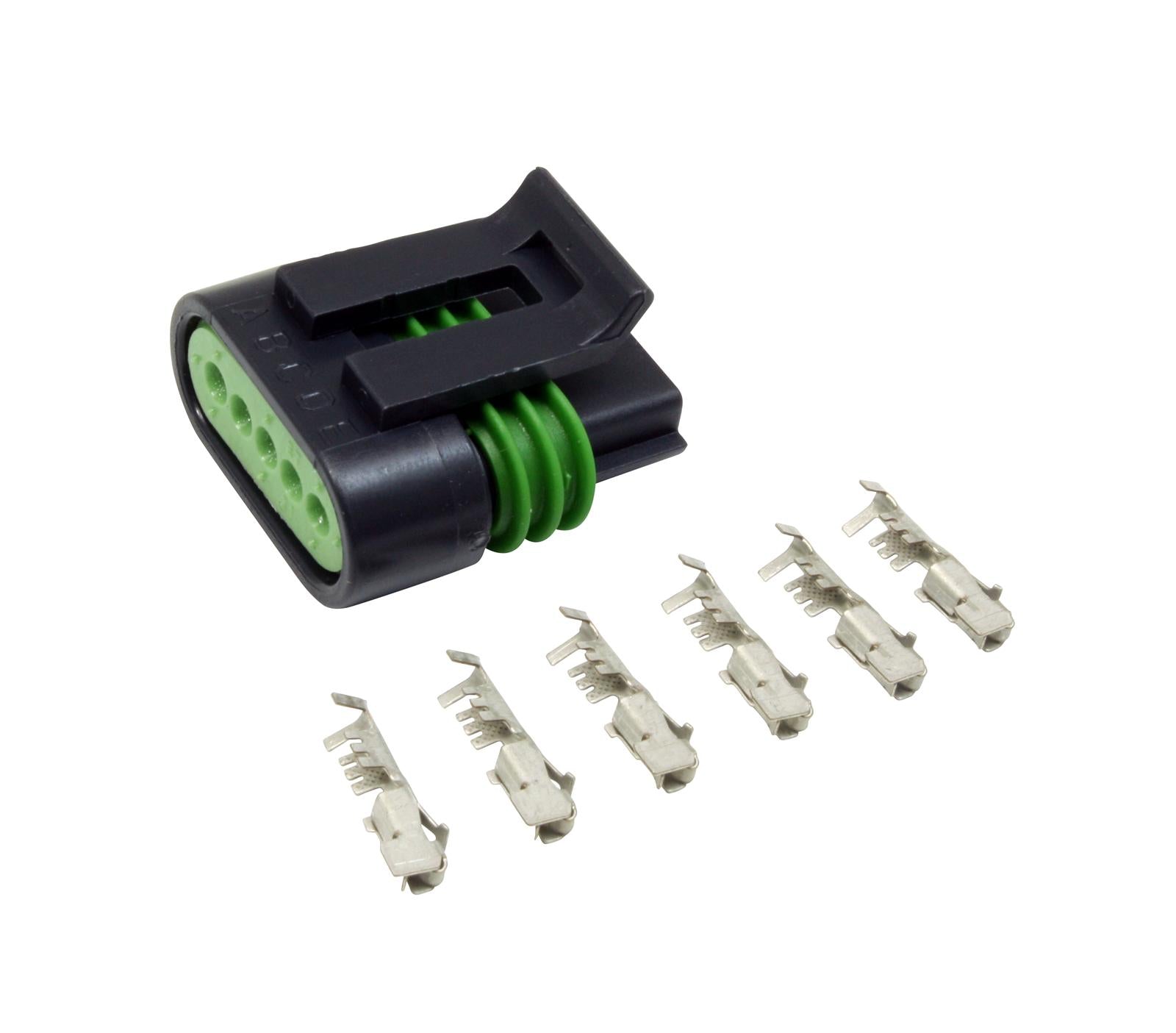

Notes: Includes coil, connector, connector pins, pin lock, weather seals, and dielectric grease. For use with AEM Twin Fire or aftermarket ignition modules. Not for use with distributed applications. AEM IGBT smart coils are intended for coil-near-plug use only.
