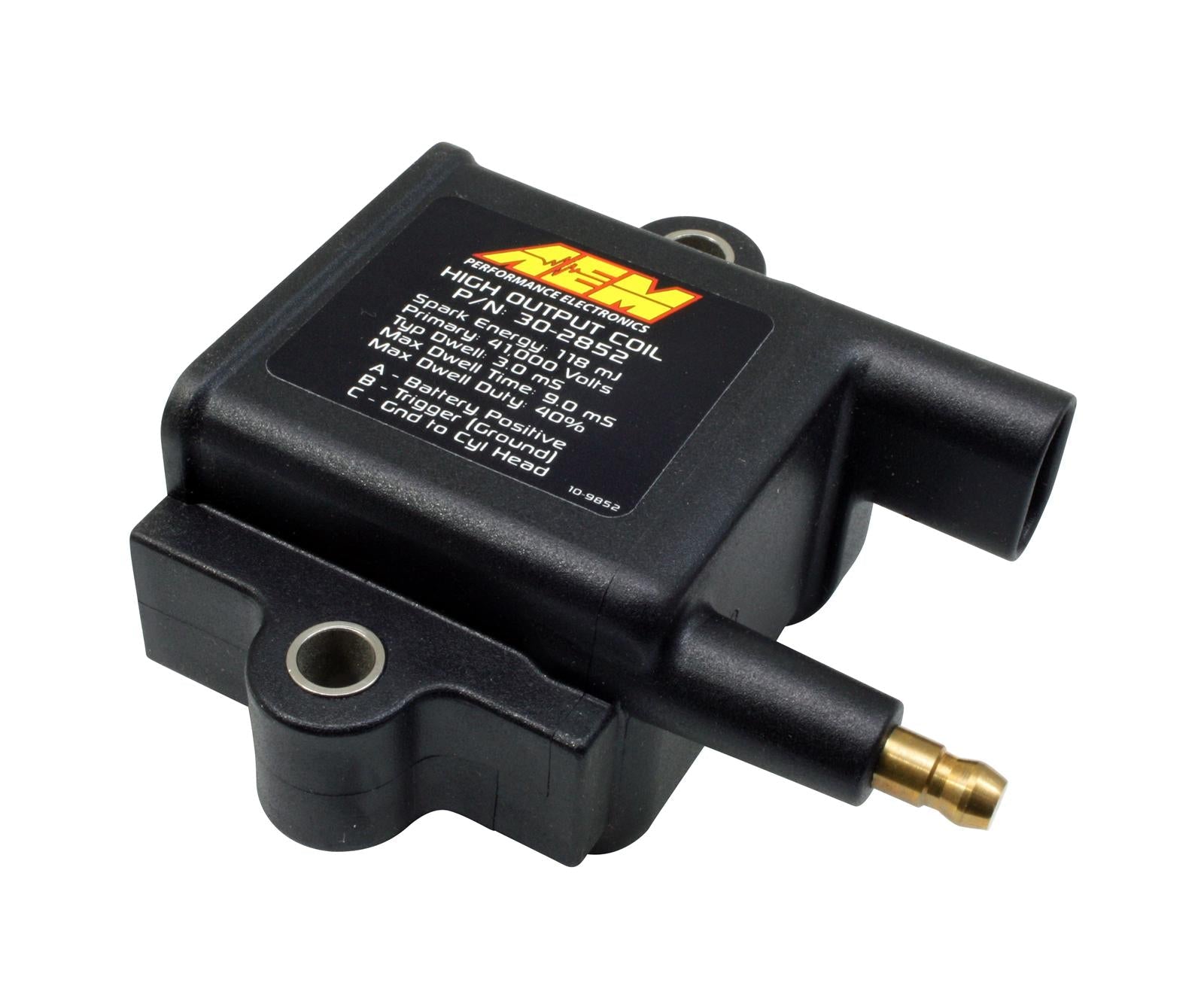

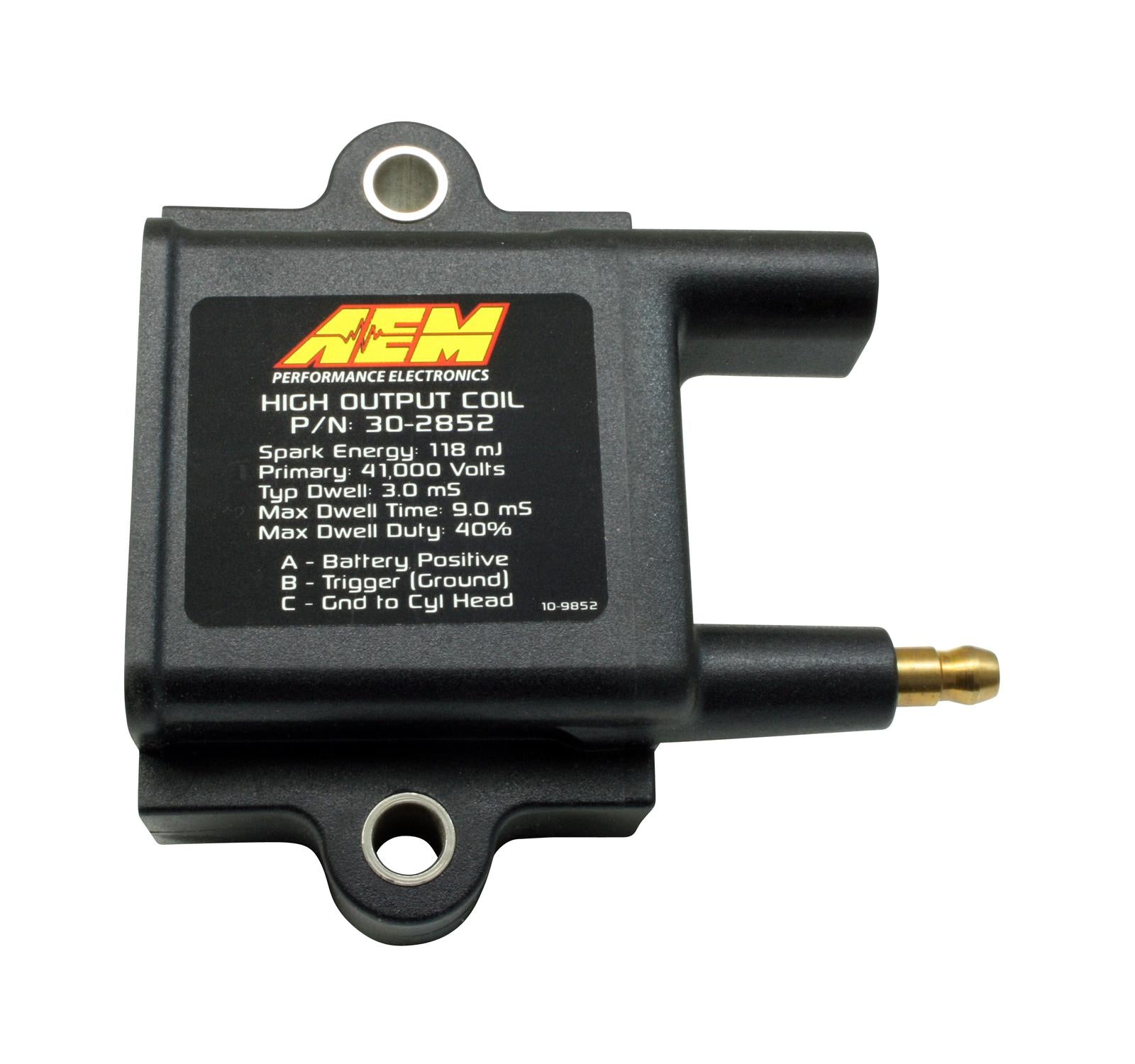

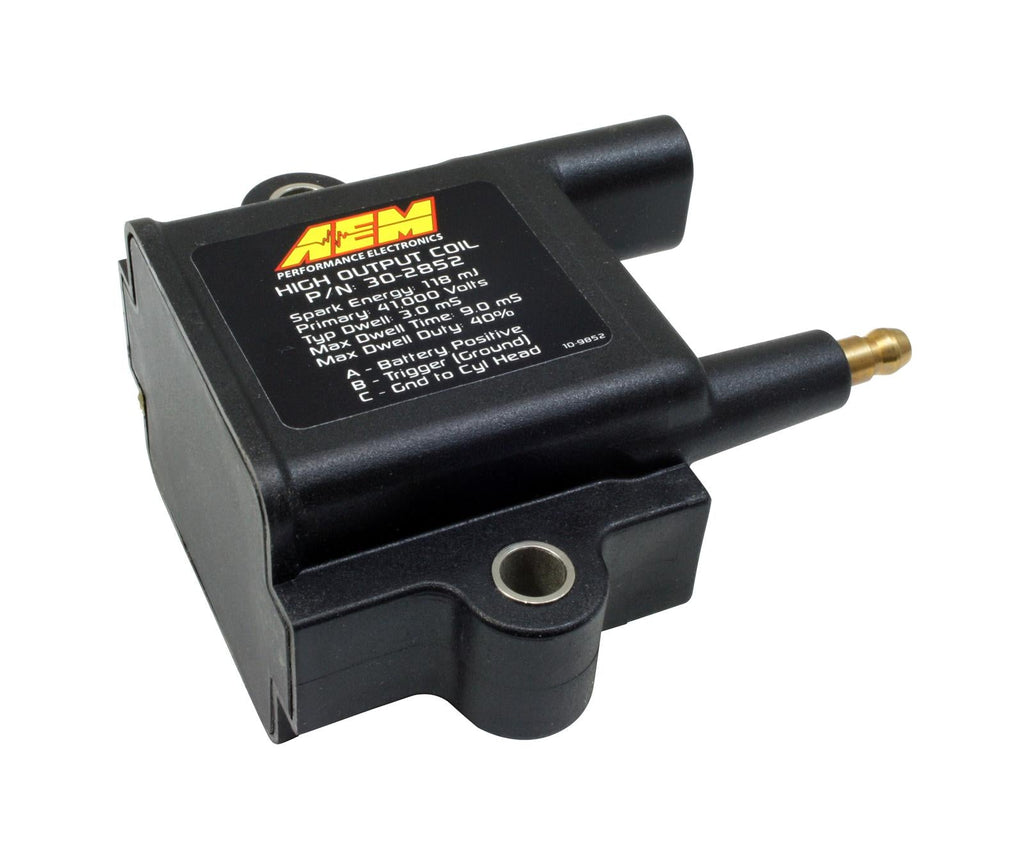

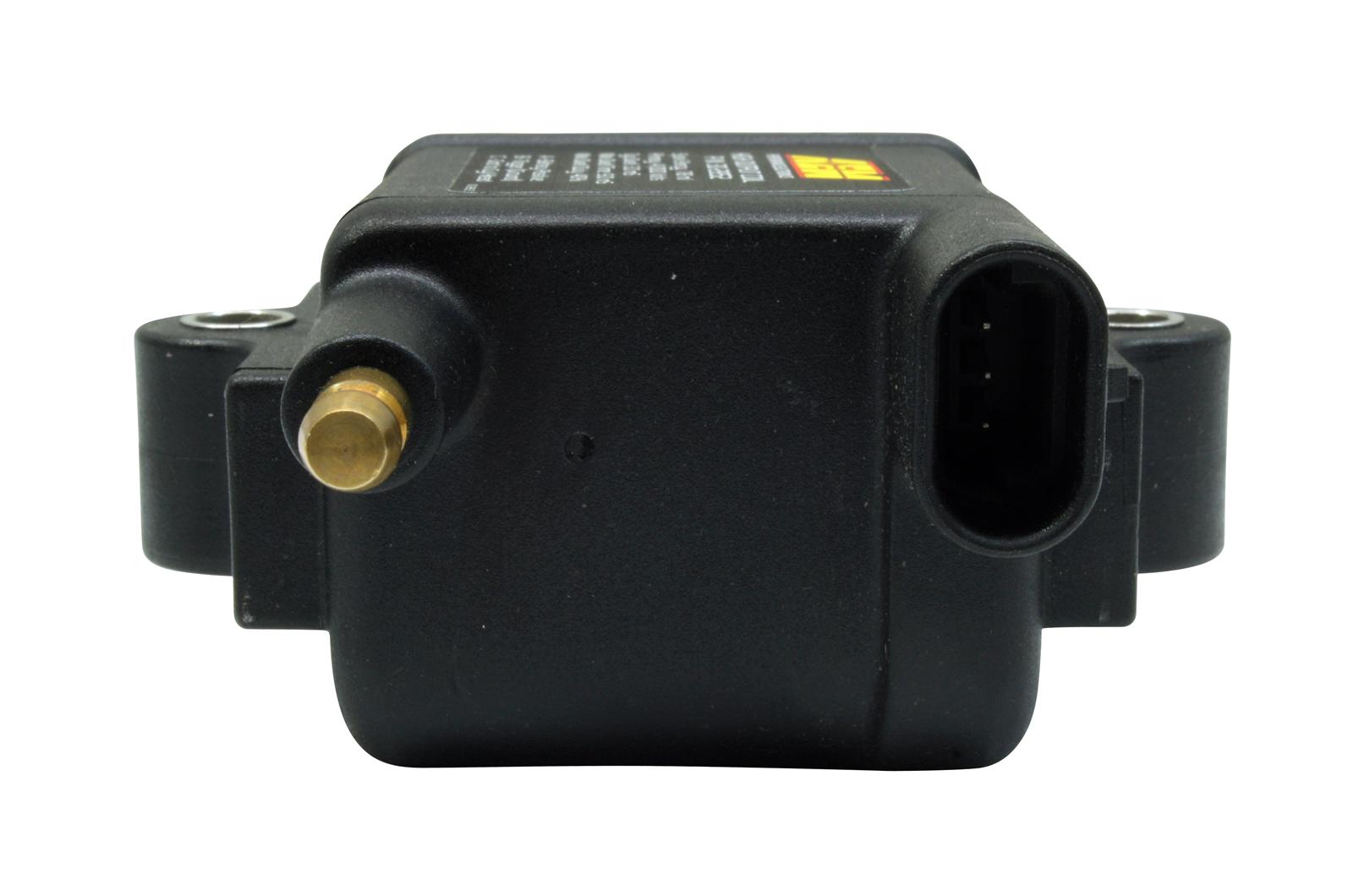

AEM Electronics High Output Inductive Dumb Ignition Coils 30-2852

AEM Electronics high output inductive dumb ignition coils ain't so dumb! Designed to be used with an igniter, these AEM "dumb" coils offer CDI-like spark energy and voltage, plus the longer spark duration of inductive coils--and that's pretty smart! But that's not all. They easily install in the place of your existing coils, are shock and weather-proof, affordable, and they deliver world-class performance. That makes you smart for choosing them! If you want massive spark energy with an incredibly long spark duration, AEM high output inductive dumb ignition coils are an intelligent solution for any enthusiast running boost, nitrous, or high rpm.Brand: AEM Electronics
Manufacturer's Part Number: 30-2852
Part Type: Ignition Coils
Product Line: AEM Electronics High Output Inductive Dumb Ignition Coils
HP Direct Part Number: AVM-30-2852
UPC: 840879021801
Primary Resistance: 0.500 ohms
Coil Wire Attachment: Male/HEI
Coil Color: Black
Maximum Voltage: 41,000 V
Turns Ratio: 71:1
Secondary Resistance: 8.50K ohms
Inductance: 4.80 mH
Peak Current: 100 mA
Spark Duration: 3.2 mS
Mounting Bracket Included: Yes
Coil Wire Included: No
Ballast Resistor Included: No
Coil Shape: Square
Quantity: Sold individually.

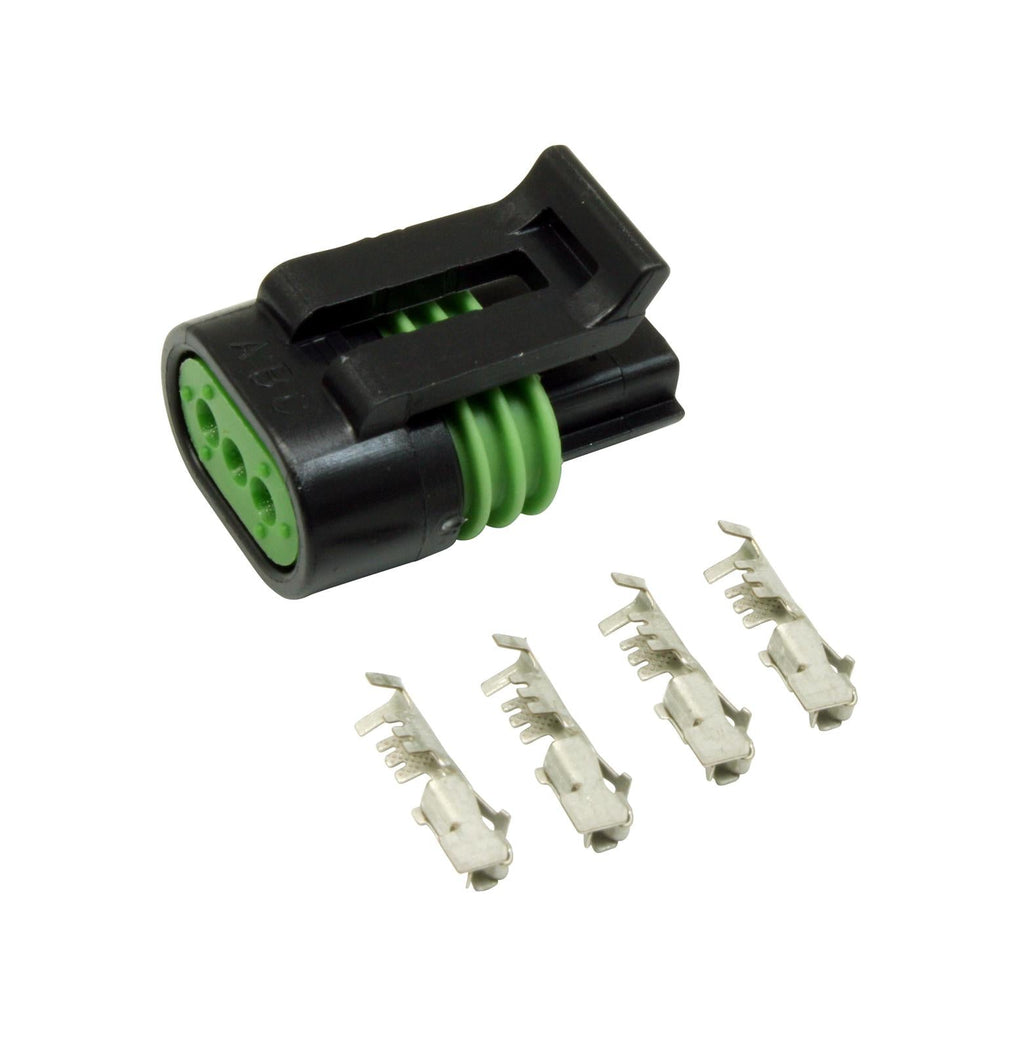

Notes: Includes connector and four contacts. For use with external ignitor systems or ECU with ignitor built into it.
