Description

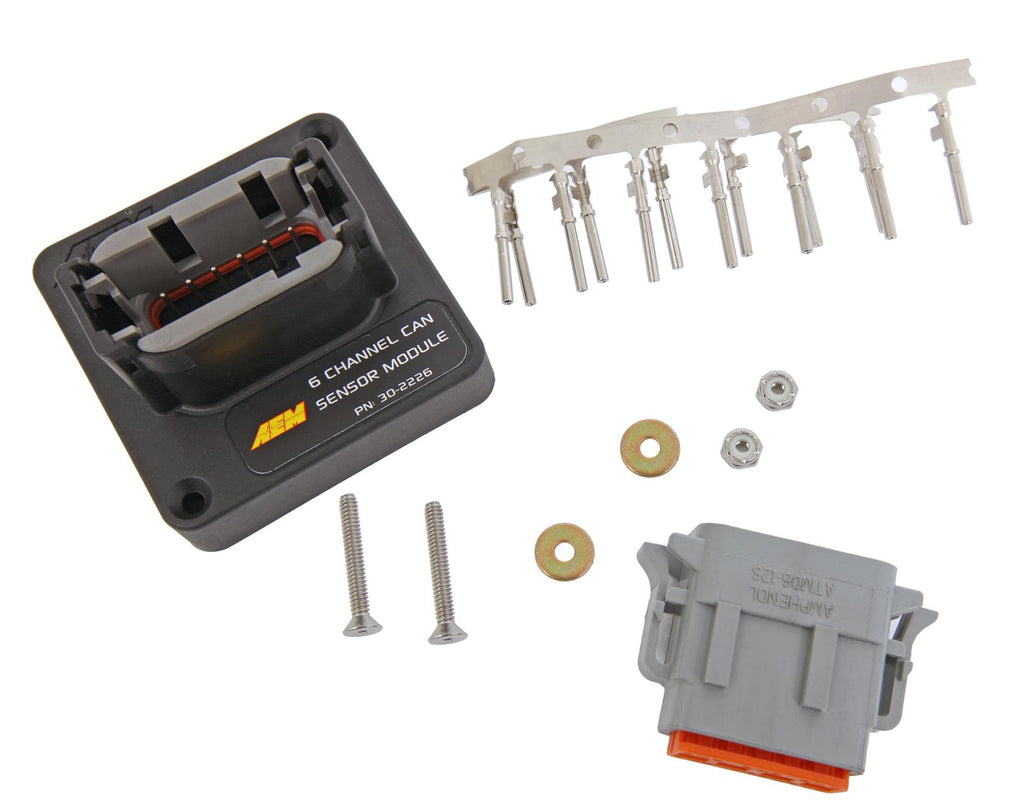

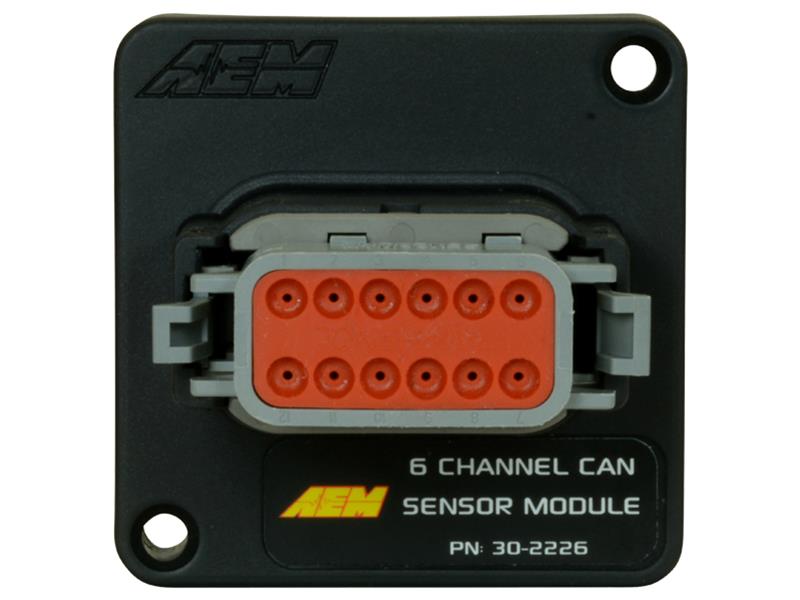

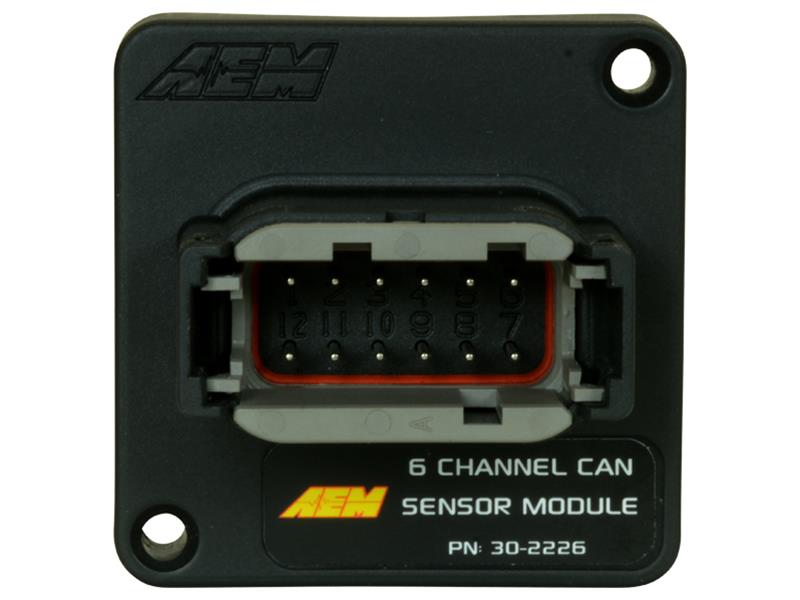

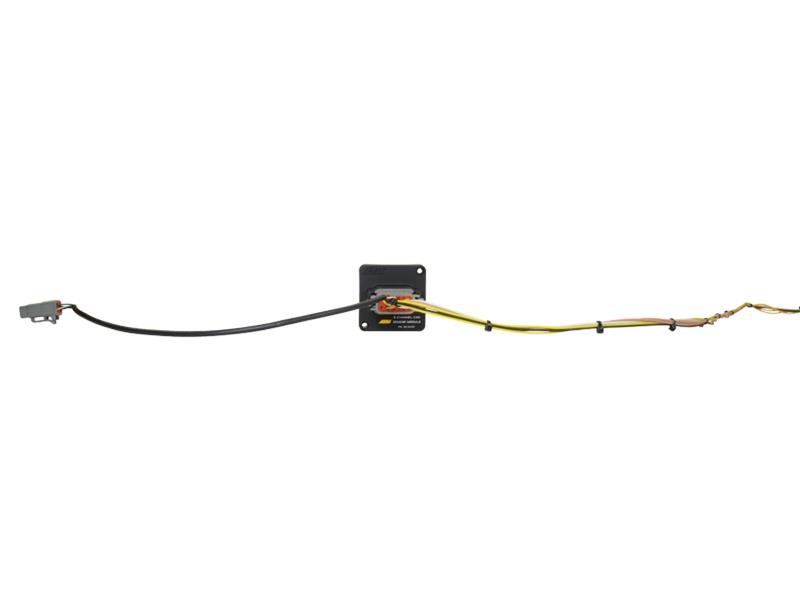

AEM Electronics 6-Channel CAN sensor modules provide an affordable and easy way to add temperature, pressure, fuel level, and tachometer signals on to your CD Carbon Digital dash through AEMnet CAN bus. The modules support the Bosch CAN 2.0b standard, making it compatible with many third-party devices that accept a programmable CAN bus input, which also allows you to add additional channels to a non-AEM ECU, dash, or logger.
Features include:
* Two temperature (thermistor) inputs
* Two dedicated 0 to 5 V analog inputs
* One dedicated fuel level input (0 to 250 Ohm range)
* One tachometer/coil input
* Fixed CAN bus speed, header length, and base address
* IP67 potted enclosure/sealed connector—dust-tight and protected against water spray
* Protected inputs
* 12-pin DTM-style connector and pins
Brand: AEM Electronics
Manufacturer's Part Number: 30-2226
Part Type: Data Acquisition Components
Product Line: AEM Electronics 6-Channel CAN Sensor Modules
HP Direct Part Number: AVM-30-2226
UPC: 00840879026073
Data Acquisition Component Type: Sensor input module
Quantity: Sold individually.
Features include:
* Two temperature (thermistor) inputs
* Two dedicated 0 to 5 V analog inputs
* One dedicated fuel level input (0 to 250 Ohm range)
* One tachometer/coil input
* Fixed CAN bus speed, header length, and base address
* IP67 potted enclosure/sealed connector—dust-tight and protected against water spray
* Protected inputs
* 12-pin DTM-style connector and pins
Brand: AEM Electronics
Manufacturer's Part Number: 30-2226
Part Type: Data Acquisition Components
Product Line: AEM Electronics 6-Channel CAN Sensor Modules
HP Direct Part Number: AVM-30-2226
UPC: 00840879026073
Data Acquisition Component Type: Sensor input module
Quantity: Sold individually.
