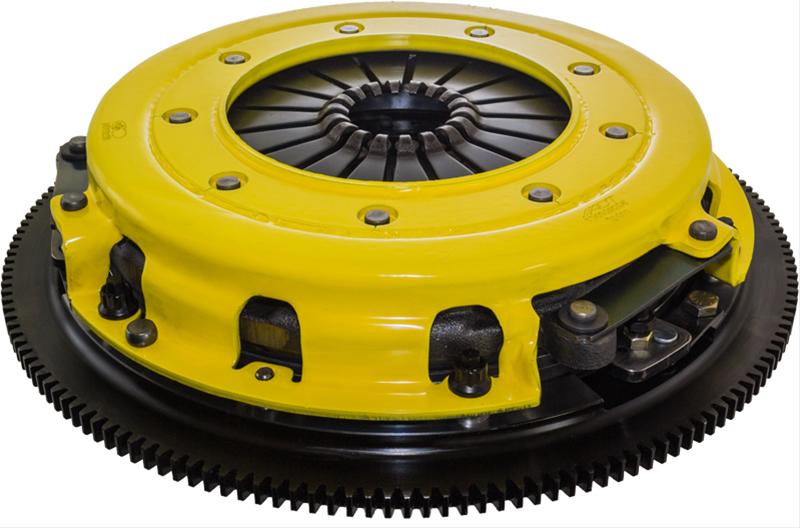

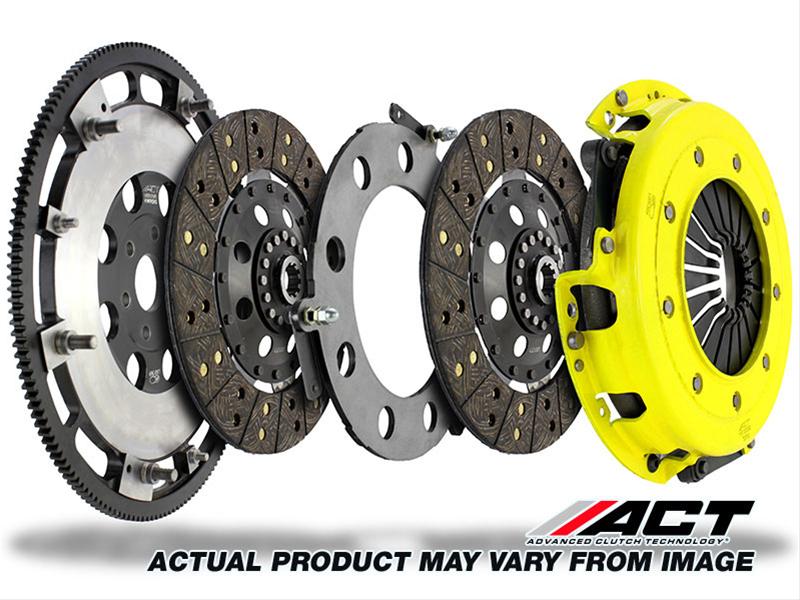

ACT Xtreme Twin-Disc Clutch Kits T2R-G05

Transfer power into motion with ACT Xtreme twin-disc clutch kits. Available for street and race use, these clutch kits feature twice the number of disc surfaces for better wear, heat capacity, and long life compared to single disc kits. They offer a proprietary Positive Lift Floater System design, which results in quiet operation with no floater rattle and no posts to wear. Maximize your street and track performance with the solid quality and exceptional value of ACT Xtreme twin-disc clutch kits.

More product features include:

* CNC-machined and dynamically balanced flywheel ensures trouble-free installation and operation
* 40 to 120 percent pressure plate clamp load increase
* Pedal feel is stiff to moderate
* Recommended disc: Street/Race







Brand: Advanced Clutch Technology
Manufacturer's Part Number: T2R-G05
Part Type: Clutch Kits
Product Line: ACT Xtreme Twin-Disc Clutch Kits
HP Direct Part Number: ACL-T2R-G05
UPC: 00842385021238
Clutch Usage: Performance
Clutch Disc Quantity: 2
Flywheel Included: Yes
Input Spline Quantity: 26
Input Shaft Diameter: 1.125 in.
Disc Diameter (in.): 10.500 in.
Disc Diameter (mm): 267mm
Disc Material: Ceramic
Disc Style: 6-paddle
Hub Style: Solid
Pressure Plate Style: Diaphragm
Throwout Bearing Included: No
Alignment Tool Included: Yes
Pilot Bushing Included: No
Flywheel Material: Chromoly
Engine Balance: Internal
Counterweight Assist: No
Mounting Hardware Included: Yes
Quantity: Sold as a kit.
Notes: SFI certified 1.2; torque capacity: 1,240 lbs.-ft.
Special Attention: Recommended for race use only.
