ACT Xtreme Race Clutch Kits VW9-XTG6

Carefully engineered, precisely assembled, and accurately balanced, the ACT Xtreme race clutch kits feature the Xtreme pressure plate and 6-pad race disc for the most demanding driver. The ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a 4-stage, heat-treating process for unparalleled performance. The pressure plates have precision cover stampings to provide rigidity and consistency. The 6-pad race disc uses select ceramic friction materials, while the chromoly hub is heat-treated for strength and durability. The race disc engagement is harsher, but shifts faster, while delivering moderate to light pedal effort, with OE to mild gear rattle. Order the kit recommended for your specific vehicle and engine size.

Features and benefits:

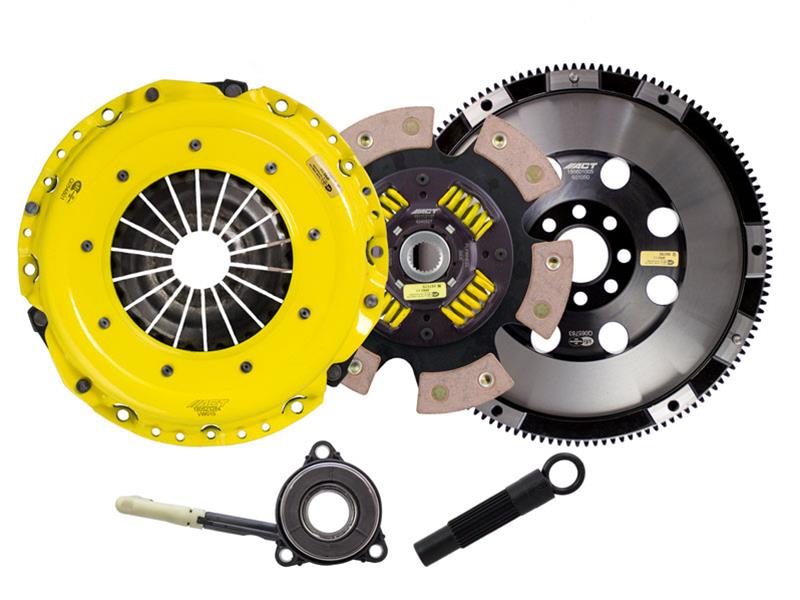

* Includes a pressure plate, 6-pad race disc, release bearing, and alignment tools
* 6-pad race disc designed to dampen torsional vibration
* Moderate friction life
* Recommended for high horsepower street or race useBrand: Advanced Clutch Technology
Manufacturer's Part Number: VW9-XTG6
Part Type: Clutch Kits
Product Line: ACT Xtreme Race Clutch Kits
HP Direct Part Number: ACL-VW9-XTG6
UPC: 842385018450
Clutch Usage: Performance
Clutch Disc Quantity: 1
Flywheel Included: Yes
Input Spline Quantity: 23
Input Shaft Diameter: 0.938 in.
Disc Diameter (in.): 9.400 in.
Disc Diameter (mm): 240mm
Disc Material: Ceramic
Disc Style: 6-paddle
Hub Style: Sprung
Pressure Plate Style: Diaphragm
Throwout Bearing Included: Yes
Throwout Bearing Style: Standard
Alignment Tool Included: Yes
Pilot Bushing Included: No
Flywheel Material: Chromoly
Ring Gear Tooth Quantity: 132-tooth
Flywheel Bolt Quantity: 8
Engine Balance: Internal
Counterweight Assist: No
Mounting Hardware Included: Yes
Quantity: Sold as a kit.
Notes: Torque capacity 723 ft. lbs.
