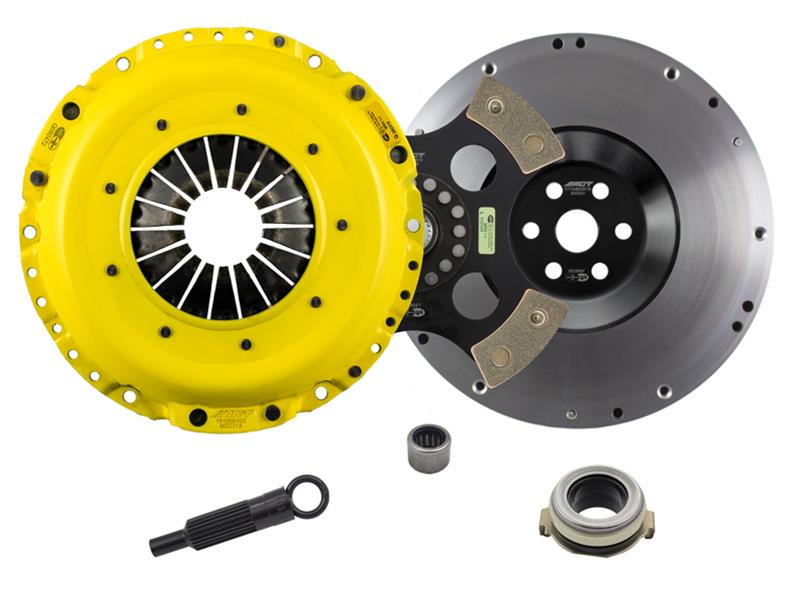

ACT Xtreme Clutch Kits ZX5-XTR4

ACT Xtreme clutch kits pave the road to high performance by meshing solid products, outstanding quality, and exceptional value. These Xtreme clutch kits with racing or street discs are based on solid engineering principles. They afford a clamp load increase of 50 to 100 percent with moderate-to-stiff pedal feel, and many of these new (not rebuilt) units are SFI-certified to ensure safety. You've spent long hours building your engine; now put it in motion with the smooth, precise feel and longer life of an ACT Xtreme clutch kit.Brand: Advanced Clutch Technology
Manufacturer's Part Number: ZX5-XTR4
Part Type: Clutch Kits
Product Line: ACT Xtreme Clutch Kits
HP Direct Part Number: ACL-ZX5-XTR4
UPC: 842385018863
Clutch Usage: Performance
Clutch Disc Quantity: 1
Flywheel Included: Yes
Input Spline Quantity: 23
Input Shaft Diameter: 1.000 in.
Disc Diameter (in.): 9.400 in.
Disc Diameter (mm): 240mm
Disc Material: Ceramic
Disc Style: 4-paddle
Hub Style: Solid
Pressure Plate Style: Diaphragm
Throwout Bearing Included: Yes
Alignment Tool Included: Yes
Pilot Bushing Included: Yes
Pilot Bushing Material: Steel roller bearing
Flywheel Material: Billet steel
Ring Gear Tooth Quantity: 112-tooth
Flywheel Bolt Quantity: 6
Counterweight Assist: No
Mounting Hardware Included: Yes
Quantity: Sold as a kit.
