ACT Twin Disc Maxx Xtreme Clutch Kits T3R-F06

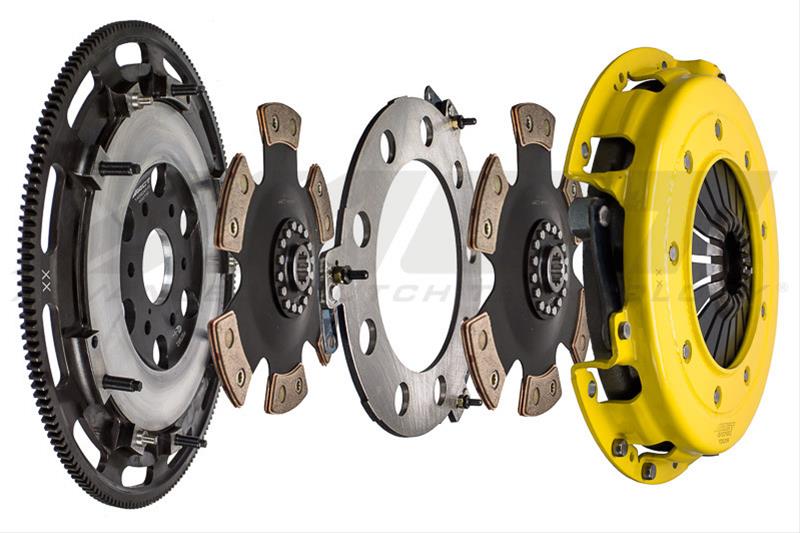

ACT Twin Disc Maxx Xtreme clutch kits offers twice the number of disc surfaces for better wear, heat capacity, and longer life. Designed for quiet operation, with no floater rattle or posts to wear out, ACT twin discs undergo an exclusive 4-stage, heat-treating process on all diaphragms—and they have the ability to adjust for disc wear and provide equal disengagement for discs. The kits include dynamically computer-balanced pressure plate and a CNC-machined flywheel for trouble-free installation and smooth operation at high rpm. The kits are available with either lightweight 6-pad rigid race discs made with high-quality ceramic friction materials, or performance street rigid-hub discs featuring premium organic materials with a high copper content and steel-backed linings. Both feature heat-treated chromoly hubs. Choose an ACT Twin Disc Maxx Xtreme clutch kit for your high performance needs.Brand: Advanced Clutch Technology
Manufacturer's Part Number: T3R-F06
Part Type: Clutch Kits
Product Line: ACT Twin Disc Maxx Xtreme Clutch Kits
HP Direct Part Number: ACL-T3R-F06
UPC: 00842385022648
Clutch Usage: Performance
Clutch Disc Quantity: 2
Flywheel Included: Yes
Input Spline Quantity: 10
Input Shaft Diameter: 1.062 in.
Disc Diameter (in.): 10.500 in.
Disc Diameter (mm): 267mm
Disc Material: Ceramic
Disc Style: 6-paddle
Hub Style: Solid
Pressure Plate Style: Diaphragm
Throwout Bearing Included: No
Alignment Tool Included: Yes
Pilot Bushing Included: No
Flywheel Material: Chromoly
Ring Gear Tooth Quantity: 184-tooth
Flywheel Bolt Quantity: 6
Engine Balance: Internal
Counterweight Assist: No
Mounting Hardware Included: Yes
Quantity: Sold as a kit.
Notes: Torque capacity 1496 ft. lbs.
