ACCEL SuperBox CD Ignition Systems 61212

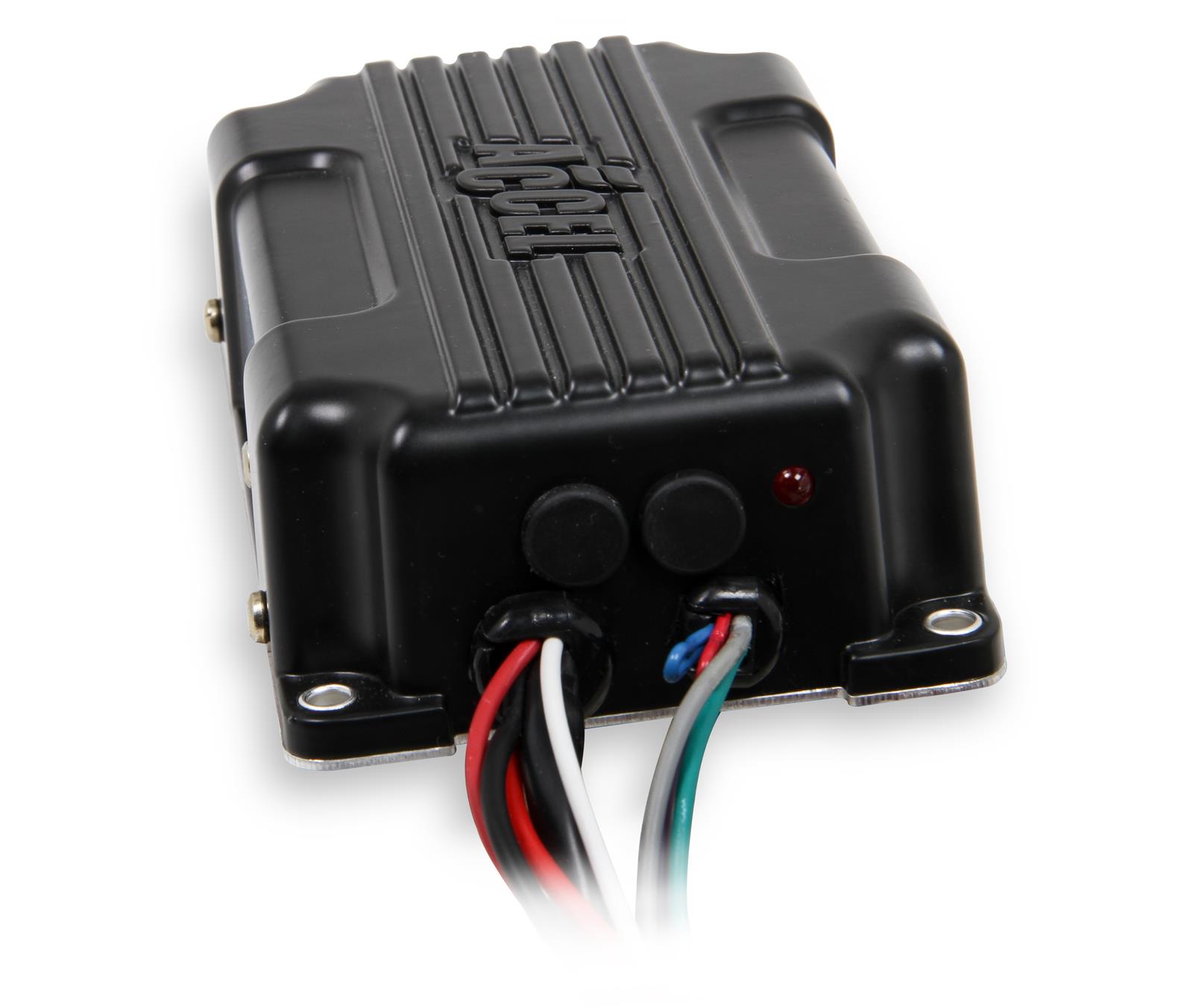

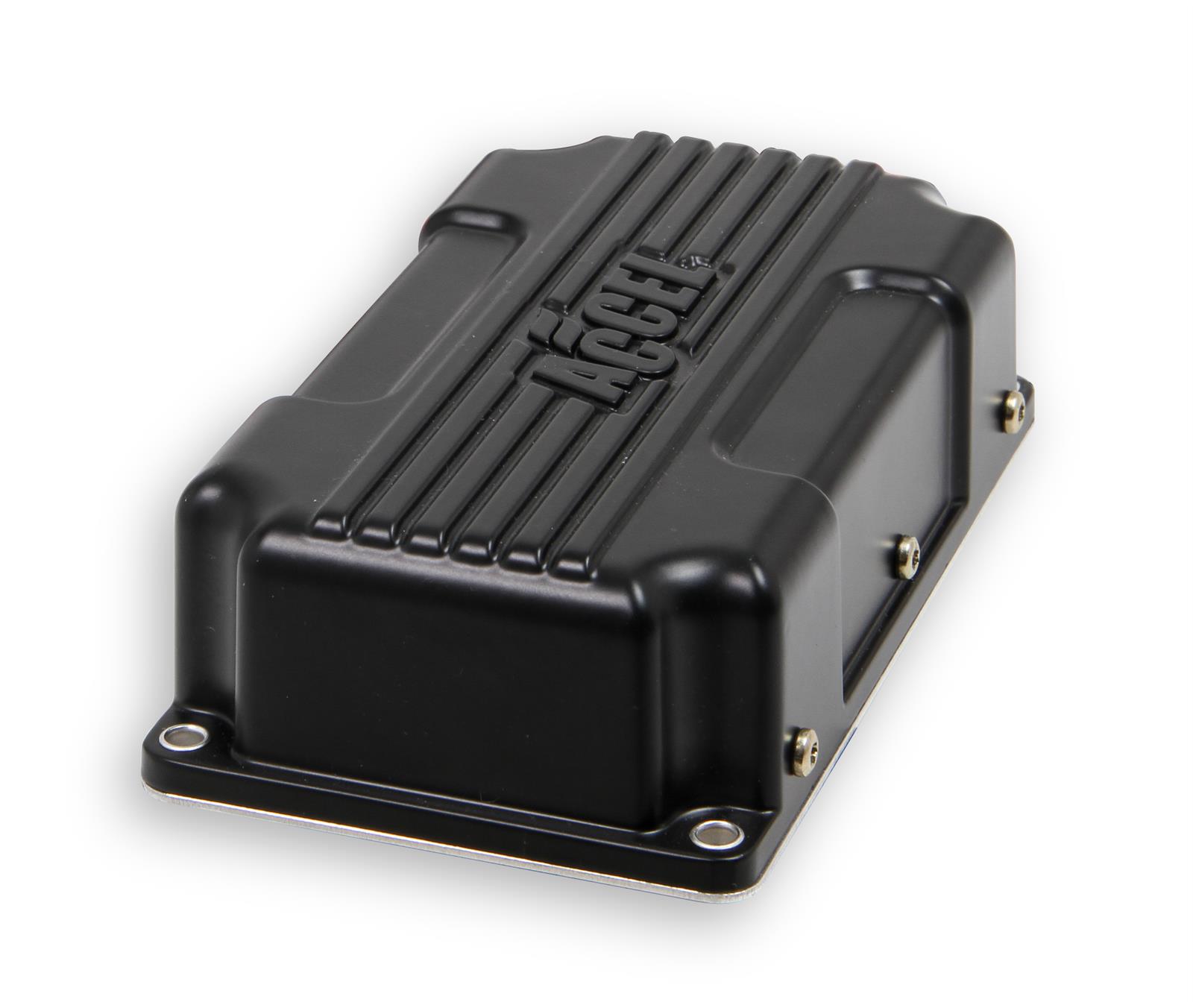

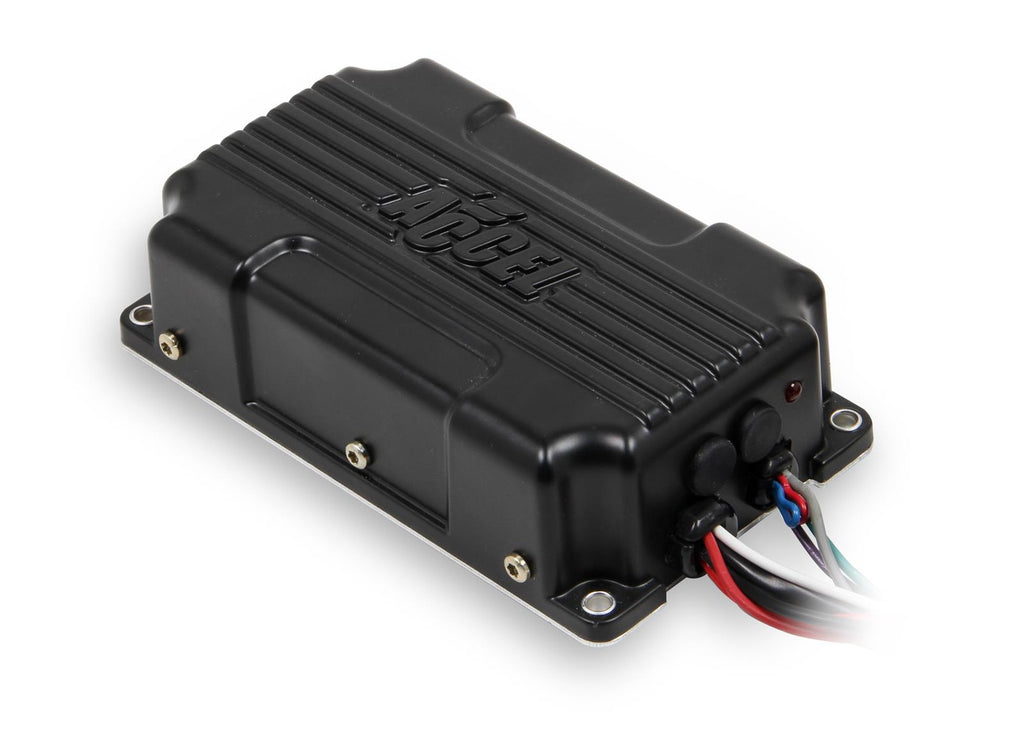

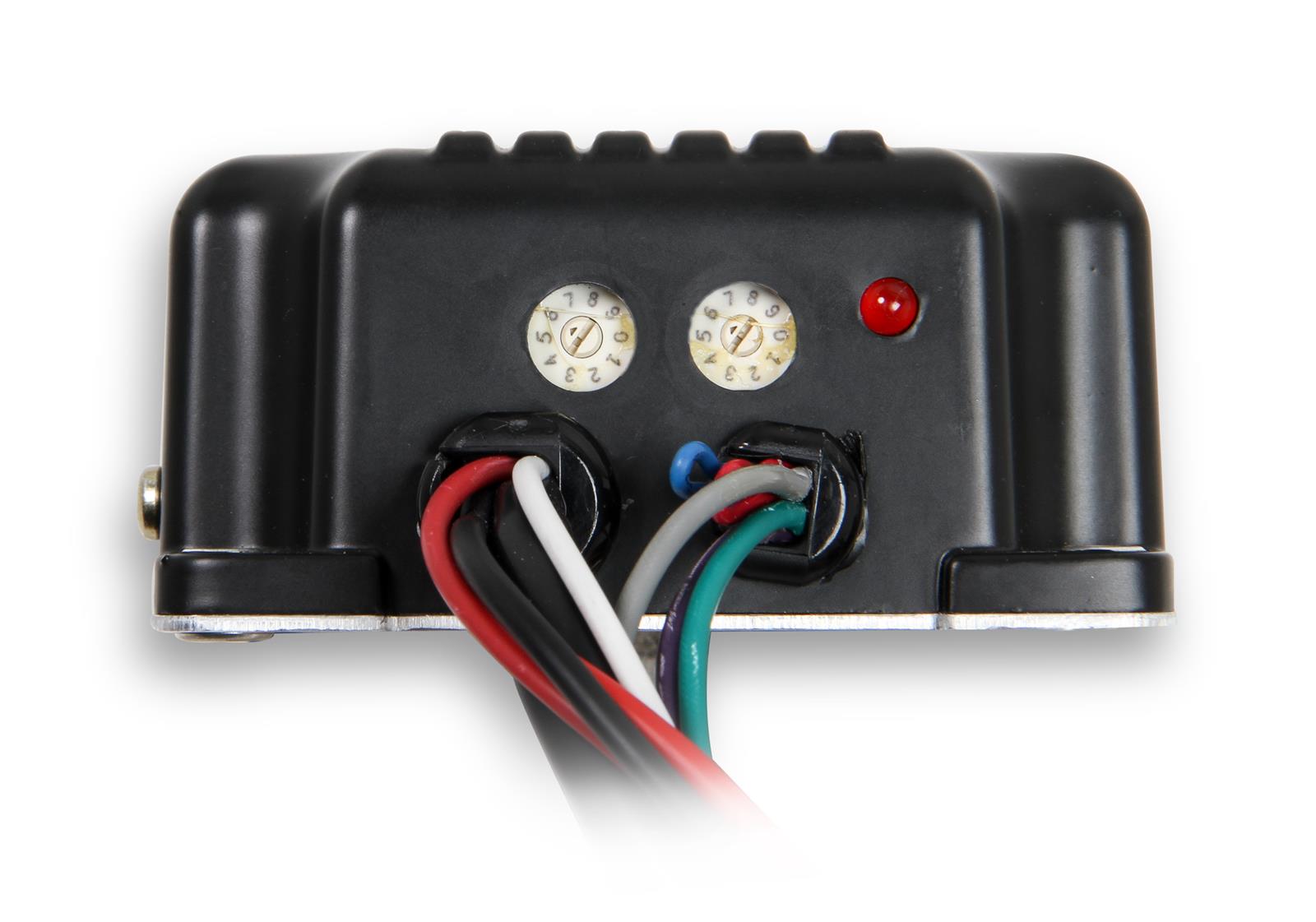

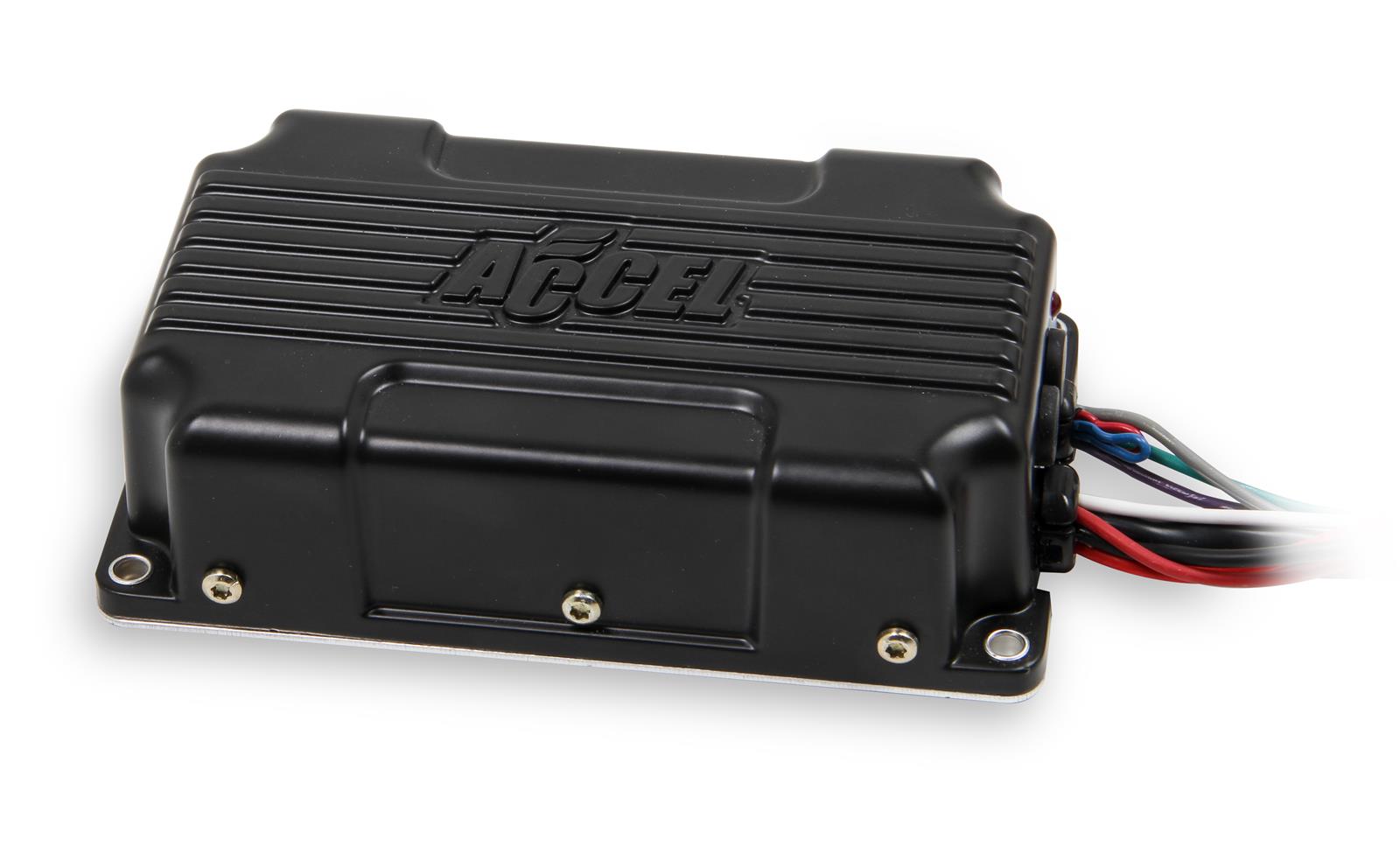

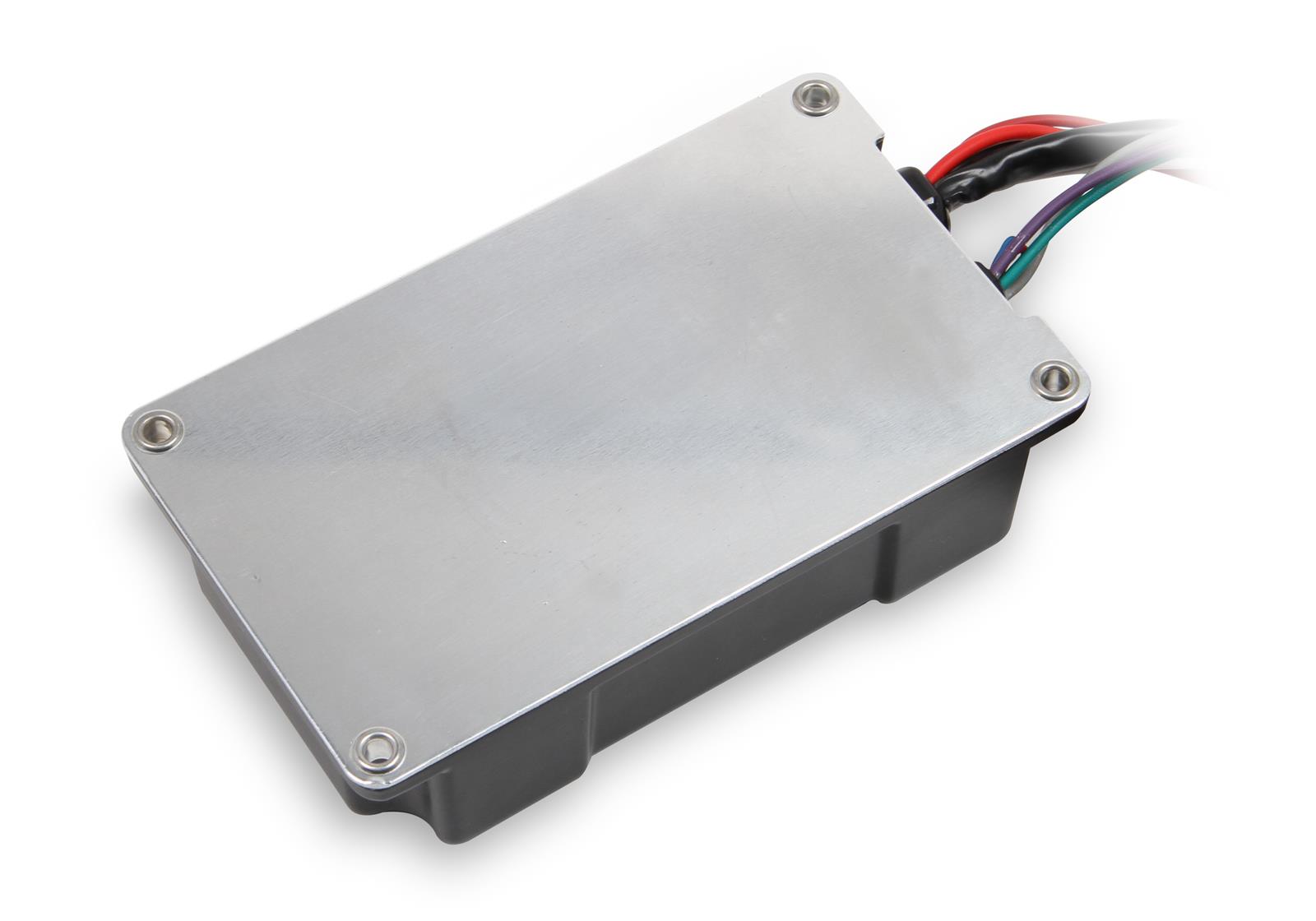

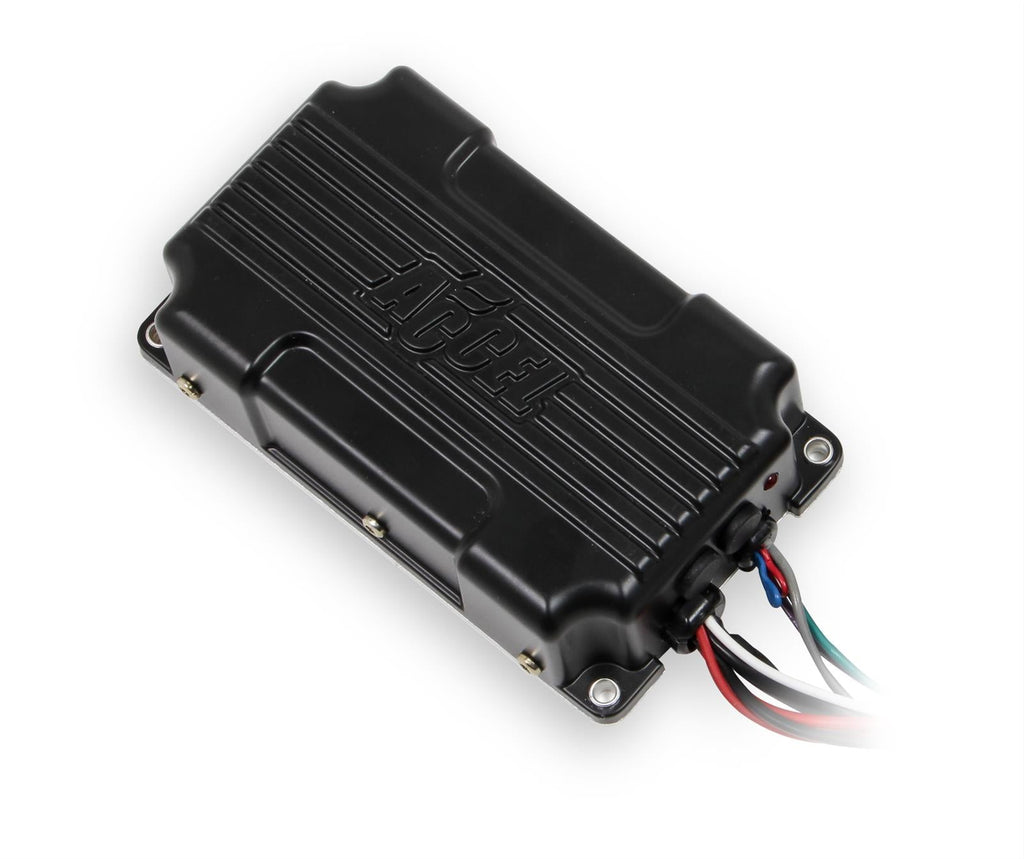

ACCEL SuperBox CD ignition systems provide the perfect blend of value and performance for your street or strip vehicle. Built around durable cast aluminum housings, they can be set for 4, 6, or 8-cylinder applications while easily connecting to points, amplifiers, and magnetic pickup distributors. An adjustable rev limiter on these modern capacitive-discharge ignitions protects the engine in the event of driveline failure or the occasional missed shift. They are also fully adjustable with rotary dials in 100 rpm increments.

Additional details:

* Multiple sparks last through 20 degrees of crankshaft rotation for improved starting, smoother idle, and throttle response
* At low rpm, they fire a series of sparks that ensure better combustion of the air/fuel mixture
* Full power output at high rpm

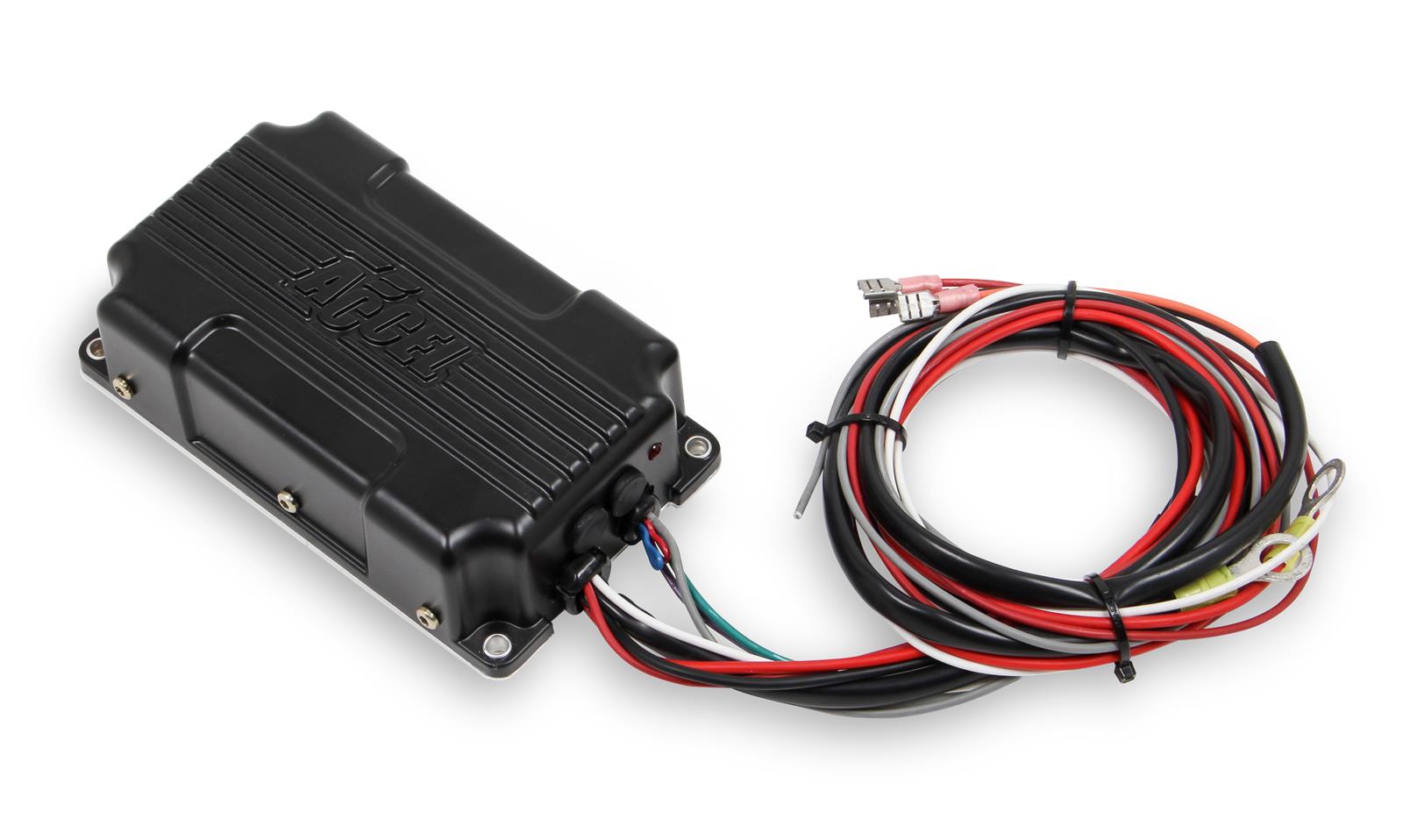

* Accessory harness available for plug-and-play on most applicationsBrand: Accel
Manufacturer's Part Number: 61212
Part Type: Ignition Boxes
Product Line: ACCEL SuperBox CD Ignition Systems
HP Direct Part Number: ACC-61212
UPC: 085132612123
Ignition Box Output: Capacitive discharge
Circuitry: Digital
Rev Limiter: Yes
Timing Retard: None
Data Acquisition: No
Current Draw: 0.7 amps per 1,000 rpm
Spark Output (millijoules): 95 mJ
Minimum Operating Voltage: 10 V
Maximum Operating Voltage: 18 V
Ignition Box Color: Black
Coil Included: No
Quantity: Sold individually.
CARB EO Number(s): D-115-23
Emissions: California EO Approved
