Description

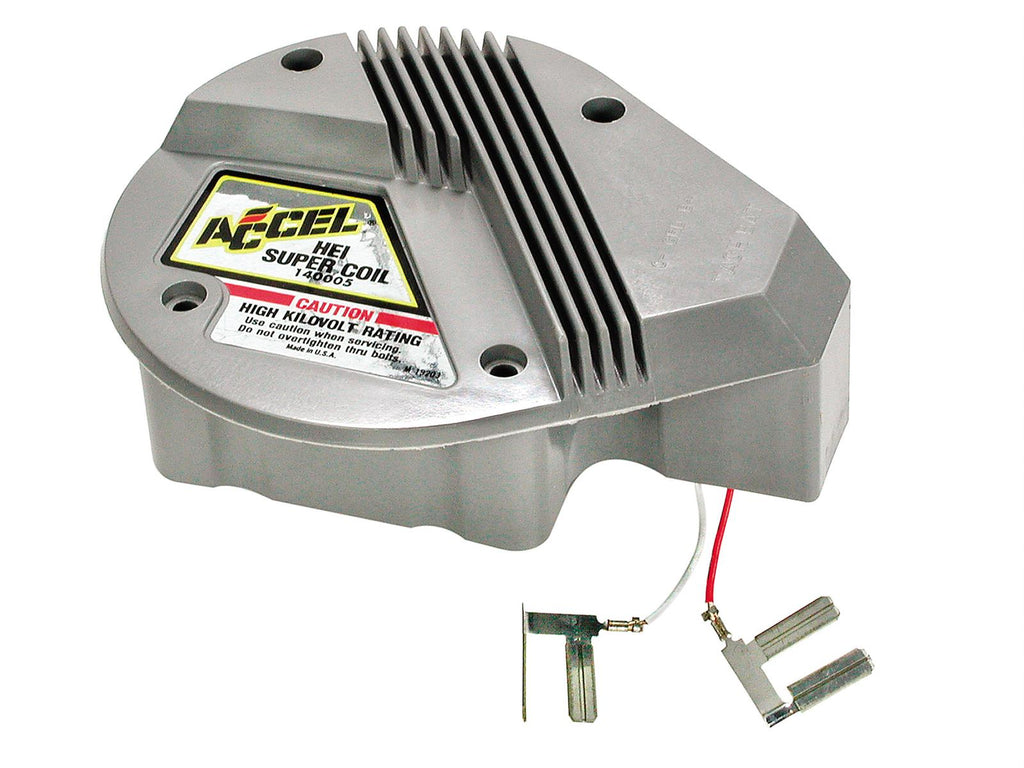

ACCEL HEI in-cap Super Coils provide more high-rpm power and overall performance. Compatible with both original and computer-controlled HEI ignition systems, ACCEL HEI in-cap Super Coils are designed to resist shock and vibration. They have a finned cover that aids cooling, and hardware is included.Brand: Accel
Manufacturer's Part Number: 140005
Part Type: Ignition Coils
Product Line: ACCEL GM HEI In-Cap Super Coils
HP Direct Part Number: ACC-140005
UPC: 743047007006
Coil Style: In-cap
Primary Resistance: 0.500 ohms
Coil Internal Construction: Epoxy
Coil Wire Attachment: HEI in-cap
Coil Color: Gray
Maximum Voltage: 45,000 V
Turns Ratio: 80:1
Secondary Resistance: 8.60K ohms
Mounting Bracket Included: No
Coil Wire Included: No
Ballast Resistor Included: No
Coil Shape: Square
Quantity: Sold individually.
Notes: The stock coil cover will not work. This coil has a red and white primary wire. The red wire has two straight pins.
CARB EO Number(s): D-221-6
Emissions: California EO Approved
Manufacturer's Part Number: 140005
Part Type: Ignition Coils
Product Line: ACCEL GM HEI In-Cap Super Coils
HP Direct Part Number: ACC-140005
UPC: 743047007006
Coil Style: In-cap
Primary Resistance: 0.500 ohms
Coil Internal Construction: Epoxy
Coil Wire Attachment: HEI in-cap
Coil Color: Gray
Maximum Voltage: 45,000 V
Turns Ratio: 80:1
Secondary Resistance: 8.60K ohms
Mounting Bracket Included: No
Coil Wire Included: No
Ballast Resistor Included: No
Coil Shape: Square
Quantity: Sold individually.
Notes: The stock coil cover will not work. This coil has a red and white primary wire. The red wire has two straight pins.
CARB EO Number(s): D-221-6
Emissions: California EO Approved
