Description

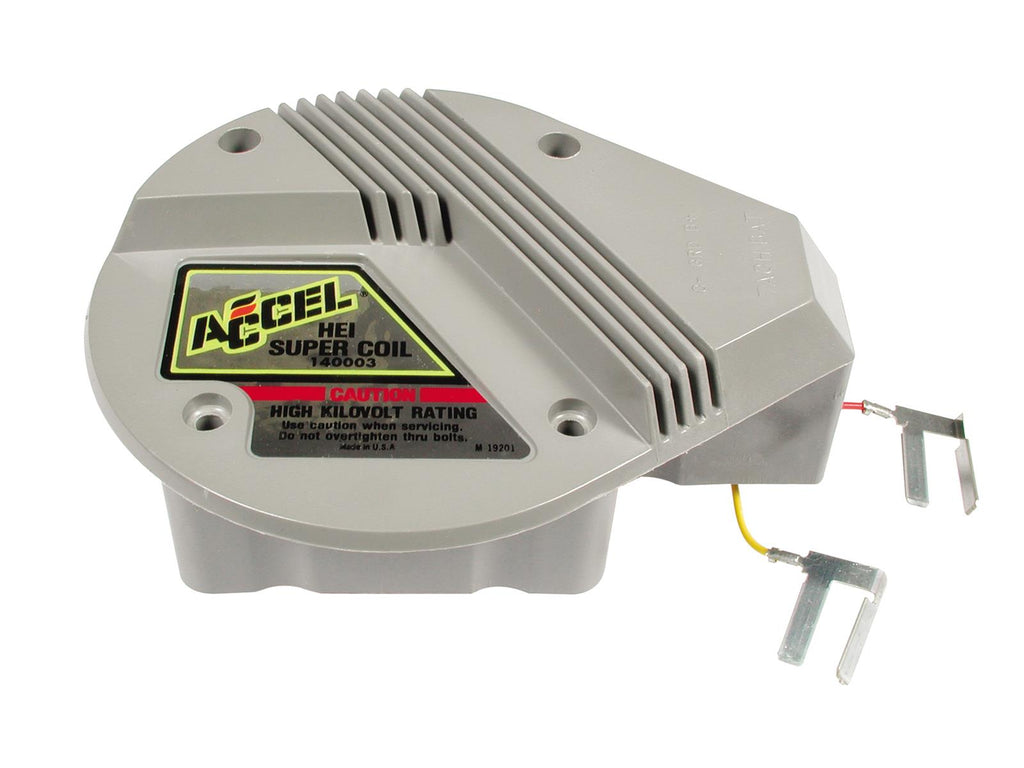

ACCEL HEI in-cap Super Coils provide more high-rpm power and overall performance. Compatible with both original and computer-controlled HEI ignition systems, ACCEL HEI in-cap Super Coils are designed to resist shock and vibration. They have a finned cover that aids cooling, and hardware is included.Brand: Accel
Manufacturer's Part Number: 140003
Part Type: Ignition Coils
Product Line: ACCEL GM HEI In-Cap Super Coils
HP Direct Part Number: ACC-140003
UPC: 743047006993
Coil Style: In-cap
Primary Resistance: 0.500 ohms
Coil Internal Construction: Epoxy
Coil Wire Attachment: HEI in-cap
Coil Color: Gray
Maximum Voltage: 45,000 V
Turns Ratio: 80:1
Secondary Resistance: 8.60K ohms
Mounting Bracket Included: No
Coil Wire Included: No
Ballast Resistor Included: No
Coil Shape: Square
Quantity: Sold individually.
Notes: The stock coil cover will not work. This coil has a red and yellow primary wire. The red wire has one straight pin and a 90-degree bend in the clip pin.
CARB EO Number(s): D-221-6
Emissions: California EO Approved
Manufacturer's Part Number: 140003
Part Type: Ignition Coils
Product Line: ACCEL GM HEI In-Cap Super Coils
HP Direct Part Number: ACC-140003
UPC: 743047006993
Coil Style: In-cap
Primary Resistance: 0.500 ohms
Coil Internal Construction: Epoxy
Coil Wire Attachment: HEI in-cap
Coil Color: Gray
Maximum Voltage: 45,000 V
Turns Ratio: 80:1
Secondary Resistance: 8.60K ohms
Mounting Bracket Included: No
Coil Wire Included: No
Ballast Resistor Included: No
Coil Shape: Square
Quantity: Sold individually.
Notes: The stock coil cover will not work. This coil has a red and yellow primary wire. The red wire has one straight pin and a 90-degree bend in the clip pin.
CARB EO Number(s): D-221-6
Emissions: California EO Approved
